ELITE/ECLAT PARTS MANUAL

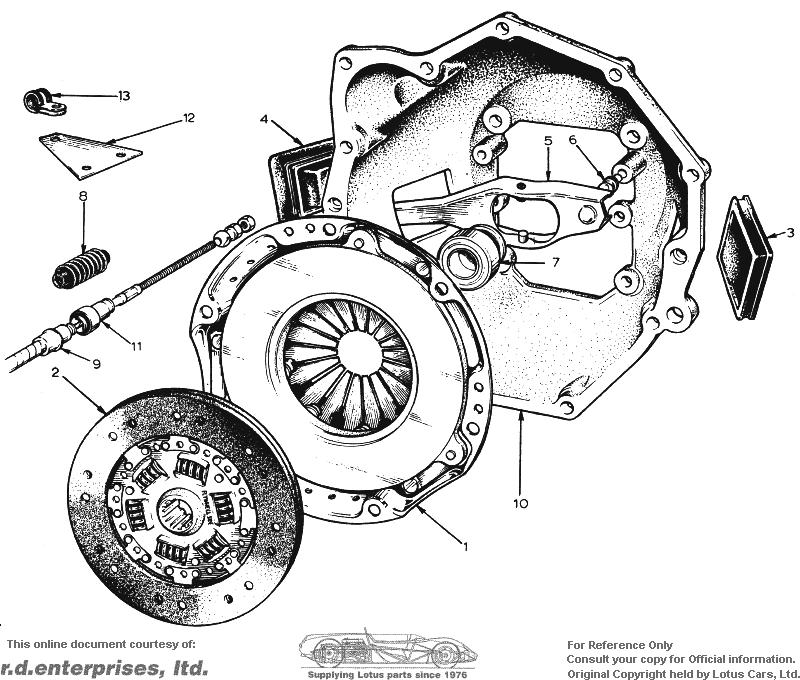

Section QA -- Clutch & Release Mechanism


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
QA 1	Cover Assembly	A907Q01197F	*	*			*		1
	Cover Assembly	A081Q0119F			*	*	*		1
	Setscrew, 5/16" x 2" Cover/Flywheel	A075W1012ZD	*	*	*	*	*		6
	Washer, Spring	A075W4036ZL	*	*	*	*	*		6
QA 2	Friction Plate	A907Q0118EE	*	*	*		*		1				5-Speed Gearbox
	Friction Plate	A076Q6000F		*			*		1				4-Speed Gearbox
	Friction Plate	B083Q0118F			*	*	*		1
QA 3	Grommet, Blanking	A075Q6011ZG	*	*			*		1
QA 4	Grommet, Clutch Fork	A075Q6012ZA	*	*			*		1
	Grommet, Clutch Fork	A083Q6015			*	*	*		1
QA 5	Release Fork	A075Q6009ZH	*	*			*		1
	Release Fork	B081Q4001F			*	*	*		1
QA 6	Pivot Ball, Release Fork	A075Q6010ZB	*	*	*	*	*		1
QA 7	Release Bearlng/Hub Assembly	A075Q6008ZC	*	*			*		1				5-Spead Gearbox
	Release Bearing	A076Q6001F		*			*		1				4-Speed Gearbox
	Hub, Release Bearing	A076Q0080FC		*			*		1				Use with A076Q6001F
	Release Bearing	A081Q6000F			*	*	*		1
QA 8	Boot, Clutch Cable	A075Q6001ZA	*	*	*	*	*		1
QA 9	Cable Assembly, Clutch Release, RHD	B075Q0050WC	*	*	*	*	*			1
	Cable Assembly, Clutch Release, LHD	D075Q0051WA	*	*	*	*	*				1	1
	Adjuster Nut, Clutch Cable	A075Q6002ZF	*	*	*	*	*		1
	Cable Strap	A075W6038ZJ	*	*	*	*	*		1
QA 10	Clutch Housing	A075F0232ZE	*	*	*	*	*	*	1				5-Speed Gearbox
	Clutch Housing	A076FO414K	*	*	*	*	*	*	1				4-Speed GearBox
	Clutch Housing	A083F0232F	*	*	*	*	*	*	1
QA 11	Insulator Bush, Cable Abutment	A075Q0049ZF	*	*	*	*	*	*	1
QA 12	Bracket, Cable Steady	A075Q0054FF	*	*	*	*	*	*	1
	Bracket, Cable Steady	A082Q0054	*	*	*	*	*	*	1
QA 13	'P' Clip, Cable to Sump	A075Q6013ZF	*	*	*	*	*	*	1
	Bolt, M10 x 35, Clutch Housing to Engine	A075W2051ZJ	*	*	*	*	*	*	3
	Bolt, M10 x 40, Clutch Housing to Engine	A075W2052Z	*	*	*	*	*	*	2
	Bolt, M10 x 45, Clutch Housing to Engine	A075W2053ZH	*	*	*	*	*	*	2
	Bolt, M10 x 50, Clutch Housing to Engine	A075W2054ZB	*	*	*	*	*	*	2
	Bolt, M10 x 60, Clutch Housing to Engine	A075W2055Z	*	*	*	*	*	*	2
	Bolt, M10 x 65, Clutch Housing to Engine	A075W2056ZA	*	*	*	*	*	*	3
	Bolt, M10 x 90, Clutch Housing to Engine	A075W2060ZK	*	*	*	*	*	*	2
	Nut Nyloc, M10, Clutch Housing to Engine	A075W3011ZD	*	*	*	*	*	*	X				S1 Qty 5 - S2 Qty 2
	Washer, Plain, 10mm, Clutch Housing to Engine	A075W4024Z	*	*	*	*	*	*	X				S1 Qty 17 - S2 Qty 11
