ELITE/ECLAT PARTS MANUAL

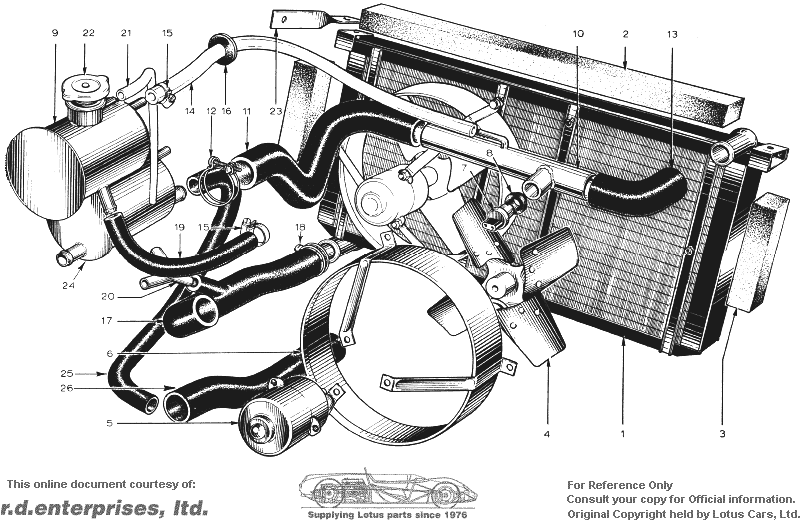

Section KA -- Cooling -- Radiator, Fans, Hoses & Header Tank


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
KA 1	Radlator Assembly (Aluminium)	D075K0105FA	*	*			*	*	1				Cov. Rad. Rep. By E075K0105F
	Radiator Assembly (Copper/Brass)	E075K0105F	*	*	*	*	*	*	1				Marston
	Drain Plug	B075K6011F	*	*	*	*	*	*	1
KA 2 & 3	Foam, Radiator Seal 50 x 50 x 980 mm	A079K4001F	*	*	*	*	*	*	1
	Screws, Radiator/Body	A075W1046ZJ	*	*	*	*	*	*	2
	Penny Washers	A075W4025ZE	*	*	*	*	*	*	2
	Spring Washers	A075W4037ZK	*	*	*	*	*	*	2
	Screws, Top Support/Radiator	A075W1046ZJ	*	*	*	*	*	*	2
	Plain Washer	A075W4024ZL	*	*	*	*	*	*	2
	Spring Washer	A075W4037ZK	*	*	*	*	*	*	2
KA 4	Cooling Fan, 11"	A036KO079ZE	*	*			*	*		1	1	2	2 with Air Condition
KA 5	Cooling Fan Motor	A074M6027ZH	*	*			*	*		1	1	2	2 with Air Condition
KA 6	Cooling Fan Motor Mounting Bracket	A075K0109ZA	*	*			*	*		1	1	2	2 with Air Condition
	Screws, Motor to Bracket	A075W1028ZG	*	*			*	*		3	3	6	6 with Air Condition
	Plain Washers	A075W4013ZL	*	*			*	*		3	3	6	6 with Air Condition
	Nylocs	A075W3009ZE	*	*			*	*		3	3	6	6 with Air Condition
	Screws, Bracket to Radiator	A075W1026ZH	*	*			*	*		3	3	6	6 with Air Condition
	Plain Washers	A075W4013ZL	*	*			*	*		3	3	6	6 with Air Condition
	Spring Washers	A075W4035ZL	*	*			*	*		3	3	6	6 with Air Condition
	Cooling Fan Motor & Blade Assembly	A082K6025F			*	*	*	*		2	2	2	Domestic Heater only - qty &?
	Mounting Bracket and Cowl, Fan Motor	A075K0123F			*	*	*	*		2	2		Domestic Heater only - qty *?
	Mounting Bracket and Cowl, Fan Motor	A079K4174F			*	*	*	*				2	Also Japan
	Washer, 6 x 12, Motor to Mounting	A075W4013Z			*	*	*	*		6	6	6	Domestic Heater only - qty *?
	Nut, Nyloc, M6, Motor to Mounting	A075W3009Z			*	*	*	*		6	6	6	Domestic Heater only - qty *?
	Washer, 6 x 12, Mounting to Radiator	A075W4013Z			*	*	*	*		6	6		Domestic Heater only - qty *?
	Washer, Spring, Mounting to Radiator	A075W4035Z			*	*	*	*		6	6		Domestic Heater only - qty *?
	Screw, M6 x 10, Mounting to Radiator	A075W1026Z			*	*	*	*		6	6		Domestic Heater only - qty *?
	Extension Lead, Reverse polarity	A082M4193F			*	*	*	*		2	2		Domestic Heater only - qty *?
KA 7	Otter Switch, 84G	A036K6026ZH	*	*			*	*	1				Replaced by A079M6137F
	Otter Switch, 80G	A075K6007K	*	*			*	*	1				Replaced by AO79M6136F
	Otter Switch Connector	A036M6415K	*	*			*	*	2
KA 8	Otter Switch Grommet	A036K6027ZB	*	*			*	*	1
	Otter Switch (86/76)	A079M6137F	*	*	*	*	*	*		1	1		Replaced by A079M6200F
	Otter Switch (92/82) Green Coded	A079M62O0F	*	*	*	*	*	*		1	1		Radiator Fans Switching, ? Temperate climates, inclu ? Grommet
	Otter Switch (82/72) Blue Coded	A079M6136F	*	*	*	*	*	*			1	1	Radiator Fans Switching. High Ambient temperatures *? includes Grommet.
	Grommet, Otter Switch	A079M6181F	*	*	*	*	*	*	1
	Clip, Otter Switch retaining	A079M6138F	*	*	*	*	*	*	1
KA 9	Header Tank	C075KO100ZH	*	*			*	*	1				With Heater return connect *?
KA 24	Header Tank	D075K0100FJ	*	*			*	*	1
	Header Tank	A083K0122F	*	*	*	*	*	*	1
	Penny Washers	A075W4017ZJ	*	*	*	*	*	*	3
	Nut, Nyloc	A075W3009ZE	*	*	*	*	*	*	3
KA 10	Water Pipe (280.00mm long)	B075K0102FL	*	*	*	*	*	*	1
	Water Pipe (185.00mm long)	A075K0120FJ	*	*	*	*	*	*	1
KA 25	Hose, Header Tank to Engine	A075K0119FD	*	*	*	*	*	*	1
	Clip, Hose, 16- 25 mm	A079K6018F	*	*	*	*	*	*	2
KA 11	Hose, Engine/Water Pipe	B075K0101Z	*	*	*	*	*	*	1
	Positioning Strap, Top Hose	A075W6038ZJ	*	*	*	*	*	*	1
KA 12	Clip, Hose, 50 mm	A079K6019F	*	*	*	*	*	*	2
KA 13	Hose, Radiator/Water Pipe	B075K0103Z	*	*	*	*	*	*	1
	Clip, Hose, 50 mm	A079K6019F	*	*	*	*	*	*	2
KA 14	Hose, Air Bleed	D075K0113ZL	*	*	*	*	*	*	1
KA 15	Clip, Bleed Hose	A036S6160F	*	*	*	*	*	*	2
KA 16	Grommet, Bleed Hose	X036B6131ZG	*	*	*	*	*	*	1
KA 17	Bottom Hose (with Header Tank Conn)	B075K0104ZB	*	*			*	*	1
KA 18	Hose Clip	A079K6019Z	*	*			*	*	2
KA 19	Hose, Header Tank/V Piece	C075K0112ZJ	*	*			*	*	1
KA 20	Junction Pipet "Y"	A075K0117ZH	*	*			*	*	1
KA 21	Overflow Pipe	A075K0114ZD	*	*	*	*	*	*	1
KA 22	Pressure Cap	A075K6004ZF	*	*	*	*	*	*	1				10 P.S.I.
KA 23	Mounting Bracket	A075K0107ZB	*	*	*	*	*	*	1
KA 26	Bottom Hose (Aluminium Radiator)	A075K0118ZB	*	*			*	*	1
	Bottom Hose (Copper/Brass Radiator)	B075K0118Z	*	*	*	*	*	*	1				25mm shorter than A075K0118ZB
	Clip, Hose, 50 mm	A079K6019Z	*	*	*	*	*	*	2
													If these (Below) parts are fitted t ? air conditioned car after ? manufacture, the follow ? item must also be replac ? Hose, VIR to pump, ? A075P0208F with Hose, ? to Pump A075P0235F on ? Unit Nos 0746A, 0773A ? 0795A, 0848A to 0850A ? 0859A on, 0456B & 0467 ? 0116C on, 0147D, 1070 ? 0173D on, 0114E on, ? 0105F on, all numbers *? inclusive.
	Oil Cooler	A907E1219F	*	*	*	*	*	*	1
	Bracket, right hand	A907E1220F	*	*	*	*	*	*	1
	Bracket, left hand	A907E1221F	*	*	*	*	*	*	1
	Screw, M6 x 16	A075W1028ZG	*	*	*	*	*	*	8
	Washer, Plain, 6mm	A075W4013ZL	*	*	*	*	*	*	12
	Nut, Nyloc, M6	A075W3009ZE	*	*	*	*	*	*	4
	Adaptor, Aux;l;ary Housing	A907E0579F	*	*	*	*	*	*	1
	Sealing Ring, Square Section	A907E6167F	*	*	*	*	*	*	1
	Extension, Threaded, Auxiliary Housing	A907E0571F	*	*	*	*	*	*	1
	Adaptor, Pipe Assembly	A907E6300F	*	*	*	*	*	*	2
	Sealing Washer	B907E6301F	*	*	*	*	*	*	2
	Pipe Assembly, long	B907E1222F	*	*	*	*	*	*	1
	Pipe Assembly, short	B907E1223F	*	*	*	*	*	*	1
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
