ELITE/ECLAT PARTS MANUAL

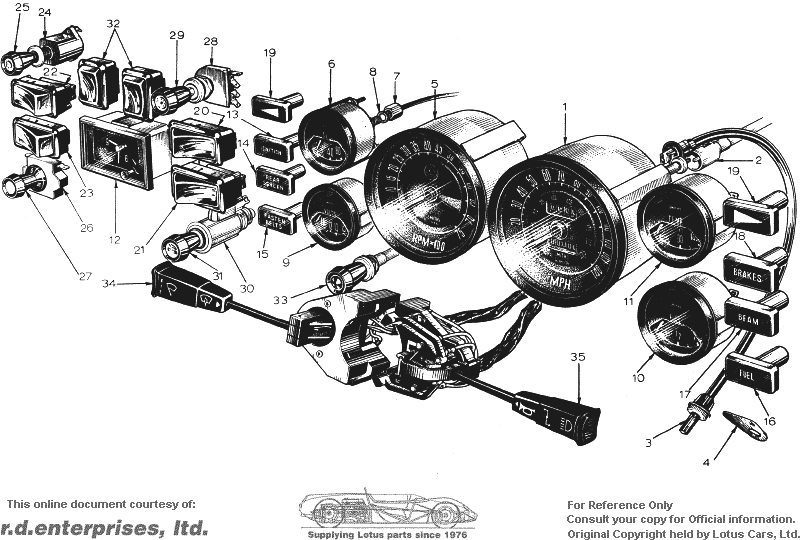

Section MD -- Electrical - Instruments, Switches & Lights


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
MD 1	Speedometer, MPH, Red Needle (960 Revs/Mile)	B075N6001ZG	*	*			5*	*		1		1	3.7 Diff. 5/17T Speedo G *?
	Speedometer, MPH, Red Needle (1060)	A075N6015Z	*	*			5*	*		1		1	4.1 Diff. 5/17T Speedo G *?
	Speedometer, MPH, Red Needle (1000)	A076N6004FG	*	*			5*	*		1		1	3.7 Diff. 5/17T Speedo G *?
	Speedometer, MPH, White Needle (1000)	A075N6029F	*	*			5*	*		1			4.1 Diff. 5/18T Speedo G *?
	Speedometer, MPH, Red Needle (1000)	A076N6004FG		*			4*			1		1	3.7 Diff. 6/20T Speedo G *?
	Speedometer, MPH, Red Needle (1060)	A075N6015Z		*			4*			1		1	4.1 Diff. 6/20T Speedo G *?
	Speedometer, 85 MPH	A075N6030F	*	*			5*	*				1	3.7:17T, 4.1:18T
	Speedometer, KPH, Red Needle (587.5)	B075N6002ZA	*	*			5*	*			1		3.7 Diff. 5/17T Speedo G *?
	Speedometer, KPH, Red Needle (660)	A075N6016FB	*	*			5*	*			1		4.1 Diff. 5/17T Speedo G *?
	Speedometer, KPH, Red Needle (620)	A076N6003F	*	*			5*	*	*			1	0,R/B A079N6033F, 3.7:1 R/B A079N6033F, 4.1:1
	Speedometer, KPH, White Needle	A075N6032F	*	*			5*	*			1		R/B A079N6033F, 3.7:1 R/B A079N6033F, 4.1:1
	Speedometer, KPH, White Needle (625)	A079N6033F	*	*			5	*			1		R/B A079N6033F, 3.7:1 R/B A079N6033F, 4.1:1
	Speedometer, KPH, Red Needle, (620)	A076N6003F		*			4*				1		3.7 Diff. 6/20T Speedo G *?
	Speedometer, KPH, Red Needle, (660)	A075N6016FB		*			4*				1		4.1 Diff. 6/20T Speedo G *?
	Speedometer, 140 MPH	A075N6029F			*	*	*	*		1			White Illumination
	Speedometer, 170 MPH	A079N6032F			*	*	*	*		1			White lllumlnation
	Speedometer, 170 MPH	A082N6040F			*	*	*	*		1			Green Illumination
	Speedometer, 220 KPH	A075N6032F			*	*	*	*			1		Replaced by A079N6033F
	Speedometer, 265 KPH	A079N6033F			*	*	*	*			1		White Illumination
	Speedometer, 260 KPH	A082N6041F			*	*	*	*			1		Green Illumination
MD 2	Speedo Cable	B075N6009ZG	*	*			*	*	1
	Speedo Cable	A083N6033F			*	*	*	*	1
MD 3	Trip Reset Cable	X054N6009ZD	*	*			*	*	1				Early cars only
MD 4	Bracket, trip Reset Cable	A054BI463ZL	*	*			*	*	1				Early cars only
MD 5	Tachometer, red needle	A075N6003ZF	*	*			*	*	1
	Tachometer, white needle	A079N6022F	*	*	*	*	*	*	1				White illumlnatlon
	Tachometer, white needle	A082N6042F			*	*	*	*	1				Green illumination
	Clamp, Tacho Retaining	B075N0032Z	*	*	*	*	*	*	1
	Bracket, Speedo/Tacho	A075N0033Z	*	*			*	*	1
MD 6	Oil Pressure Gauge, red needle	A075N6007ZD	*	*			*	*	1
	Oil Pressure Gauge, white needle	A079N6026F	*	*	*	*	*	*	1				White illumination
	Oil Pressure Gauge, white needle	A082N6046F			*	*	*	*	1				Green illumination
MD 7	Pipe, Oil Pressure Gauge	B026N0003ZB	*	*	*	*	*	*	1
MD 8	Washer, Cork, Oil Pipe	A036N6000ZD	*	*	*	*	*	*	1
MD 9	Battery Cendition Gauge, red needle	A075N6008ZJ	*	*			*	*	1
	Battery Condition Gauge, white needle	A079N6025F	*	*	*	*	*	*	1				White illumination
	Battery Condition Gauge, white needle	A082N6045F			*	*	*	*	1				Green illumination
MD 10	Fuel Gauge, red needle	A076N6005FA	*	*			*	*	1
	Fuel Gauge, white needle	A079N6024F	*	*	*	*	*	*	1				White illumination
	Fuel Gauge, white needle	A082N6044F			*	*	*	*	1				Green illumination
	Fuel Gauge, 'unleaded', red needle	A076N6006FF	*	*			*	*				1
	Fuel Gauge, 'unleaded', white needle	A075N6031F	*	*			*	*				1	White illumination
	Fuel Gauge, 'unleaded', white needle	A082N6048F	*	*			*	*				1	Green illumination
MD 11	Water Temperature Gauge, red needle	A075N6006ZK	*	*			*	*	1
	Water Temperature Gauge, white needle	A079N6023F	*	*	*	*	*	*	1				White illumination
	Water Temperature Gauge, white needle	A082N6043F			*	*	*	*	1				Green illumination
	Thermal Transmitter, Temperature Gauge	A050M6136F	*	*	*	*	*	*	1
	Voltage Stabilizer	A050M6096ZE	*	*			*	*	1				Up to intro, of 'white ne *? Instruments
	Voltage Stabilizer	A079N6027F	*	*	*	*	*	*	1
MD 12	Clock, Time	B075N6005Z	*	*			*	*	1
	Clock, Digital	A083M6217F			*	*	*	*	1
	Bracket, Clock Mounting	A083U1200K			*	*	*	*	1
	Nut, 10UNF, Bracket Fix	A075W3013F			*	*	*	*	1
	Protection Kit, Clock	A083M0395W			*	*	*	*	1				Inc. Relay, Dinde, Cap
MD 13	Ignition Warning Lamp	A075M6055ZD	*	*			*	*	1
MD 14	Rear Screen Heater Warning Lamp	A075M6008ZL	*	*			*	*	1
MD 15	Fasten Belts Warning Lamp	A074M6013Z	*	*			*	*	1				Not Australia
MD 16	Low Fuel Warning Lamp	A075M6053ZE	*	*			*	*	1
MD 17	Main Beam Warning Lamp	A075M6054ZK	*	*			*	*	1
MD 18	Brakes Warning Lamp	A075M6056ZJ	*	*			*	*	1
	Parking Brake Warning Lamp	A075M6202F	*	*			*	*					Australia only. Jump loc *? A075M0337F
MD 19	Turn Warning Lamp - Green	A075M6052ZL	*	*			*	*	2				Except Germany
	Turn Warning Lamp - Red	A075M6042Z	*	*			*	*			2		Germany only
	Warning Lamp Assembly, right hand	A082N4004F			*	*	*	*		1	1
	Warning Lamp Assembly, right hand	A082N4006F			*	*	*	*				1
	Warning Lamp Assembly, left hand	A082N4005F			*	*	*	*	1				Without 'Hazard' warning
	Warning Lamp Assembly, left hand	A082N4008F			*	*	*	*	1				With 'Hazard' warning an *? combined Fuel/Choke
	Screw, Warning Lamp Fixing	A075W5015Z			*	*	*	*	4
MD 20	Hazard Warning Switch	A075M6031ZE	*	*			*	*	1
	Hazard Warning Switch	A075M6213F			*	*	*	*	1
MD 21	Heated Rear Screen Switch	A075M6010ZK	*	*			*	*	1
	Heated Rear Screen Switch	A075M6212F			*	*	*	*	1
MD 22	Rear Screen Washer Switch	A075M6016ZG	*				*	*	1
	Rear Screen Washer Switch	A075M6208F			*		*	*		1	1
MD 23	Rear Screen Wiper Switch	A075M6017ZA	*				*	*	1
	Rear Screen Wiper Switch	A083M6307J			*		*	*		1	1
MD 24	Light Switch C/W Bezel	AO50M6219WC	*	*			*	*	1
MD 25	Light Switch Knob	A036B6008Z	*	*			*	*	1
	Light Switch	B079M6134			*	*	*	*		1	1
	Light Switch	A079M6170J			*	*	*	*				1
	Clip, Bulbholder, Light Switch	A079M6135F			*	*	*	*	1
MD 26	Fan Speed Switch, Rotary	A075M6033ZD	*				*	*	1				Replaced by A075M6172F ? Knob A075M0320F (Heate ? or A075M0319F (ACU). Connect as follows: 1 - orange, 3 -yellow/pu *? 4 - yellow/brown, 5 - green/yellow
	Screw, Fan Speed Switch	A075M6067ZJ	*				*	*	1
	Fan Speed Switch, Rocker, 2 Speed	A076M6003Z		*			*	*	1
MD 27	Fan Speed Knob & Bezel Assembly	A075M0245WG	*				*	*	1
	Fan Speed Switch - Heater	A075M6172F	*		*	*	*	*	1				From Unit Nos. 0728A, 0 ? to 0797A, 0806A on, 0115C ? Inc.
	Knob Assembly	A075M0320F	*				*	*	1				From Unit Nos. 0728A, 0 ? to 0797A, 0806A on, 0115C ? Inc.
	Knob	A082P6023F			*	*	*	*	1
	Fan Speed Switch - Air Conditioning	A075M6169F	*	*			*	*	1				From Unit Nas. 0746A, 0 ? to 0795A, 0848A to 0850A ? 0859A on, 0456B & 0467B ? 0456B & 0467B on, 0116 o ? 0147D, 0170D & 0173D o ? 0114E, 0125E, 0126 & 01 ? on, 0105F & 01071: on, A *?
	Knob Assembly	A075M0319F	*	*			*	*	1				From Unit Nas. 0746A, 0 ? to 0795A, 0848A to 0850A ? 0859A on, 0456B & 0467B ? 0456B & 0467B on, 0116 o ? 0147D, 0170D & 0173D o ? 0114E, 0125E, 0126 & 01 ? on, 0105F & 01071: on, A *?
	Fan Speed Switch - Air Conditioning	A083M6258F			*	*	*	*	1
	Knob, Fan Switch	A082P6023F			*	*	*	*	1
	Tubing, Plastic, 4mm I/D, knob Fix	A050M6164V			*	*	*	*	1				22mm length
	'D' Insert, Knob Fix	A083M6278F			*	*	*	*	1
MD 28	Panel Light Rheostat C/W Bezel	A075M6032ZK	*	*			*	*	1
MD 29	Knob, Panel Light Rheostat	A074M0227ZG	*	*			*	*	1
	Panel Light Rheostat	A083M6220F			*	*	*	*	1
	Knob, Panel Light Rheostat	A083M6259			*	*	*	*	1
MD 30	Cigar Lighter, Outer	A036M6031ZL	*	*			*	*	1
MD 31	Cigar Lighter, Inner	A036M6032ZE	*	*			*	*	1
	Cigar Lighter, inner and outer	A079M6123F			*	*	*	*	1
	Illumination Ring, Cigar Lighter	A079M6124F			*	*	*	*	1
MD 32	Window Switches	A075M6058ZH	*	*			*	*	2
	Window Switch	B079M6068F			*	*	*	*		2	2
	Clip, Switch Fixing	A079U4567F			*	*	*	*	2
MD 34	Wipe - Wash Switch, LHS of Column Symbols	A075M6073F	*	*			*	*	1				Male Pins in Female Conn *? Block
	Wipe - Wash Switch, LHS of Column Symbols	B075M6073ZF	*	*	*	*	*	*	1				Female Pins in Male Conn *? Block
	Wipe - Wash Switch, LHS of Column Script	A075M6050Z	*	*			*	*	1				Male Pins in Female Conn *? Block
	Wipe - Wash Switch, RHS of Column Script	B075M6050Z	*	*			*	*	1				Male Pins in Female Conn *? Block
	Wipe - Wash Switch, RHS of Column Script	C075M6050Z	*	*	*	*	*	*	1				Female Pins in Male Conn *? Block
MD 35	Dip, Horn, Indicator Switch. RHS of Column - Symbols	C075M6072Z	*	*	*	*	*	*		1	1		Male Pins in Female Conn *? Block
	Dip, Horn, Indicator Switch. RHS of Column - Script	C075M6049Z	*	*			*	*				1	Male Pins in Female Conn *? Block
	Dip, Horn, Indicator Swltch. LHS of Column - Script	D075M6049Z	*	*	*	*	*	*				1	Male Pins in Female Conn *? Block
	Clamp, Switch to Steering Column	B075M6051Z	*	*	*	*	1						Possible manual error ?
	Spacer, Switch to Column	B079M4017F	*	*	*	*	*	*	1
	Screw, Wipe Switch/Clamp	A075M6074ZL	*	*	*	*	*	*	2
	Screw, Dip Swltch/Clamp	A075M6075ZE	*	*	*	*	*	*	2
	Striker, Indicator cancelling	A075M6038Z	*	*	*	*	*	*	1
	Mirror Changeover Switch	A079M6112F	*	*			*	*	2				'Lever' Type
	Mirror Changeover Switch	A075M0339F	*	*	*	*	*	*	2				'Rocker'Type
	Rear Fog Light Switch	A075M6236F	*	*			*	*	1				Where fitted
	Rear Fog Light Switch	A075M6206J			*	*	*	*		1	1
	Rear Interior Light Switch. Script	A075M6210F		*		*	*	*	1
	Rear Interior Light Switch. Symbol	A084M6018J				*	*	*		1	1
	Headlight Wash Switch	A075M6207J				*	*	*				1
	Light Source, Fibre Optics	B079M6099F			*	*	*	*	1
	Bulb, Light Source	A075M6216F			*	*	*	*	1
	Light Guide, Fibre Optic	B079M6098F			*	*	*	*	5/4				Elite qty 5, Eclat qty 4
	Clip, Light Guide	A079M6100F			*	*	*	*	5/4				Elite qty 5, Eclat qty 4
