Elite/Eclat Parts Manual -- Section E75

ELITE/ECLAT PARTS MANUAL

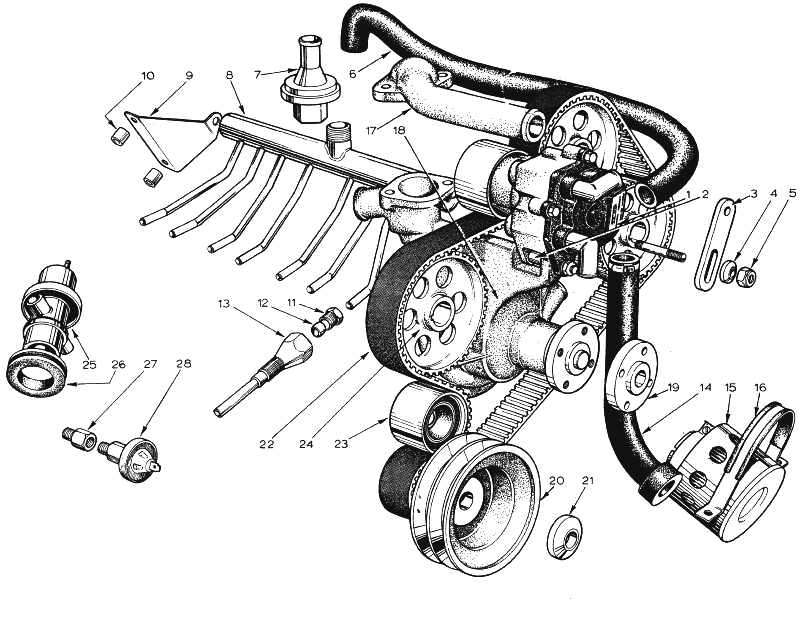

Section E75 -- Engine (907) - Air Pump, Air Injection System


PLATE Ref. No.	DESCRIPTION	PART NO.				REMARKS
E75/1	Air Pump Assy.	C907E6232F	*	*	1
	Bolt Mtg. Air Pump	A075W2048Z	*	*	1
E75/2	Spacer	A907E1046F	*	*	1
	Washer Spring	A075W4036Z	*	*	1
	Washer	A907E1047F	*	*	1
E75/3	Strap Air Pump Adjusting	B907E1051F	*	*	1
E75/4	Washer	A907E0688Z	*	*	1
	Nut	A075W3010Z	*	*	1
	Screw	A075W1013Z	*	*	1
E75/5	Nut	A075W3016Z	*	*	1
E75/6	Hose Air Output	A907EI151F	*	*	1
Not Illus.	Clip Air Output Hose	A075W6210F	*	*	1	Non return valve end
Not Illus.	Clip Air Output Hose	A907E6229D	*	*	1	Pump end
E75/7	Non return Valve	A907E6237F	*	*	1
E75/8	Air Rail Assy.	A907EI020F	*	*	1
E75/9	Mtg. Brkt. Air Rall Rear	B907E1O32F	*	*	1
	Mtg. Brkt. Air Rall Front	B907E1031F	*	*	1
	Bolt Mtg.Brkt. to Rall	A075W1029Z	*	*	2
	Washer Star	A075W4046Z	*	*	2
	Washer Plain	A075W4015Z	*	*	2
Not Illus.	Bolt Mtg. Brkt. to Cam Cover	A075W2100Z	*	*	4
E75/10	Spacer Mtg. Brkt. to Cam Cover	A907E0696F	*	*	4
E75/11	Nut Air Rail/injector	A907E6235F	*	*	8
E75/12	Olive Air Rail/Injector	A907E6236F	*	*	8
E75/13	Air Injector	B907E1020F	*	*	8
E75/14	Hose Air Pump Intake	A907E1099F	*	*	1
	Clip	A075W6212Z	*	*	1
E75/15	Air Cleaner Assy. Air Pump	A907E6258F	*	*	1
E75/16	Clamp Air Cleaner	X046M6151Z	*	*	1
Not Illus.	Pad	A907E1100F	*	*	1
	Screw	A075W1030Z	*	*	2
	Washer	A075W4017Z	*	*	2
	Nut	A075W3009Z	*	*	2
E75/17	Water Outlet Pipe	A907E1066F	*	*	1
E75/18	Water Pump Assy.	B907E0851J	*	*	1
Not Illus.	Hose Manifold to Pump	A907E1065F	*	*	1
E75/19	Spacer Water Pump Boss	A907E0573Z	*	*	1	Air Cond. Only
Not Illus.	Spacer Water Pump Boss	A907E0670Z	*	*	1	P.A.S.
E75/20	V. Pulley Std	A907E1150F	*	*	1	2 Groove
Not Illus.	V. Pulley P.A. and or Air Cond.	A907E0661Y	*	*	1	3 Groove
Not Illus.	Bolt "V" Pulley Securing	A907E1020F	*	*	1
E75/21	Washer Special	B907E1106F	*	*	1
Not Illus.	Belt "V" Water Pump Drive	A907E6270F	*	*	1	Std
Not Illus.	Belt "V" Alternator Drive	A907E6271F	*	*	1	Std
Not Illus.	Belt "V" Alternator Drive	A907E6199Z	*	*	1	P.A.S. and or Air Cond.
Not Illus.	Belt"V" Water Pump and P.A.S. Drive	A907E6201F	*	*	1	All P.A.S. Cars
Not Illus.	Belt "V" Compressor Drive	A907E059OZ	*	*	1	All Air Cond. Cars
E75/22	Toothed Belt	B907E1050F	*	*	1	137 Teeth
E75/23	Idler Pulley Assy.	A907E6249F	*	*	1
Not Illus.	Stud	A907E1034F	*	*	1
	Concentric Hub	A907E1033F	*	*	1
Not Illus.	Nut	A075W3011Z	*	*	1
Not Illus.	Washer	A075W4024Z	*	*	1
E75/24	Toothed Pulley	F907E0309F	*	*	3
E75/25	Valve Assy. Anti Run On.	A075L6024F	*	*	1
E75/26	Grommet. Valve to Air Box	A075P6021Z	*	*	1
Not Illus.	Tubing	A075L0150F	*	*	1
Not Illus.	Elbow	X036J0135Z	*	*	1
E75/27	Tee Piece	X036J6068Z	*	*	1	Male, Female, Female
Not Illus.	Loam A.R.O.V.	A075M0298F	*	*	1
E75/28	Pressure Switch	A075M6132Z	*	*	1
Not Illus.	Adaptor Vacuum Take Off	A026E0367Z	*	*	1
Not Illus.	Ignition Switch	C075H6008F	*	*	1
Not Illus.	Distributor Assy.	A907E0855F	*	*	1
Not Illus.	Carburettor Assy. Front	C907E0791F	*	*	1
Not Illus.	Carburettor Assy. Rear	C907E0792F	*	*	1
Not Illus.	Air Box Backplate Assy.	C907E0655Z	*	*	1
Not Illus.	Air Induction Tube	C907E1089J	*	*	1
Not Illus.	Clip Air Induction Hose	X036L6002Z	*	*	1
Not Illus.	Screw. Hose Flange to Nose Beam	AX75W5042Z	*	*	4
Not Illus.	Air Intake Grille Cold	A907EI091F	*	*	1
Not Illus.	Flange Air Induction Hose	A907E1084F	*	*	1
Not Illus.	Fixing.Push on	A075W6023Z	*	*	4
Not Illus.	Heat Shield L.H. Engine Mtg.	B907E1041F	*	*	1
Not Illus.	Support Brkt. Heat Shield	A907El108K	*	*	1
