Elite/Eclat Parts Manual -- Section EA

ELITE/ECLAT PARTS MANUAL

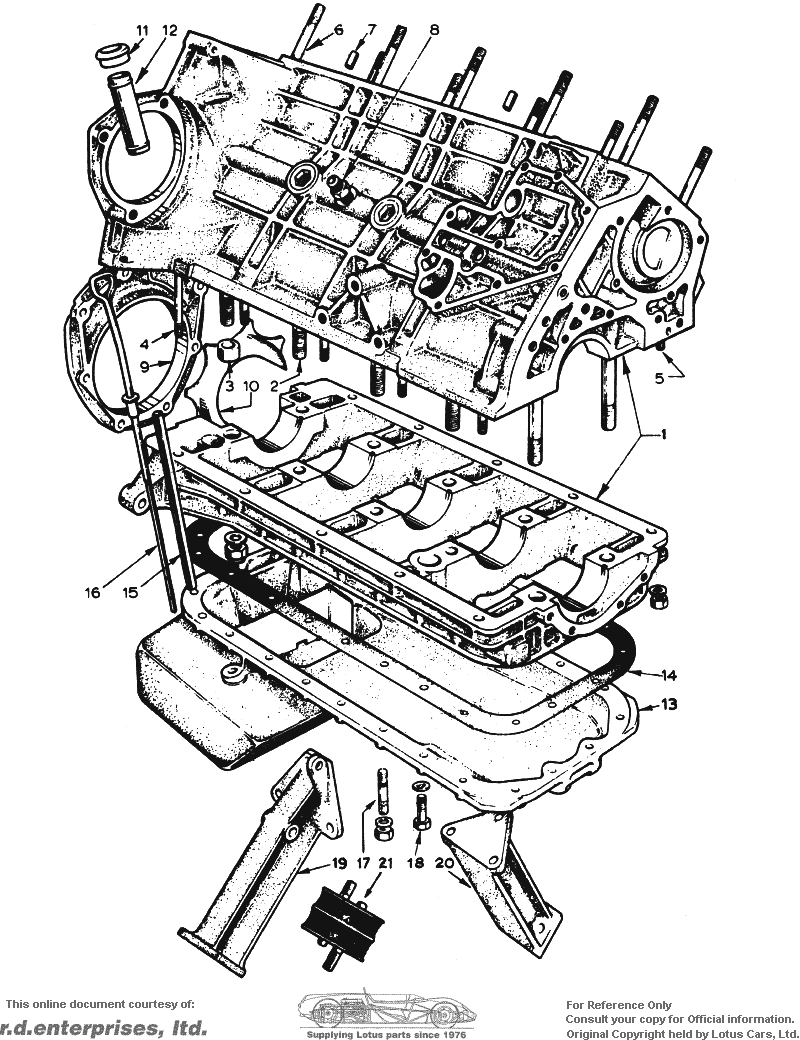

Section EA -- Engine (907) - Block


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
EA 1	Cylinder Block & Main Bearing Housing Assy	B907E0708S	*	*	*	*	1
EA 2	Stud	A907E0225ZA	*	*	*	*	10
	Washer, Plain	A907E0031ZF	*	*	*	*	10
	Nut	A075W3025ZH	*	*	*	*	10
EA 3	Dowel	A907E0320ZE	*	*	*	*	2
EA 4	Stud	A907E0491Z	*	*	*	*	2				Long
EA 5	Stud	A907E0226ZF	*	*	*	*	8				Short
	Washer, Plain	A075W4020Z	*	*	*	*	10
	Nut	A075W3021ZK	*	*	*	*	10
EA 6	Stud	A907E0224ZG	*	*	*	*	10
Not Illus	Socket Plug	A907E0528ZD	*	*	*	*	3				1" NPTF
Not Illus	Socket Plug	A907E6063ZE	*	*	*	*	1				Ľ" BSP
EA 7	Spring Dowel	A907E6007ZL	*	*	*	*	2
EA 8	Union, Oil Press Gauge	907E0625ZG	*	*	*	*	1
EA 9	Housing, RearSeal	A907E0599YC	*	*	*	*	1
Not Illus	Gasket, Housing, Rear Seal	A907E0671ZF	*	*	*	*	1
Not Illus	Rear Seal	A907E0631ZD	*	*	*	*	1
Not Illus	Cover, Oil Gallery	A907E0441YC	*	*	*	*	1
Not Illus	Gasket, Cover to Block	A907E0438ZC	*	*	*	*	1
	Lower End Gasket Set	B907E0808WE	*	*	*	*	1
	Screw, Posi 6mm x 25	AO75W5089ZC	*	*	*	*	8				Housing to Block
	Washer	AO75W4013ZL	*	*	*	*	8
EA 10	Spray Shield	A907E0662ZC	*	*	*	*	1
EA 12	Spout, Breather	B907E0626ZE	*	*	*	*	1
EA 11	Bush, Breather Spout	A907E0659ZA	*	*	*	*	1
EA 13	Oil Sump	A907E0600Y	*	*	*	*	1
Not Illus	Drain Plug	A036R6014ZL	*	*	*	*	1
Not Illus	Washer	A075W4057ZL	*	*	*	*	1
EA 14	Gasket, Sump	A907E0630ZK	*	*	*	*	1
EA 15	Tube Dipstick	B907E0633ZG	*	*	*	*	1
EA 16	Dipstick	B907E0632ZB	*	*	*	*	1
EA 17	Stud	A907E0139ZJ	*	*	*	*	10
EA 18	Bolt	AO75VV2027ZK	*	*	*	*	10				Sump to Main Bearing Hsg.
	Bolt	A075W2030ZC	*	*	*	*	4
	Washer, Plain	A075W4013ZL	*	*	*	*	24
	Nut	A075W3009ZE	*	*	*	*	10
EA 19	Engine Mount R .H.	A907E0616Z	*	*	*	*	1
EA 20	Engine Mount L.H.	A907E0617Z	*	*	*	*		1	1
	Engine Mount, L.H.	C907E0617Z	*	*	*	*				1
	Bolt	AO75W2037ZE	*	*	*	*	6
	Washer, Spring	AO75W4036ZE	*	*	*	*	6
EA 21	Rubber Mount	A907E6174ZA	*	*	*	*	2
	Nut	AO75W3040ZF	*	*	*	*	2
	Washer, Plain	AO75W4020ZB	*	*	*	*	2
Not Illus	Heat Shield, Rubber Mount	A907E1041F	*	*	*	*				1	Not 1974 Spec.
	Support	A907E 1108FB	*	*	*	*				1	Not 1974 Spec.
	Washer, Plain	AO75W4021ZG	*	*	*	*				1	Not 1974 Spec.
	Washer, Spring	AO75W4036ZE	*	*	*	*				1	Not 1974 Spec.
	Screw	AO75W1036ZC	*	*	*	*				1	Not 1974 Spec.
Not Illus	Hose	B907E0636ZL	*	*	*	*	1				Breather Spout to Air Box
Not Illus	Clip	A907E6180Z	*	*	*	*	1				Hose Securing, Spout End
Not Illus	Clip	AO75J6225Z	*	*	*	*	1				Hose Securing, Airbox End
	Sealing Compound- Socket Plugs	A907E6252V	*	*	*	*	AR
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
