Ref. No. |  |  | |||

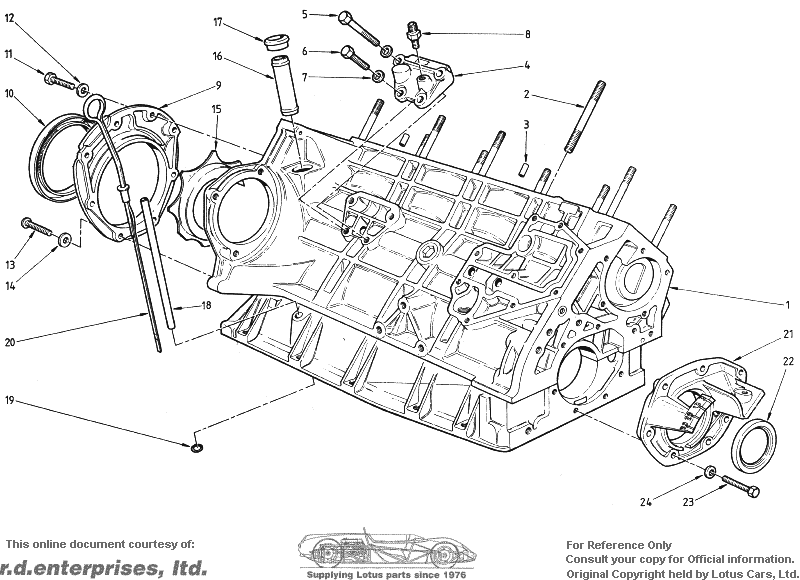

| EA 1 | Cylinder Block and Main Bearing Housing Assembly | A912E0750W | 1 | 1 | Includes items listed up to and including A907E *? |
| Stud, M12 | A907F0225Z | 10 | 10 | Block to Main Bearing Housing | |
| Washer, plain | A907E0031Z | 10 | 10 | Block to Main Bearing Housing | |
| Nut, M12 | A075W3025Z | 10 | 10 | Block to Main Bearing Housing | |
| Ring Dowel | A911E0320F | 3 | 3 | Main Bearing Studs | |
| Stud, M8 | A907E0226Z | 10 | 10 | Block to Main Bearing Housing | |
| Washer, plain | A075W4020Z | 10 | 10 | Block to Main Bearing Housing | |
| Nut, M8 | A075W3021Z | 10 | 10 | Block to Main Bearing Housing | |
| EA 2 | Stud, M12 | A907E0224Z | 10 | 10 | Block to Cylinder Head |
| Plug, 1 " NPTF | A907E0528Z | 1 | 1 | Cylinder Block Oil Gallery | |
| Plug, ¼" BSP | A907E6063Z | 1 | 1 | Cylinder Block Oil Gallery | |
| EA 3 | Spirol Pin | A907E6007Z | 2 | 2 | Block to Cylinder Head |
| EA 4 | Cover, Oil Gallery | B912E1400K | 1 | 1 | |
| Gasket, Oil Gallery Cover | A907E0438Z | 1 | 1 | ||
| Wellseal, Gallery Cover Gasket | AR | AR | |||
| EA 5 | Bolt, M8 x 35, Oil Gallery Cover | A075WI041Z | 2 | 2 | |
| EA 6 | Screw, MB x 20, Oil Gallery Cover | A075W1038Z | 2 | 2 | |
| EA 7 | Washer, M8, Oil Gallery Cover | A075W4020Z | 4 | 4 | |
| EA 8 | Union, Oil Pressure Gauge | A907E0625Z | 1 | 1 | |
| EA 9 | Housing, Rear Seal | A907E0599Z | 1 | 1 | |
| EA 10 | Seal, Crankshaft Rear | A907E0631Z | 1 | 1 | |
| Gasket, Rear Housing | A907E0671Z | 1 | 1 | ||
| Wellseal, Rear Housing Gasket | AR | AR | |||
| EA 11 | Setscrew, M6 x 25 | A075W5089Z | 4 | 4 | Rear Seal Housing to Block |
| EA 12 | Washer, Plain, 6 mm | A075W4013Z | 4 | 4 | Rear Seal Housing to Block |
| EA 13 | Screw, Seal Housing | A075W7016Z | 4 | 4 | Rear Seal Housing to MBH |
| EA 14 | Washer, Seal Housing | A075W4065Z | 4 | 4 | Rear Seal Housing to MBH |
| EA 15 | Sprayshleld | B907E0662Z | 1 | 1 | |
| Dowel, Engine to Bellhousing | A907E6181Z | 2 | 2 | ||
| EA 16 | Spout, Breather | B907E0626Z | 1 | 1 | |
| EA 17 | Bush, Breather Spout | A907E0659Z | 1 | 1 | |
| EA 18 | Tube, Dipstick | A912E0633F | 1 | 1 | |
| EA 19 | 'O' Ring, Dipstick Tube | A912E6398F | 1 | 1 | |
| Avdel Pipeseal A121, Tube/Block | AR | AR | |||
| EA 20 | Dipstick, Green Handle | E907E0632Z | 1 | ||
| Dipstick, Red Handle | D907E0632Z | 1 | Series 2.2 models | ||
| Dipstick, Blue Handle | C907E0632Z | 1 | Series 3 models | ||
| EA 21 | Front Cover | A907E1230F | 1 | 1 | |
| EA 22 | Seal, Crankshaft Front | B907E6010F | 1 | 1 | |
| Gasket, Front Cover | A907E0245Z | 1 | 1 | ||
| EA 23 | Screw, M6 x 25 Front Cover | A075W1031Z | 7 | 7 | |
| EA 24 | Washer, M6 Front Cover | A075W4013Z | 7 | 7 | |
