Elite/Eclat Parts Manual -- Section EB

ELITE/ECLAT PARTS MANUAL

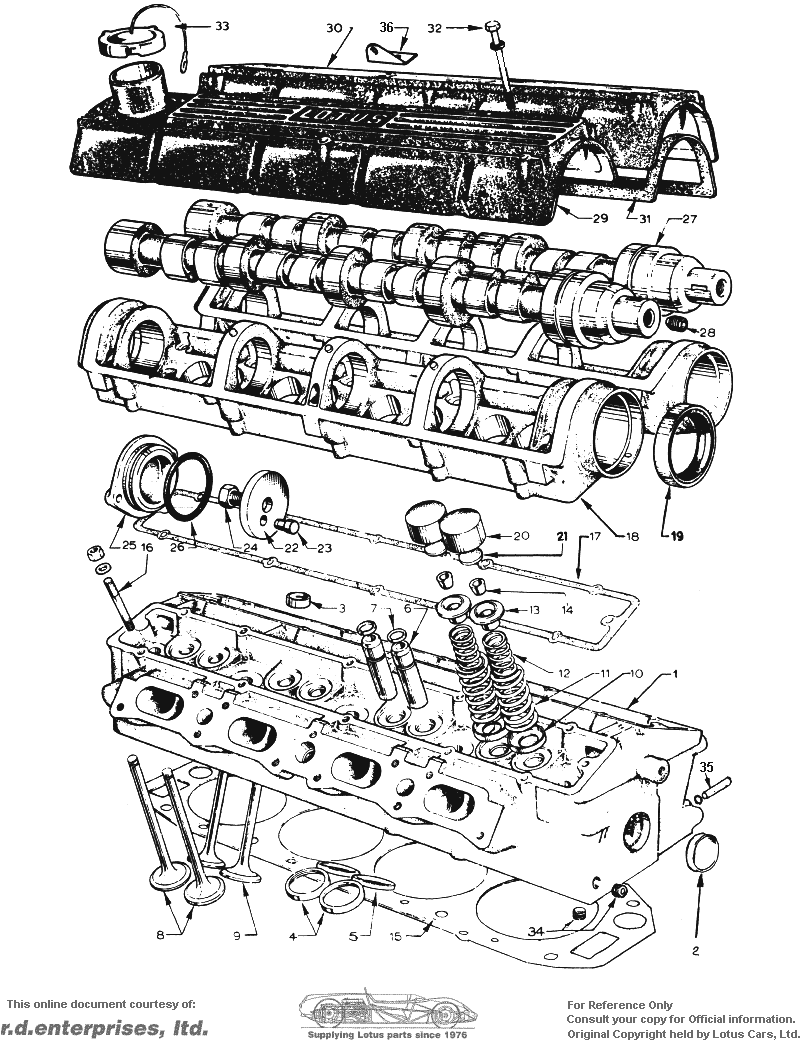

Section EB -- Engine (907) - Cylinder Head


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
EB 1	Cylinder Head, Sub Assy	A907E0703SH	*	*	*	*	1				1974 Fed. Without Air Injection
	Cylinder Head, Sub Assy	C907E0703S	*	*	*	*	1				Replaces A907E0703S when wit ? heater take-off and plug A907E ? fitted in lieu
	Pipe, Heater Take-off	A907E0486ZA	*	*	*	*	1				Replaces A907E0703S when wit ? heater take-off and plug A907E ? fitted in lieu
	Cylinder Head, Sub Assy	B907E0703S	*	*	*					1	With Air Injection
	Cylinder Head, Sub Assy	D907E0703S	*	*	*	*				1	Replaces B907E0703S when with ? heater take-off, and plug A907 ? fitted in lieu
	Pipe, Heater Take-off	A907E0486ZA	*	*	*	*				1	Replaces B907E0703S when with ? heater take-off, and plug A907 ? fitted in lieu
EB 2	Cup Plug	A907E6039ZJ	*	*	*	*	2
EB 3	Cup Plug	A907E6038ZA	*	*	*	*	6
EB 4	Insert, Valve Seat, Inlet, Standard	B907E0312YJ	*	*	*	*	8
	Insert, Valve Seat, Inlet, +.001"	C907E0312YB	*	*	*	*	AR
	Insert, Valve Seat, Inlet, +.002"	D907E0312Y	*	*	*	*	AR
	Insert, Valve Seat, Inlet, +.005"	E907E0312YK	*	*	*	*	AR
EB 5	Insert, Valve Seat, Ex. Standard	B907E0313YC	*	*	*	*	8
	Insert, Valve Seat, Ex. +.001"	C907E0313YG	*	*	*	*	AR
	Insert, Valve Seat, Ex. +.002"	D907E0313YL	*	*	*	*	AR
	Insert, Valve Seat, Ex. +.005"	E907E0313YD	*	*	*	*	AR
EB 6	Valve Guide, Standard	B907EO315YB	*	*	*	*	16
	Valve Guide, + 0.001"	C907EO315YF	*	*	*	*	AR
	Valve Guide, + 0.002"	D907E03l5YK	*	*	*	*	AR
	Valve Guide, + 0.005"	E907E0315YC	*	*	*	*	AR
EB 7	Circlip, Valve Guide	A907E6G37ZG	*	*	*	*	16
EB 8	Valves Inlet	B907E0019ZE	*	*	*	*	8
EB 9	Valve, Exhaust	A907E0020ZF	*	*	*	*	8
EB 10	Seat, Valve Spring	A907EO316ZG	*	*	*	*	16
EB 11	Valve Spring, Outer	A907E0022ZE	*	*	*	*	16
EB 12	Valve Spring, Inner	A907E0023ZK	*	*	*	*	16
EB 13	Retainer, Valve Spring	B907E0021ZD	*	*	*	*	16
EB 14	Cotter, Valve Retaining	A907E6040ZL	*	*	*	*	32
EB 15	Gasket, Cylinder Head	B907E0026ZG	*	*	*	*	1
EB 16	Stud, Cam Housing to Head	B907E0227ZD	*	*	*	*	20
	Washer, Plain	A075W4020ZB	*	*	*	*	20
	Nut	A075W3021ZK	*	*	*	*	20
	Roll Pin, Cam Housing	A075W6097ZG	*	*	*	*	2				From Engine number 5543 Inc.
	"O" Ring, Roll Pin	A907E6202ZL	*	*	*	*	2				From Engine number 11276 Inc.
	Nut, Head to Block	A075W3025ZH	*	*	*	*	10
	Washer	A907E0031ZF	*	*	*	*	10
EB 17	Gasket, Cam Housing	B907E0203ZE	*	*	*	*	2				Up to Engine number 11275 Inc.
	Gasket Eliminator, Loctite 500	A907E6257VF	*	*	*	*	AR				From Engine number 11276 Inc.
EB 18	Camshaft Housing	B907E0302YC	*	*	*	*	2				Up to Engine number 11275 Inc.
	Camshaft Housing	D907EO302YL	*	*	*	*	2				From Engine number 11276 Inc.
	Camshaft Housing	E907EO302YD	*	*	*	*	2				From Engine number 12301 to 123 *? and onwards
	Stud	E907E1027FG	*	*	*	*		2	2		From Engine number 12301 to 123 *? and onwards
	Bracket, Belt Snubber	A907EI107FH	*	*	*	*		1	1		From Engine number 12301 to 123 *? and onwards
	Eccentric Adjuster	A9071E1108FB	*	*	*	*		1	1		From Engine number 12301 to 123 *? and onwards
	Washer	A075W4020ZB	*	*	*	*		1	1		From Engine number 12301 to 123 *? and onwards
	Nut, Plain M8	AO75W3021ZK	*	*	*	*		1	1		From Engine number 12301 to 123 *? and onwards
EB 19	Seal	B907E6042FL	*	*	*	*	2
EB 20	Tappet	XO26E0024ZH	*	*	*	*	16
EB 21	Shims, See Below
EB 22	Thrust Washer, 0.173" to 0.175"	A907E0619ZK	*	*	*	*	2				Alternatives
	Thrust Washer, 0.175" to 0.177"	A907E0620ZD	*	*	*	*	2				Alternatives
	Thrust Washer, 0.177" to 0.179"	A907E0621ZJ	*	*	*	*	2				Alternatives
	Thrust Washer, 0.179" to 0.181"	A907EO622ZC	*	*	*	*	2				Alternatives
EB 23	Dowel	A907E0476ZF	*	*	*	*	2
EB 24	Set Screw	A075W1046ZJ	*	*	*	*	2
	Washer, Spring	A075W4037ZK	*	*	*	*	2
EB 25	Rear Cover	A907E0090YL	*	*	*	*	2
EB 26	"O" Ring	A907E6027ZA	*	*	*	*	2
	Screw	A075W1029ZA	*	*	*	*
	Washer, Plain	A075W4013ZL	*	*	*	*	4
EB 27	Camshaft, "D" Type	G907E0102G	*	*	*	*		2	2		1 Groove
	Camshaft, "C" Type	F907E0101G	*	*	*	*	2				No Groove
	Camshaft, "E" Type	J907E0103G	*	*	*	*		2	2		2 Grooves
EB 28	Grubscrew	A907E6069ZB	*	*	*	*	2
EB 29	Cam Cover, Inlet	B907E0829W	*	*	*	*	1
EB 30	Cam Cover, Exhaust	B907EO301YJ	*	*	*	*	1
EB 31	Gasket, Cam Cover	B907E0001ZC	*	*	*	*	2
EB 32	Bolt	A075W2099ZG	*	*	*	*	12
	Washer, Seloc	A074E6009ZL	*	*	*	*	12
EB 33	Filler Cap	A026E0415WJ	*	*	*	*	1
	Gasket, Filler Cap	A026E0325ZH	*	*	*	*	1
EB 34	Plug	A907E6023ZC	*	*	*	*	2				1/8" BSP
EB 35	Stud, Water Inlet Pipe	A907E0657ZB	*		*	*	1
	"O" Ring	A907E6202ZL	*		*	*	1
EB 36	Bracket, Throttle Cable	A907E0516ZK	*	*	*		1
	Bracket, Throttle Cable, Automatic	A907E1156F	*	*		*	1
Not Illus	Abutment, Kick down cable	A907E0171K	*	*		*		1	1
Not Illus	Abutment, Kick down cable	A907E1156F	*	*		*				1
	For Studs Retaining, Manifold See EH for inlet SA for exhaust.						1
	Decoke Gasket Set	B907E0807WL	*	*	*	*		1	1		Dellorto Carbs
	Decoke Gasket Set	C907E0807W	*	*	*	*				1	Zenith Carbs

Shims - Reference EB 21 From Above
Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.
0.060 ins	A026E6160Z	0.080 ins	A026E6180Z	0.100 ins	A026E6200Z	0.120 ins	A026E6220Z	0.140 ins	A026E6240Z
0.061 ins	A026E6161Z	0.081 ins	A026E6181Z	0.101 ins	A026E6201Z	0.121 ins	A026E6221Z	0.141 ins	A026E6241Z
0.062 ins	A026E6162Z	0.082 ins	A026E6182Z	0.102 ins	A026E6202Z	0.122 ins	A026E6222Z	0.142 ins	A026E6242Z
0.063 ins	A026E6163Z	0.083 ins	A026E6183Z	0.103 ins	A026E6203Z	0.123 ins	A026E6223Z	0.143 ins	A026E6243Z
0.064 ins	A026E6164Z	0.084 ins	A026E6184Z	0.104 ins	A026E6204Z	0.124 ins	A026E6224Z	0.144 ins	A026E6244Z
0.065 ins	A026E6165Z	0.085 ins	A026E6185Z	0.105 ins	A026E6205Z	0.125 ins	A026E6225Z	0.145 ins	A026E6245Z
0.066 ins	A026E6166Z	0.086 ins	A026E6186Z	0.106 ins	A026E6206Z	0.126 ins	A026E6226Z	0.146 ins	A026E6246Z
0.067 ins	A026E6167Z	0.087 ins	A026E6187Z	0.107 ins	A026E6207Z	0.127 ins	A026E6227Z	0.147 ins	A026E6247Z
0.068 ins	A026E6168Z	0.088 ins	A026E6188Z	0.108 ins	A026E6208Z	0.128 ins	A026E6228Z	0.148 ins	A026E6248Z
0.069 ins	A026E6169Z	0.089 ins	A026E6189Z	0.109 ins	A026E6209Z	0.129 ins	A026E6229Z	0.149 ins	A026E6249Z
0.070 ins	A026E6170Z	0.090 ins	A026E6190Z	0.110 ins	A026E6210Z	0.130 ins	A026E6230Z	0.150 ins	A026E6250Z
0.071 ins	A026E6171Z	0.091 ins	A026E6191Z	0.111 ins	A026E6211Z	0.131 ins	A026E6231Z
0.072 ins	A026E6172Z	0.092 ins	A026E6192Z	0.112 ins	A026E6212Z	0.132 ins	A026E6232Z
0.073 ins	A026E6173Z	0.093 ins	A026E6193Z	0.113 ins	A026E6213Z	0.133 ins	A026E6233Z
0.074 ins	A026E6174Z	0.094 ins	A026E6194Z	0.114 ins	A026E6214Z	0.134 ins	A026E6234Z
0.075 ins	A026E6175Z	0.095 ins	A026E6195Z	0.115 ins	A026E6215Z	0.135 ins	A026E6235Z
0.076 ins	A026E6176Z	0.096 ins	A026E6196Z	0.116 ins	A026E6216Z	0.136 ins	A026E6236Z
0.077 ins	A026E6177Z	0.097 ins	A026E6197Z	0.117 ins	A026E6217Z	0.137 ins	A026E6237Z
0.078 ins	A026E6178Z	0.098 ins	A026E6198Z	0.118 ins	A026E6218Z	0.138 ins	A026E6238Z
0.079 ins	A026E6179Z	0.099 ins	A026E6299Z	0.119 ins	A026E6219Z	0.139 ins	A026E6239Z
