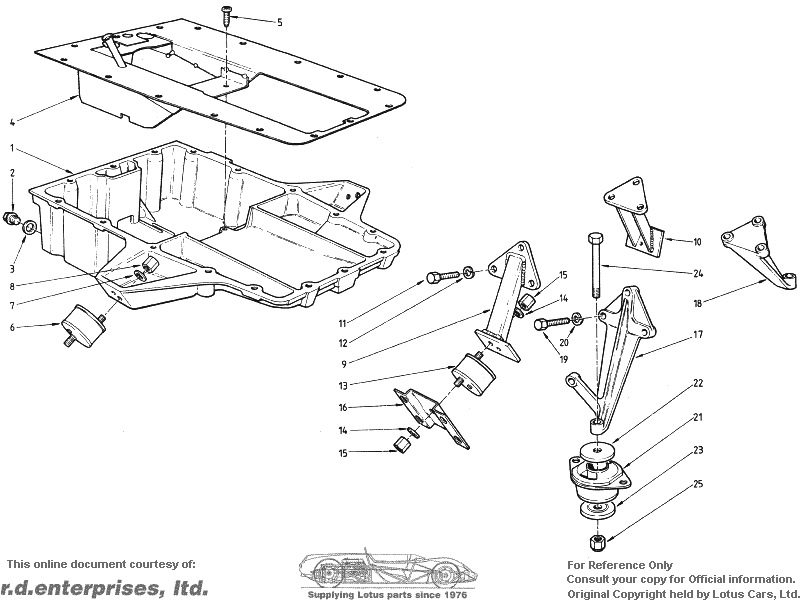

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EB 1 | Oil Sump | A912E0623K | 1 | | |
| Oil Sump | B912E0623F | | 1 | |
| EB 2 | Plug, Sump Drain | A036R6014Z | 1 | 1 | |
| EB 3 | Washer, Sump Plug | A075W4057Z | 1 | 1 | |
| EB 4 | Baffle Assembly, Sump | B912E0929J | 1 | 1 | Except Esprit S 2.2 |
| Baffle Assembly, Sump | A912E0929J | | 1 | Esprit S 2.2 only |
| Permabond APP 322, Baffle/Sump | | 7cc | 7cc | |
| EB 5 | Screw, Sump Baffle | A912E6399F | 2 | 2 | |
| Screw, M8 x 30 | A075W10#0Z | 8 | 8 | Sump to Main Bearing Housing |
| Bolt, M8 x 46 | A075W2040Z | 3 | 3 | Sump to Maln Bearing Housing |
| Bolt, M8 x 65 | A075W2044Z | 1 | 1 | Sump to Main Bearing Housing |
| Bolt, M8 x 90 | A075W2048Z | 1 | 1 | Sump to Main Bearing Housing |
| Bolt, M8 x 50 | A075W2041Z | 3 | 3 | Sump to Main Bearing Housing |
| Nut, Nyloc, M8 | A075W3010Z | 2 | 2 | Sump to Main Bearing Housing |
| Washer, M8 | A075W4020Z | 18 | 18 | Sump to Main Bearing Housing |
| EB 6 | Mounting Rubber, Engine | A907E6174Z | 2 | | |
| EB 7 | Washer, M8, Engine Mounting | A075W4020Z | 4 | | |
| EB 8 | Nut, 5/16" UNF, Engine Mounting | A075W3065Z | 4 | | |
| Heatshleld, LH Engine Mounting | A912E1247F | 1 | | |
| EB 9 | Mounting Bracket, RH, Engine | B079E4020F | | 1 | Series 2.2 model only |
| EB 10 | Mounting Bracket, LH, Engine | A079E4059F | | 1 | Series 2.2 model only |
| EB 11 | Bolt, Mounting Bracket to Engine | A075W2037Z | | 6 | Series 2.2 model only |
| EB 12 | Washer, Spring | A075W4036Z | | 6 | Series 2.2 model only |
| EB 13 | Mounting Rubber, Engine | A907E6174Z | | 2 | Series 2.2 model only |
| EB 14 | Washer, M8, Engine Mounting | A075W4020Z | | 4 | Series 2.2 model only |
| EB 15 | Nut, 5/16" U NF Engine Mounting | A075W3065Z | | 4 | Series 2.2 model only |
| EB 16 | Adaptor, RH, Rubber to Chassis | B079E4018K | | 1 | Series 2.2 model only |
| Adaptor, LH, Rubber to Chassis | A079E4062F | | 1 | Series 2.2 model only |
| Heat Shield Assembly, LH Engine Mounting | A079E4054K | | 1 | Series 2.2 model only |
| Heat Shield Bracket | A079E4058C | | 1 | Series 2.2 model only |
| EB 17 | Mounting Bracket, RH, Engine | A082E4078K | | 1 | Series 3 model only |
| EB 18 | Mounting Bracket, LH, Engine | A082E4079K | | 1 | Series 3 model only |
| EB 19 | Bolt, Mounting Bracket to Engine | A079W2039F | | 6 | Series 3 model only |
| EB 20 | Washer, Spring | A075W4036Z | | 6 | Series 3 model only |
| EB 21 | Mounting Rubber, RH, Blue | A085E6008F | | 1 | Series 3 model only |
| Mounting Rubber, LH, Pink | A085E6009F | | 1 | Series 3 model only |
| EB 22 | Buffer Washer, upper | A085E6011F | | 1 | Series 3 model only |
| EB 23 | Buffer Washer, lower | A085E6010F | | 1 | Series 3 model only |
| EB 24 | Bolt M12 x 100, Rubber to Mounting | A079W2072F | | 2 | Series 3 model only |
| EB 25 | Nut, Nyloc, M12 | A075W3012F | | 2 | Series 3 model only |
| Setscrew, M8 x 20 Rubber to Chassis | A075W1038F | | 4 | Series 3 model only |
| Washer, Flat, M8 | A075W4020F | | 6 | Series 3 model only |
| Washer, Spring, M8 | A075W4036F | | 2 | Series 3 model only |
| Nut, Nyloc, M8 | A075W3010F | | 2 | Series 3 model only |
| Heatshield, Upper, LH Mounting | C082E4091F | | 1 | Series 3 model only |
| Heatshield, Lower, LH Mounting | C082E4092F | | 1 | Series 3 model only |
| Setscrew M6 x 20 Shleld/Chassis | A075W1030F | | 4 | Series 3 model only |
| Washer M6 large | A075W4017F | | 4 | Series 3 model only |
| Washer M6 | A075W4013F | | 4 | Series 3 model only |
| Nut, Nyloc, M6 | A075W3009F | | 4 | Series 3 model only |
