ELITE/ECLAT PARTS MANUAL

Section EC -- Engine (907) - Pistons, Rods & Crank

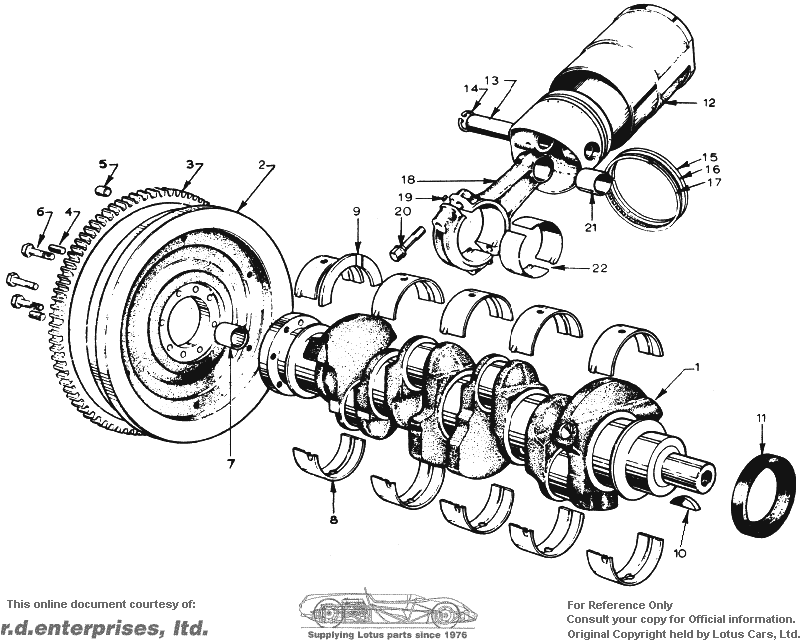

PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
EC 1	Crankshaft	A907E0896J	*	*	*	*	1				Less Spigot Bearing. Rep. C907E60 *?
EC 2	Flywheel and Ring Gear Assy.	B907E6019WD	*	*	*		1
EC 3	Ring Gear	A907E6018ZL	*	*	*		1
EC 4	Dowel, Crankshaft	A907E6015ZG	*	*	*	*	2
EC 5	Dowel, Flywheel	A907E6084ZL	*	*	*		3
Not Illus.	Flex. Plate	A907E1073F	*	*		*	1
Not Illus.	Dist. Plate, Engine Side	A907EI126K	*	*		*	1
Not Illus.	Dist. Plate, Gearbox Side	A907E6254FD	*	*		*	1
Not Illus.	Bolts, Flex, Plate/Torque Conv.	A075W1079F	*	*		*	4
Not Illus.	Washer, Spring	A075W4044ZA	*	*		*	4
EC 6	Bolt, Flywheel & Flex Plate to Crank	A907E6020ZK	*	*	*	*	6
EC 7	Spigot Bearing	A907E6049ZA	*	*	*		1
	Spigot Bearing	A907E1152F	*	*		*	1
EC 8	Main Bearing Shell, Standard I/D	A907E0336ZH	*	*	*	*	10				O/D Standard
	Main Bearing Shell, 0.010" I/D	A907E0538ZK	*	*	*	*	AR				O/D Standard
	Main Bearing Shell, 0.020 U/S I/D	A907E0539ZD	*	*	*	*	AR				O/D Standard
	Main Bearing Shell, Standard I/D	A907E0675ZD	*	*	*	*	AR				O/D + 0.015"
	Main Bearing Shell, 0.0l0" U/S l/D	B907E0675ZH	*	*	*	*	AR				O/D + 0.015"
	Main Bearing Shell, 0.020" U/S I/D	C907E0675ZA	*	*	*	*	AR				O/D + 0.015"
EC 9	Thrust Washer, Standard	A907EI000ZB	*	*	*	*	2
	Thrust Washer, + 0.0025"	A907E1001ZG	*	*	*	*	AR
	Thrust Washer, + 0.005"	A907E1002ZA	*	*	*	*	AR
	Thrust Washer, + 0.0075"	A907E1003ZF	*	*	*	*	AR
	Thrust Washer, + 0.100"	A907E1004ZL	*	*	*	*	AR
EC 10	Woodruff Key	A907E6016ZA	*	*	*	*	1				Pulley to Crankshaft.
EC 11	Oil Seal	B907E6OIOFE	*	*	*	*	1
EC 12	Piston & Liner Assy.	A907E0777WJ	*	*	*	*		4	4		High Comp., Includes Items EC13 to EC17.
	Piston & Liner Assy.	A907E0778WC	*	*	*	*				4	Low Comp., Includes Items EC13 to EC17.
EC 13	Gudgeon Pin	B907E0405Z	*	*	*	*	4
EC 14	Circlip	A907E6022Z	*	*	*	*	8
EC 15	Compression Ring, Top	A907E0401YA	*	*	*	*	4
EC 16	Compression Ring, Second	A907E0402YF	*	*	*	*	4
EC 17	Oil Control Ring	B907E0404ZB	*	*	*	*	4				Three Parts.
EC 18	Con. Rod Assy.	B907E0714W	*	*	*	*	4				Includes Items EA19 to EA21.
EC 19	Dowel	A907E0339ZA	*	*	*	*	8
EC 20	Bolt	A907E0344ZD	*	*	*	*	8
EC 21	Bush	A907E0357ZC	*	*	*	*	4
EC 22	Bearing Shell, Standard	B907E0342Z	*	*	*	*	8
	Bearing Shell, 0.D10" U/S	A907E0540ZJ	*	*	*	*	AR
	Bearing Shell, 0.020" U/S	A907E0541ZC	*	*	*	*	AR
Not Illus.	"V" Pulley, Single	A907E1191F	*	*	*	*	1				Replaces E907E0331YF.
	"V" Pulley, Double	A907E0695G	*	*	*	*	1				Fitted to Basic Engine Nos. 13042 to 13047, 13049 to 13066, 13068, 13070, 13071, 13076, 13077, 130 ? to 13082, 13084, to 13087, 13089 ? 13091, 13092 to 13096 which have two "V" Belts.
	"V" Pulley, Double	A907E0574YK	*		*	*	1				Air Cond. Cars, Chrysler 60A. Alt *?
	"V" Pulley, Double(triple 'V'- Dummy Centre 'V').	A907E1150FC	*		*	*	1				Air Cond. Cars wlth Air Injection *? Chrysler 60A. Alt.
	"V" Pulley, Double	A907EII29F	*	*	*	*	1				501/521 with PAS.
	"V" Pulley, Double	A907El192F	*	*	*	*	1
	"V" Pulley, Triple	A907E0661YG	*		*	*	1				Air Cond. & PAS cars with Chrysler 60A. Alt.
	"V" Pulley, Triple	C907E0661Y	*	*	*	*	1				Air Cond. Cars with Motorola 55A Alt. up to Eng. No. 13492.
	"V" Pulley, Triple	A907EI193F	*	*	*	*	1				Eng. No. 13493 on.
	Washer, Plain	B907E1106FG	*	*	*	*	1				Pulley to Crankshaft
	Washer, Spring	A075W7038ZD	*	*	*	*	1				Pulley to Crankshaft
	Screw	A075W1020ZL	*	*	*	*	1				Pulley to Crankshaft
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
