Elite/Eclat Parts Manual -- Section ED

ELITE/ECLAT PARTS MANUAL

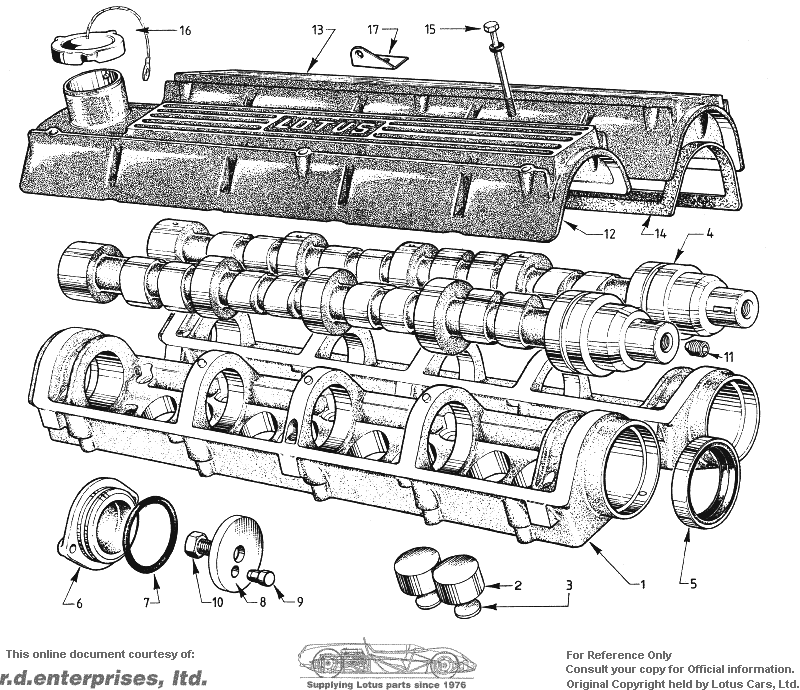

Section ED -- Engine (912) - Camshaft Housing & Cams


PLATE Ref. No.	DESCRIPTION	PART NO.			REMARKS
ED 1	Camshaft Housing	E907E0302K	2	2
	Washer, Cam Housing to Head	A075W4020Z	20	20
	Nut, Cam Housing to Head	A075W3021Z	20	20
ED 2	Tappet	X026E0024Z	16	16
	Graphogen Grease, Tappet		AR	AR
ED 3	Shim, Tappet - See Below		16	16
ED 4	Camshaft '107'	A912E0107F	2	2
	Graphogen Grease, Camshaft		AR	AR
ED 5	Oil Seal, Camshaft front	B907E6042F	2	2
ED 6	Cover, rear, Camshaft Housing	A907E0090Z	2	2
ED 7	'O' Ring, Rear Cover	A907E6027Z	2	2
	Screw, M6, Rear Cover	A075W1029Z	4	4
	Washer, Rear Cover	A075W4013Z	4	4
ED 8	Thrust Washer, 0.173" - 0.175"	A907E0619Z	AR	AR	Camshaft End Float Control
	Thrust Washer, 0.175" - 0.177"	A907E0620Z	AR	AR	Camshaft End Float Control
	Thrust Washer, 0.177" - 0.179"	A907E0621Z	AR	AR	Camshaft End Float Control
	Thrust Washer, 0.179" - 0.181 "	A907E0622Z	AR	AR	Camshaft End Float Control
ED 9	Dowel, Thrust Washer/Camshaft	A907EO476Z	2	2
ED 10	Setscrew, M10 Thrust Washer/Camshaft	A075W1046Z	2	2
	Washer, Spring	A075W4037Z	2	2
	Woodruff Key, Shaft to Pulley	A907E6025Z	2	2
ED 11	Grubscrew, Camshaft Front	A907E6069F	2	2
	Stud, Belt Snubber	A907E1027F	2	2
	Snubber, Timing Belt	A907E1107F	1	1
	Eccentric Adjuster, Snubber	A907E1108F	1	1
	Washer, Snubber Fixing	A075W4020Z	2	2
	Nut, Snubber Fixing	A075W3021Z	2	2
ED 12	Cam Cover, Inlet	C907E0300Y	1	1
ED 13	Cam Cover, Exhaust	A907E0301Y	1	1
ED 14	Gasket, Cam Cover/Housing	B907E0001Z	2	2
	Washer, Cam Cover/Housing	A074E6009Z	12	12
ED 15	Screw, Cam Cover/Housing	A075W2099Z	12	12
ED 16	Cap, O11 Filler	A026E0415Z	1	1
	Gasket, Filler Cap	A026E0325Z	1	1
ED 17	Bracket, Throttle Cable	A907E0516Z	1	1

Shims - Reference ED 3 From Above
Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.
0.060 ins	A026E6160Z	0.080 ins	A026E6180Z	0.100 ins	A026E6200Z	0.120 ins	A026E6220Z	0.140 ins	A026E6240Z
0.061 ins	A026E6161Z	0.081 ins	A026E6181Z	0.101 ins	A026E6201Z	0.121 ins	A026E6221Z	0.141 ins	A026E6241Z
0.062 ins	A026E6162Z	0.082 ins	A026E6182Z	0.102 ins	A026E6202Z	0.122 ins	A026E6222Z	0.142 ins	A026E6242Z
0.063 ins	A026E6163Z	0.083 ins	A026E6183Z	0.103 ins	A026E6203Z	0.123 ins	A026E6223Z	0.143 ins	A026E6243Z
0.064 ins	A026E6164Z	0.084 ins	A026E6184Z	0.104 ins	A026E6204Z	0.124 ins	A026E6224Z	0.144 ins	A026E6244Z
0.065 ins	A026E6165Z	0.085 ins	A026E6185Z	0.105 ins	A026E6205Z	0.125 ins	A026E6225Z	0.145 ins	A026E6245Z
0.066 ins	A026E6166Z	0.086 ins	A026E6186Z	0.106 ins	A026E6206Z	0.126 ins	A026E6226Z	0.146 ins	A026E6246Z
0.067 ins	A026E6167Z	0.087 ins	A026E6187Z	0.107 ins	A026E6207Z	0.127 ins	A026E6227Z	0.147 ins	A026E6247Z
0.068 ins	A026E6168Z	0.088 ins	A026E6188Z	0.108 ins	A026E6208Z	0.128 ins	A026E6228Z	0.148 ins	A026E6248Z
0.069 ins	A026E6169Z	0.089 ins	A026E6189Z	0.109 ins	A026E6209Z	0.129 ins	A026E6229Z	0.149 ins	A026E6249Z
0.070 ins	A026E6170Z	0.090 ins	A026E6190Z	0.110 ins	A026E6210Z	0.130 ins	A026E6230Z	0.150 ins	A026E6250Z
0.071 ins	A026E6171Z	0.091 ins	A026E6191Z	0.111 ins	A026E6211Z	0.131 ins	A026E6231Z
0.072 ins	A026E6172Z	0.092 ins	A026E6192Z	0.112 ins	A026E6212Z	0.132 ins	A026E6232Z
0.073 ins	A026E6173Z	0.093 ins	A026E6193Z	0.113 ins	A026E6213Z	0.133 ins	A026E6233Z
0.074 ins	A026E6174Z	0.094 ins	A026E6194Z	0.114 ins	A026E6214Z	0.134 ins	A026E6234Z
0.075 ins	A026E6175Z	0.095 ins	A026E6195Z	0.115 ins	A026E6215Z	0.135 ins	A026E6235Z
0.076 ins	A026E6176Z	0.096 ins	A026E6196Z	0.116 ins	A026E6216Z	0.136 ins	A026E6236Z
0.077 ins	A026E6177Z	0.097 ins	A026E6197Z	0.117 ins	A026E6217Z	0.137 ins	A026E6237Z
0.078 ins	A026E6178Z	0.098 ins	A026E6198Z	0.118 ins	A026E6218Z	0.138 ins	A026E6238Z
0.079 ins	A026E6179Z	0.099 ins	A026E6299Z	0.119 ins	A026E6219Z	0.139 ins	A026E6239Z
