ELITE/ECLAT PARTS MANUAL

Section EE -- Engine (907) - Oil Pump

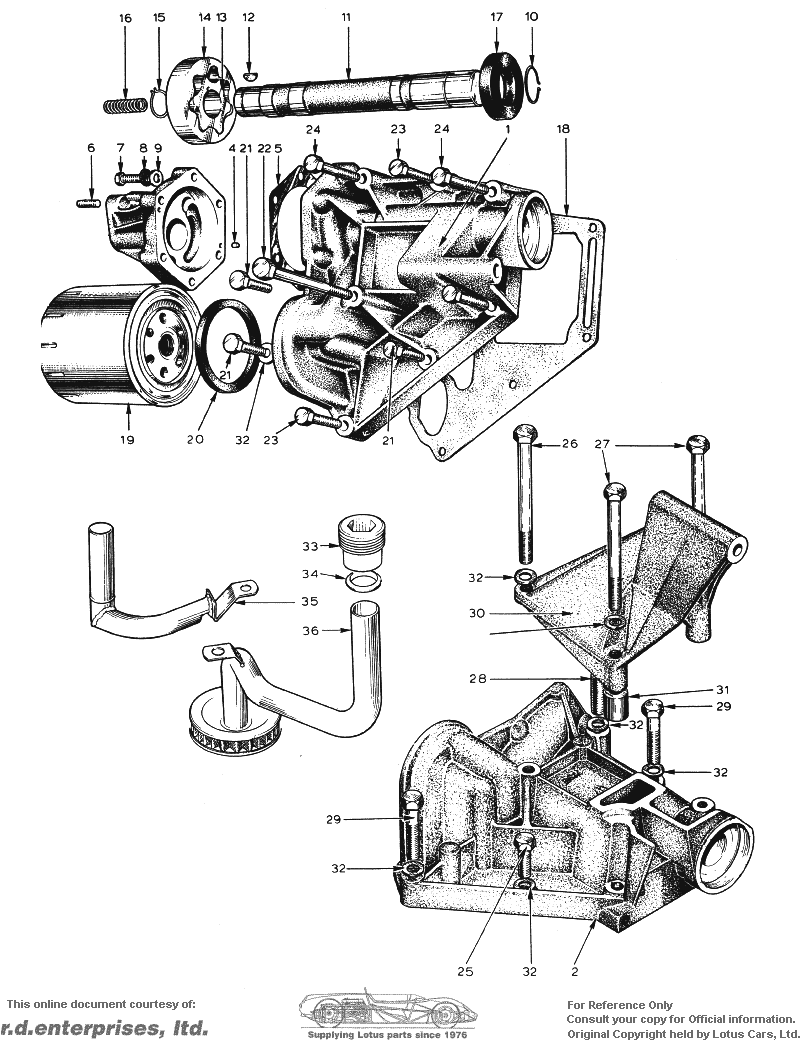

PLATE Ref. No.	DESCRIPTION	PART NO.						REMARKS
	Auxiliary Housing & Oil Pump Assembly	D907E0747WC	*	*	*	*	1	Non Air Cond. Cars.
	Auxiliary Houslng & Oil Pump Assembly	A907E0831WF	*		*	*	1	Air Cond. Cars, Englne Nos. up ? 12170, 12191 to 12193 & 12198 t ? 12461, Inc.
	Auxiliary Housing & Oil Pump Assembly	A907E0859F	*	*	*	*	1	Adaptable Type, replaces previou ? (See Page 2, Bulletin 1978/02 & ? Amendment). If so used, apprapr ? alternator bracked is required (Pa ? EE 3). Engine nos. 12171 to 121 *? 12195 to 12197 & 12462 on.
EE 1	Auxiliary Housing	E907E0437F	*	*	*	*	1	Non Air Cond. Cars.
Not Illus.	Auxiliary Housing	C907E0602HD	*		*	*	1	Air Cond. Cars, Engine nos. up t ? 12170, 12191 to 12193 & 12198 t ? 12461, Inc.
EE 2	Auxiliary Housing	A907E1092H	*	*	*	*	1	Adaptable Type, previous remarks ? apply (A907E0859F). Englne nos. ? 12171 to 12190, 12195 to 12197 & *? 12462 on, Inc.
EE 3	Oil Pump Housing	D907E0803W	*	*	*	*	1	Includes Relief Valve.
EE 4	Dowel	A907E0530ZC	*	*	*	*	2
EE 5	Gasket, Pump to Housing	A907E0474Z	*	*	*	*	1
EE 6	Stud, Distributor Clamp	A907E0503ZL	*	*	*	*	1
EE 7	Bolt, Pump to housing	A075W2028ZD	*	*	*	*	6
EE 8	Washer, Spring	A075W4035ZL	*	*	*	*	6
EE 9	Washer, Plain	A075W4013ZL	*	*	*	*	6
	Shaft & Rotor Assembly	A907E0785WE	*	*	*	*	1	Comprises Items EEl0 to EEl3, Inc
EE 10	Circlip	A907E6101ZK	*	*	*	*	1
EE 11	Jackshaft	B907E0291Z	*	*	*	*	1
EE 12	Woodruff Key	A907F6001ZC	*	*	*	*	1
EE 13	Rotor	A907E0472YD	*	*	*	*	1
EE 14	Annulus	A907E0473YJ	*	*	*	*	1
EE 15	Circlip	A907E6067ZC	*	*	*	*	1
EE 16	Spring	A907E0192ZK	*	*	*	*	1
EE 17	Oil Seal	A907E6064ZK	*	*	*	*	1
Not Illus.	Adaptor, Oil Filter	A907E0249ZL	*	*	*	*	1
EE 18	Gasket, Aux. Housing	B907E0442ZE	*	*	*	*	1
EE 19	Oil Filter	A907E6000WH	*	*	*	*	1
EE 20	Sealing Ring, Square Section	A907E6167Z	*	*	*	*	1
EE 21	Screw, Housing to Block, M8 x 25	A075W1039ZG	*	*	*	*	3	Aux. Hsg. D907E0747WC.
	Screw, Housing to Block, M8 x 25	A075W1039ZG	*	*	*	*	2	Aux. Hsg. A907E0831WF.
EE 22	Bolt, Housing to Block, M8 x 90	A075W2048ZE	*	*	*	*	1
EE 23	Bolt, Housing to Block, M8 x 40	A075W2039ZD	*	*	*	*	3	Aux. Hsg. D907E0747WC.
	Bolt, Housing to Block, M8 x 40	A075W2039ZD	*	*	*	*	4	Aux. Hsg. A907E0831WF.
EE 24	Bolt, Housing to Block, M8 x 60	A075W2043ZB	*	*	*	*	2
EE 25	Screw, Housing to Block, M8 x 25	A075W1039ZG	*	*	*	*	3	Aux. Hsg. & Oil Pump A907E0859F.
EE 26	Bolt, Housing to Block, M8 x 100	A075W2049ZK	*	*	*	*	1	Aux. Hsg. & Oil Pump A907E0859F.
EE 27	Bolt, Housing to Block, M8 x 90	A075W2048ZE	*	*	*	*	2	Aux. Hsg. & Oil Pump A907E0859F.
EE 28	Bolt, Housing to Block, M8 x 60	A075W2043ZB	*	*	*	*	1	Aux. Hsg. & Oil Pump A907E0859F.
EE 29	Bolt, Housing to Block, M8 x 40	A075W2039ZB	*	*	*	*	2	Aux. Hsg. & Oil Pump A907E0859F.
EE 30	Alternator Mounting Bracket (Motorola)	A907E1120G	*	*	*	*	1	From engine no. 12171 to 12190, 12195 to 12197 & 12462 on, Inc.
Not Illus.	Alternator Mounting Bracket (Chrysler)	A907E1093FG	*	*	*	*	1	To be used when Aux. Hsg. & ? Pump Assy. is fitted with ? Chrysler 60 A. Alternator. (Adaptable Type).
Not Illus.	Pivot Bolt	A907E2020Z	*	*	*	*	1	To be used when Aux. Hsg. & ? Pump Assy. is fitted with ? Chrysler 60 A. Alternator. (Adaptable Type).
Not Illus.	Screwed Sleeve	A907EI1095F	*	*	*	*	1	To be used when Aux. Hsg. & ? Pump Assy. is fitted with ? Chrysler 60 A. Alternator. (Adaptable Type).
Not Illus.	Split Sleeve, Alternator Pivot		*	*	*	*	1	To be used when Aux. Hsg. & ? Pump Assy. is fitted with ? Chrysler 60 A. Alternator. (Adaptable Type).
EE 31	Spacer	A907EI094F	*	*	*	*	1	Used with both Air. Brackets.
EE 32	Washer, Plain	A075W4020ZB	*	*	*	*	6
EE 33	Union	A907E0605ZF	*	*	*	*	1
EE 34	Olive, Compression	A907E0606ZL	*	*	*	*	1
EE 35	Vent Pipe	A907E0637ZA	*	*	*	*	1
EE 36	Pipe, Oil Pick-Up	A907E0624ZB	*	*	*	*	1
Not Illus.	Jackshaft Snubber, Toothed Belt	A907E1140F	*	*	*	*	1
