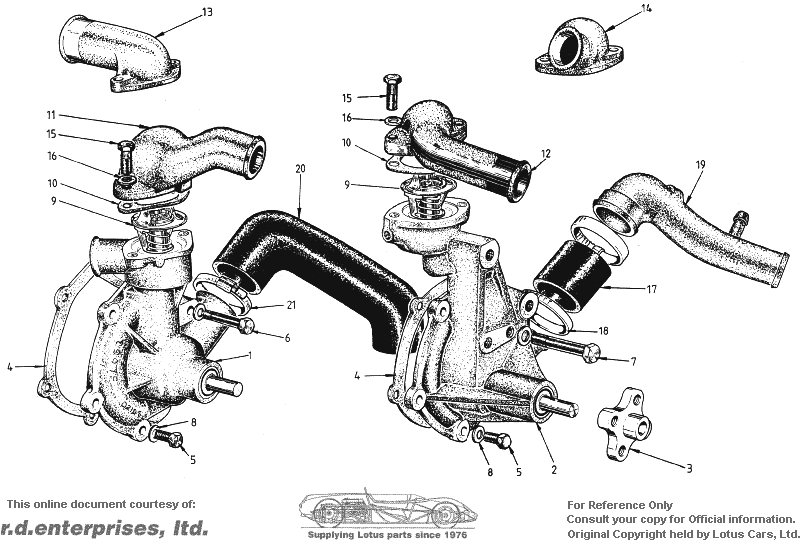

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EG 1 | Water Pump Assembly including hub | A912E0743J | 1 | 1 | Except PAS and/or Air Conditioning |
| EG 2 | Water Pump Assembly including hub | A912E0878J | 1 | 1 | With PAS and/or Air Conditioning |
| EG 3 | Hub, Water Pump | A907E6295Z | 1 | 1 | |
| 'V' Pulley, Water Pump | A907E6294F | 1 | 1 | |
| Setscrew, Pulley to Hub | A075W1036Z | 4 | 4 | |
| Washer, Spring Pulley to Hub | A075W4020Z | 4 | 4 | |
| Washer, Plain, Pulley to Hub | A075W4036Z | 4 | 4 | |
| EG 4 | Gasket, Water Pump | A907E0246Z | 1 | 1 | |
| Wellseal, Water Pump Gasket | | AR | AR | |
| EG 5 | Bolt, M6 x 25 Pump to Block | A075W2027Z | 4 | 4 | |
| EG 6 | Bolt, M6 x 65 Pump to Block | A075W2035Z | 1 | 1 | Except PAS and/or Air Conditioning |
| EG 7 | Bolt, M6 x 75 Pump to Block | A075W2036Z | 1 | 1 | With PAS and/or Air Conditioning |
| EG 8 | Washer, Plain, M6, Pump to Block | A075W4013Z | 5 | 5 | |
| EG 9 | Thermostat, 82°C | A907E6046Z | 1 | 1 | Temperate Climates |
| Thermostat, 74°C | A075K0121F | 1 | 1 | For use in High Ambient temperatures only |
| EG 10 | Gasket, Water Outlet Elbow | A026E6102Z | 1 | 1 | |
| Wellseal, Outlet Elbow Gasket | | AR | AR | |
| EG 11 | Water Outlet Elbow | C907E0479Y | 1 | | Except PAS and/or Air Conditioning |
| EG 12 | Water Outlet Elbow | A907E1066K | 1 | | With PAS and/or Air Conditioning |
| EG 13 | Water Outlet Elbow | A907E0698K | | 1 | Except Air Conditioning |
| EG 14 | Water Outlet Elbow | A907E1188K | | 1 | With Air Conditioning |
| EG 15 | Screw, M8 x 25 Outlet Elbow | A075W1039Z | 2 | 2 | |
| EG 16 | Washer M8 | A075W4020Z | 2 | 2 | |
| EG 17 | Hose, Inlet Pipe to Pump | B907E0487Z | 1 | | |
| EG 18 | Clip, Hose | A079K6019F | 2 | | |
| EG 19 | Pipe, Water Pump Inlet | E907E0478Z | 1 | | |
| EG 20 | Hose, Water Pump Inlet | B079K4043F | | 1 | |
| EG 21 | Clip, Hose | A079K6019F | | 1 | |
| Hose, Pump to Inlet Manifold | A907EI319F | 1 | 1 | Except PAS and/or Air Conditioning |
| Hose, Pump to Inlet Manifold | B907E0279Z | 1 | 1 | With PAS and/or Air Conditioning |
| Clip, Hose | A079K6019F | 2 | 2 | |
| Temperature Transmitter, Gauge | A050M6136W | 1 | 1 | |
