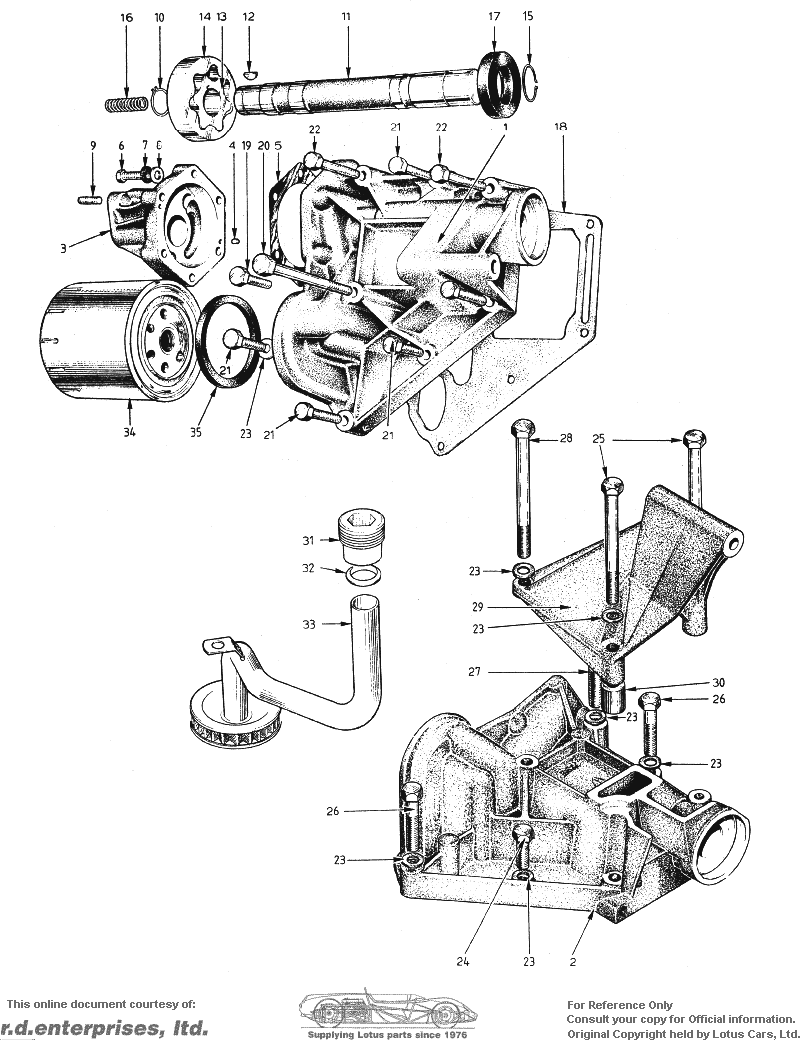

Ref. No. |  |  | |||
| Auxiliary Housing and Oil Pump Assembly | F907E0747F | 1 | 1 | Except Air Conditioning | |
| EH 1 | Auxiliary Housing | E907E0437H | 1 | 1 | Except Air Conditioning |
| Auxiliary Housing and Oil Pump Assembly | B907E0859F | 1 | 1 | With Air Conditioning | |
| EH 2 | Auxiliary Housing | A907E1092H | 1 | 1 | With Air Conditioning |
| EH 3 | Oil Pump Housing Assembly | E907E0803H | 1 | 1 | Includes relief Valve Assembly |
| EH 4 | Dowel, Pump Housing/Auxiliary Housing | A907E0530H | 2 | 2 | |
| EH 5 | Gasket, Pump Housing/Auxiliary Housing | A907E0474H | 1 | 1 | |
| EH 6 | Bolt, Pump Housing/Auxiliary Housing | A075W2028H | 6 | 6 | |
| EH 7 | Washer, Spring | A075W4035H | 6 | 6 | |
| EH 8 | Washer, Plain | A075W4013H | 6 | 6 | |
| EH 9 | Stud, Distributor Clamp | A907E0503H | 1 | 1 | |
| Shaft and Rotor Assembly | A907E0785F | 1 | 1 | Includes EH10 to EH13 inclusive | |
| EH 10 | Circlip | A907E6101H | 1 | 1 | |
| EH 11 | Auxiliary Shaft | B907E0291H | 1 | 1 | |
| EH 12 | Woodruff Key | A907E6001H | 1 | 1 | |
| EH 13 | Rotor | A907E0472H | 1 | 1 | |
| EH 14 | Annulus, Oil Pump | A907E0473H | 1 | 1 | |
| EH 15 | Circlip, Pulley Abutment | A907E6067H | 1 | 1 | |
| EH 16 | Spring, Distributor Drive | A907E0192H | 1 | 1 | |
| EH 17 | Oil Seal, Auxiliary Shaft | A907E6064H | 1 | 1 | |
| EH 18 | Gasket, Auxiliary Housing | B907E0442F | 1 | 1 | |
| EH 19 | Screw, M8 x 25 Housing to Block | A075W1039Z | 3 | 3 | Except Air Conditioning |
| EH 20 | Bolt, M8 x 90 Housing to Block | A075W2048Z | 1 | 1 | Except Air Conditioning |
| EH 21 | Bolt, M8 x 40 Housing to Block | A075W2039Z | 2 | 2 | Except Air Conditioning |
| Bolt, M8 x 40 Housing to Block | A912E1692K | 1 | 1 | Except Air Conditioning | |
| EH 22 | Bolt, M8 x 60 Housing to Block | A075W2043Z | 2 | 2 | Except Air Conditioning |
| EH 23 | Washer, Plain | A075W4020Z | 8 | 8 | Except Air Conditioning |
| Screw, M8 x 25 Housing to Block | A075W1039Z | 2 | With Air Conditioning | ||
| EH 24 | Screw, M8 x 25 Housing to Block | A075W1039Z | 3 | With Air Conditioning | |
| EH 25 | Bolt, M8 x 90 Housing to Block | A075W2048Z | 2 | 2 | With Air Conditioning |
| Bolt, M8 x 40 Housing to Block | A075W2039Z | 3 | With Air Conditioning | ||
| EH 26 | Bolt, M8 x 40 Housing to Block | A075W2039Z | 2 | With Air Conditioning | |
| EH 27 | Bolt, M8 x 60 Housing to Block | A075W2043Z | 1 | 1 | With Air Conditioning |
| EH 28 | Bolt, M8 x 100 Housing to Block | A075W2049Z | 1 | 1 | With Air Conditioning |
| EH 29 | Mounting Bracket, Alternator | A907E1120K | 1 | 1 | With Air Conditioning |
| EH 30 | Spacer, Mounting Bracket to Housing | A907E1094F | 1 | 1 | With Air Conditioning |
| EH 23 | Washer, Plain | A075W4020Z | 9 | 9 | With Air Conditioning |
| EH 31 | Union, Oil Pick Up | A907E0605Z | 1 | 1 | |
| EH 32 | Olive, Compression | A907E0606Z | 1 | 1 | |
| EH 33 | Pipe, Oil Pick Up | A907E0624Z | 1 | 1 | |
| Union Oil Filter | A907E0249H | 1 | 1 | ||
| EH 34 | Oil Filter | A907E6000F | 1 | 1 | Includes Sealing Ring A907E6167H |
| EH 35 | Sealing Ring, Filter to Adaptor | A907E6167H | 1 | 1 | |
| For Oil Cooler and Associated Parts see Section EJ |
