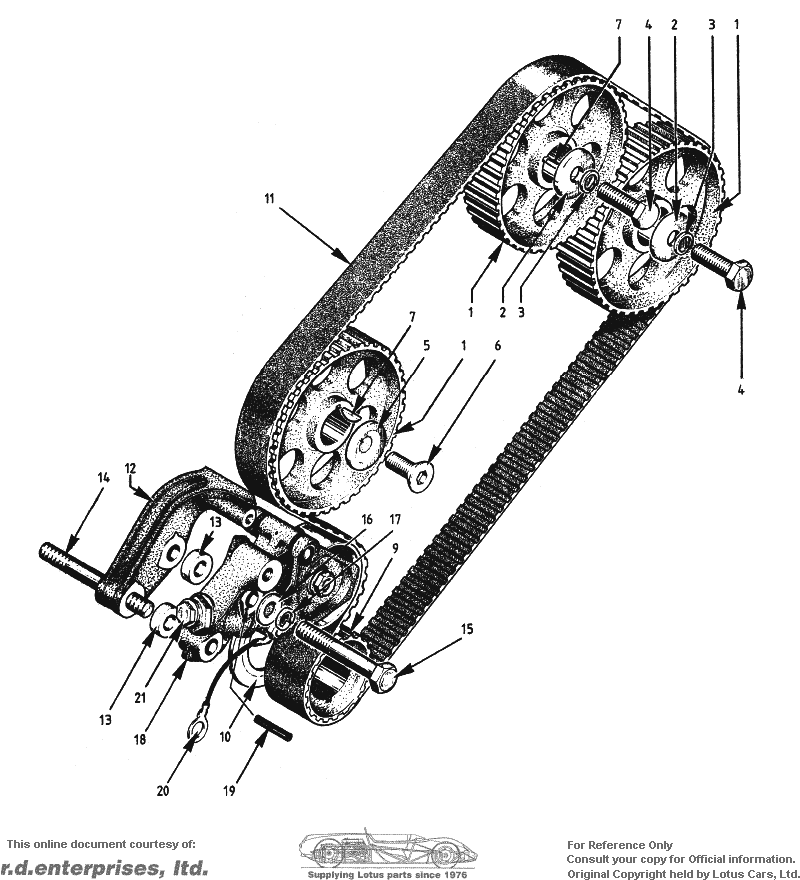

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EK 1 | Toothed Pulley, Camshaft/Jackshaft | A910E0309F | 3 | 3 | 104°/104° Valve Timing, green dots |
| EK 2 | Washer, Pulley to Camshaft | A907E6026Z | 2 | 2 | |
| EK 3 | Washer, Spring | A075W4037Z | 2 | 2 | |
| EK 4 | Bolt, M10 x 35, pulley to Cam | A075W2051Z | 2 | 2 | |
| EK 5 | Washer, Pulley to Jackshaft | A907E0576Z | 1 | 1 | |
| EK 6 | Screw, Pulley to Jackshaft | A075W7018Z | 1 | 1 | |
| EK 7 | Woodruff Key, Toothed Pulley | A907E6025Z | 3 | 3 | Camshaft and Jackshaft Pulleys |
| EK 9 | Toothed Pulley, Crankshaft | D907E0095Z1 | 1 | 1 | |
| Woodruff Key, C/S Toothed Pulley | A907E6016Z | 1 | 1 | |
| EK 10 | Flange, Pulley | A907E0096Z | 1 | 1 | |
| EK 11 | Belt, Cam Timing | A907E0191Z | 1 | 1 | 133 Teeth |
| EK 12 | Snubber, Jackshaft Pulley | B907E1140F | 1 | 1 | Except Esprit with Air Conditioning |
| EK 13 | Spacer, Snubber to Tensioner | A907E1139F | 2 | 2 | Except Air Conditioning |
| EK 14 | Stud, Belt Tensioner to Block | B907E0504K | 1 | 1 | Except Air Conditioning |
| Nut, Nyloc, M10 | A075W3011Z | 1 | 1 | Except Air Conditioning |
| Washer M10 | A075W4024Z | 1 | 1 | Except Air Conditioning |
| EK 15 | Bolt, M10 x 70, Belt Tensioner to Block | A075W2058Z | 1/2 | 1/2 | 2 used with Air Conditioning |
| EK 16 | Washer, Plain, M10 | A075W4024Z | 1/2 | 1/2 | 2 used with Air Conditioning |
| EK 17 | Washer, Spring, M10 | A075W4037Z | 1 | 1 | |
| EK 18 | Tensioner Assembly, Timing Belt | A907E0893K | 1 | 1 | Except Esprit with Air Conditioning |
| Tensioner Assembly, Timing Belt | A907E0913K | | 1 | With Air Conditioning |
| Pulley/Bearing, Tensioner | A907E6249F | 1 | 1 | |
| Yoke, front | B907E1141F | 1 | 1 | |
| Yoke, rear | B907E1142F | 1 | 1 | |
| Bush, Shouldered, Yoke Pivot | B907E1163F | 2 | 2 | |
| Rubber Washer | A907E1148F | 2 | 2 | |
| EK 19 | Locking Pin, 4mm | A907E1195F | 1 | 1 | |
| EK 20 | Earth Strap | A075M0329F | 1 | 1 | |
| Piston, Nylatron | A907E1245F | 1 | 1 | |
| Spring, Inner | A907E1165F | 1 | 1 | |
| Spring, Outer | A907E1164F | 1 | 1 | |
| Spring Seat, Slotted | B907E1146F | 1 | 1 | Except Esprit with Air Conditioning |
| EK 21 | Spring Seat, Hex Head | A907E1269F | | 1 | With Air Conditioning |
| Locknut, Adjuster | A907E1149F | 1 | 1 | |
