ELITE/ECLAT PARTS MANUAL

Section EP -- Engine (912) - Ignition System

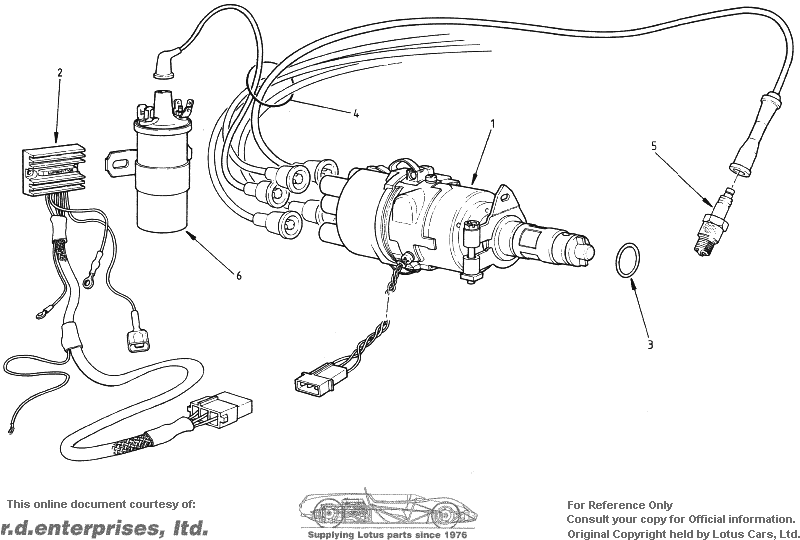

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EP 1Distributor Assembly (with ME 16 Switch)B907E0901J11Superceded by C907E0901J
Distributor Assembly (with Mk 17 Switch)C907E0901J11See Remarks below
Optical Switch/Interrupter Kit (Mk16)A075M0335F11Superceded by B907E6331F
Optical Swltch/Interrupter Kit (Mkl7)B907E6331F11When replaclng Mk 16 Switch with Mk 17 Sw *?
use with Adaptor A083M6305F if retainlng MI *?
Power Module. Ref Service Bulletin 1981/20 *?
EP 2Power Module (Mk 16)A075M0335F11Superceded by B083M0384F
Power Module (Mk 17)B083M0384F11When replacing Mk 16 Power Module (Red or *?
Resin Sealing Wires into Unit) with Mk 17 Un *?
(White plastic Sealing Block), use only in
conjunction with Mk 17 Optical Switch.
Adaptor, Mk 17 Switch/Mk 16 ModuleA083M6305F11When required
Fibre WasherA075W4057F11Where fitted, Chopper Blade height adjustme *?
EP 3'O' Ring, Distributor SpigotA907E6251F11
Rotor Arm/Rev. LimiterA907E6330F11
Distributor CapB907E6329H11
Nut, Nyloc, Distributor to EngineA075W3009Z11
Washer, Distributor to EngineA075W4013Z11
EP 4Ignition Harness, H.T.C907E0740F11
EP 5Spark Plug, NGK BPR 6ESB907E6317F44
EP 6Ignition Coil, FI.T.A082M6150F11
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
