ELITE/ECLAT PARTS MANUAL

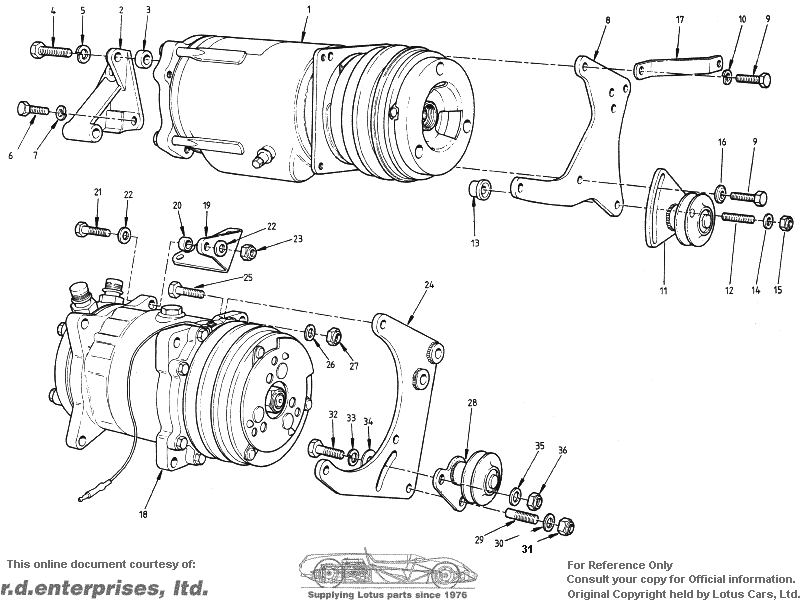

Section ES -- Engine (912) - Air Conditioning Compressor

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
ES 1Compressor, Air ConditioningA075P6007Z1
ES 2Support Bracket, Camp, RearB912E1369K1
ES 3Spacer, 5ram, Camp to BracketA907E1137F2
ES 4H.T. Bolt, 3/8" x 1½" Camp to BracketA075W2007F2
ES 5Washer, Spring, 10mm, Camp to BracketA075W4037Z2
ES 6Bolt, M8 x 30, Bracket to BlockA075W2037Z3
ES 7Washer, Spring, M8, Bracket to BlackA075W4036Z3
ES 8Bracket, Camp to Black, FrontB907E0572Z1
ES 9Setscrew, 5/16", Camp to BracketA075W1014Z3
ES 10Washer, Spring/8mm A075W4036Z3
ES 11Idler Pulley/Bracket AssemblyB907E0899J1
ES 12Stud, Pulley Bracket/Camp Bracket/MBHA907El197F1
ES 13Spacer, Camp Bracket/MBHA907E1196Z1
ES 14Washer, Plain, 8mmA075W4020Z1
ES 15Nut, Nyloc, M8A075W3010Z1
ES 16Washer, Special, Pulley Adi. BoltA907ED688Z1
ES 17Bracing Strap, Camp, Front BracketB907E1132F1
ES 18Compressor, Air ConditioningA079P6010F 1
ES 19Support Bracket, Comp RearA912E1379K 1
Spacer, Bracket to BlockA912E1378K 1
Bolt, M8 x 40, Bracket to BlockA075W2039Z 2
Washer, M8, Bracket to BlockA075W4020Z 2
ES 20Spacer, Comp to BracketA907E1136F 1
ES 21Bolt, M10 x 40 Comp to BracketA075W2052Z 1
ES 22Washer, M10, Comp to BracketA075W4024Z 2
ES 23Nut, M10, Comp to BracketA075W3011Z 1
ES 24Bracket, Comp to Block, FrontA907E1233K 1
ES 25Bolt, Comp to Front BracketA075W2051Z 3
ES 26Washer, M10, Comp to BracketA075W4024Z 3
ES 27Nut, Nyloc, M10, Comp to BracketA075W3011Z 3
ES 28Idler Pulley/Bracket AssemblyB907E0898J 1
ES 29Stud, Pulley Bracket/Comp Bmcket/MBHA907E1197F 1
ES 30Washer, Plain 8mmA075W4020Z 1
ES 31Nut, Nyloc, M8A075W3010Z 1
ES 32Bolt, M8, Idler Pulley AdjustA075W2037Z 1
ES 33Washer, Spring, 8mmA075W4036Z 1
ES 34Washer, Speclai, Adjust SlotA075W0688Z 1
ES 35Washer, Plain, 8mmA075W4020Z 1
ES 36Nut, Nyloc, M8A075W3010Z 1
