ELITE/ECLAT PARTS MANUAL

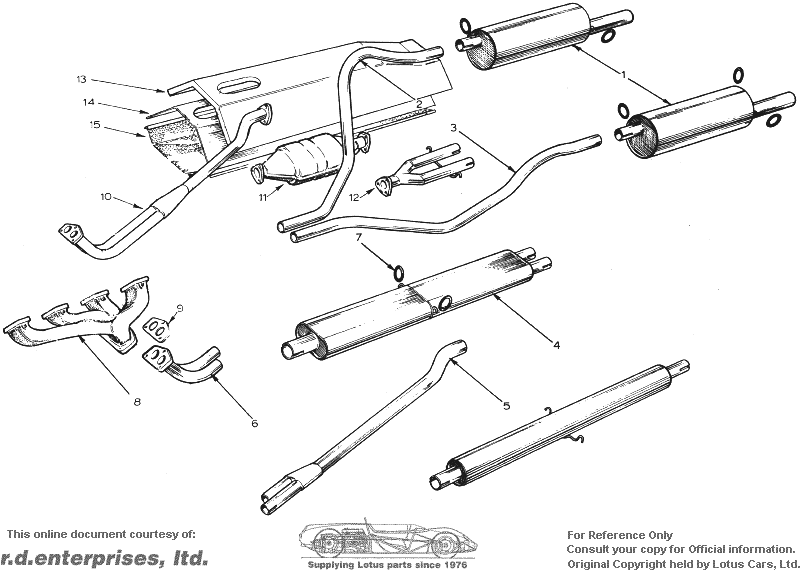

Section SA -- Manifold & Exhaust System


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
SA 1	Silencer, Rear	C075S0204Z	*	*			*	*	2
	Silencer, Rear	A076S0245F		*			*	*		1	1		Eclat 520 Only (Not 'Spri *?
	Silencer, Rear	A083S0746F			*	*	*	*		2	2
SA 2	Rear Pipe, RH	B075S0202Z	*	*			*	*	1
	Rear Pipe, RH	A083S0744F			*	*	*	*		1	1
SA 3	Rear Pipe, LH	B075S0201Z	*	*			*	*	1
	Rear Pipe, LH	A083S0743F			*	*	*	*		1	1
	Rear Pipe	A076S0242F		*			*			1	1		Eclat 520 Only (Not 'Spri *?
SA 4	Primary Silencer	C075S0210Z	*	*			*	*		1	1
	Primary Silencer	A083S0745F			*	*	*	*		1	1
	Primary Silencer	A076S0241F		*			*			1	1		Eclat 520 Only (Not 'Spri *?
	Primary Silencer	A075S0258F	*	*			*			1	1		Australia Only
SA 5 & 6	Front Pipe Assembly	A075S0248F	*	*			*			1	1		Also 1974 Spec. Federal
	Front Pipe Assembly	A075S0250	*	*				*		1	1
	Front Pipe Assembly	A083S0742F			*	*	*			1	1
	Front Pipe Assembly	A083S0748F			*	*		*		1	1
SA 10	Front Pipe Assembly	A075S0219F	*	*			*					1
	Front Pipe Assembly	A075S0251F	*	*				*				1
SA 7	Suspension Ring	075S6002Z	*	*			*	*	6				4 On Eclat 520 (Not 'Spri *?
	Suspension Ring	A075S6002Z			*	*	*	*		4	4		Rear Silencer, Rear
	Suspension Rubber	A083S6029			*	*	*	*		2	2		Rear Silencer, Front
	Suspension Rubber	A083S6026			*	*	*	*		2	2		Primary Silencer
SA 12	"Y" Piece, Catalyst to Tall Pipes	B075S0220F	*	*			*	*				1
	Gasket, Catalyst to "Y" Piece	A075S6014F	*	*			*	*				1
	Bolt	A075W1041Z	*	*			*	*				6
	Nut	A075W3035Z	*	*			*	*				6
SA 13	Insulation, Chassis	A075S0227F	*	*			*	*				1
SA 14	Heat Shleld, Chassis	A075S0228K	*	*			*	*				1
SA 15	Heat Shield, Lower	A075S0223K	*	*			*	*				1	Japanese and Californian ? On ?
	Screw	A075W1032Z	*	*			*	*				6
	Nut	A075W3009Z	*	*			*	*				6
	Washer	A075W4014Z	*	*			*	*				6
	Pipe Clamp, 2.0"	A075S6009F	*	*			*	*				1
Not lllus.	Insulation Set, Front Pipe Assy.	A075S0234F	*	*								1	1976 Spec. Onwards
Not Illus.	Insulation, Front Upper	A075S0222F	*	*								1
	Insulation, Front Lower	A075S0231F	*	*								1
	Insulation, Rear Upper	A075S0224F	*	*								1
	Insulation, Rear Lower	A075S0232F	*	*								1
Not lllus.	Casing for Insulation Set	A075S0233F	*	*								1
	Casing, Front Upper	A075S0225F	*	*								1
	Casing Front Lower	A075S0229F	*	*								1
	Casing, Rear Upper	A075S0226F	*	*								1
	Casing, Rear Lower	A075S0230F	*	*								1
