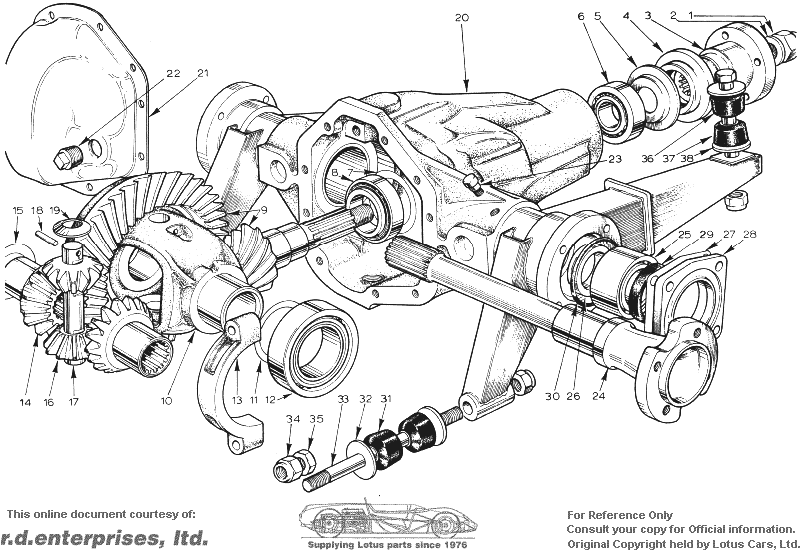

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  |  |  |  |  | REMARKS |
| | | | | | | | | | | | | Note:
The document used to create this page does not contain references to all parts annotated on the above drawing. |
| Final Drive Assy. 4.1:1 (for ½" rear mounting studs) | C075R0712J | * | * | * | * | * | * | 1 | | | | Up to 83D 1743, 83A/E/G *?
0243 *?84D 1077 84A/E/G/H/S 0 *? inclusive |
| Final Drive Assy. 3.73:1 (for ½" rear mounting studs) | D075R07OSJ | * | * | * | * | * | * | 1 | | | | Up to 83D 1743, 83A/E/G *?
0243 *?84D 1077 84A/E/G/H/S 0 *? inclusive |
| Final Drive Assy. 4.1:1 (for 'stepped' 5/8" mounting studs) | D075R0712J | | | * | * | * | * | 1 | | | | From 83D1744, 83A/E/G/ *>
024 *?84D 1078, 84A/E/G/H/S inclusive |
| Final Drive Assy. 3.73:1 (for 'stepped' 5/8" mounting studs) | E075R0705J | | | * | * | * | * | 1 | | | | From 83D1744, 83A/E/G/ *>
024 *?84D 1078, 84A/E/G/H/S inclusive |
| Oil Seal, Pinion 72/33mm | A075R6048HH | * | * | | | * | * | 1 | | | | |
| Oil Seal, Pinion 80/46mm | A075R6052F | * | * | * | * | * | * | 1 | | | | |
| Flange, Pinion (3.73:1) | A075R6006Z | * | * | | | * | * | 1 | | | | With 72/33mm Seal |
| Flange, Pinion (3.73:1) | A075R6055F | * | * | * | * | * | * | 1 | | | | With 80/46mm Seal |
| Flange, Pinion (4.1:1 ) | A075R6054F | * | * | * | * | * | * | 1 | | | | With 80/46mm Seal |
| Cover, Final Drive Rear | B075R6032Z | * | * | * | * | * | * | 1 | | | | With Breather Assy. |
| Gasket, Rear Cover | A075R6036Z | * | * | * | * | * | * | 1 | | | | |
| Breather Assy. | A075R6051F | * | * | * | * | * | * | 1 | | | | In Rear Cover |
| Air Pressure Relief Valve | A075R6038Z | * | * | | | * | * | 1 | | | | On Axle Tube |
| RA 24 | Inboard Drive Shaft | F075R0056Z | * | * | * | * | * | * | 2 | | | | |
| RA 25 | Bearing, Inboard Drive Shaft | C075R6001Z | * | * | * | * | * | * | 2 | | | | |
| RA 26 | Retaining Collar | B075ROO57Z | * | * | * | * | * | * | 2 | | | | |
| RA 27 | Shim 0.005" | C075ROO78Z | * | * | * | * | * | * | AR | | | | |
| Shim 0.010" | C075ROO79Z | * | * | * | * | * | * | AR | | | | |
| RA 28 | Retaining Plate | D075ROO58Z | * | * | * | * | * | * | 2 | | | | |
| Setscrew, M8 x 25, Plate Fixing | A075W1080Z | * | * | * | * | * | * | 8 | | | | |
| Washer, 8mm, Plate Fixing | A075W4020Z | * | * | * | * | * | * | 8 | | | | |
| RA 29 | Oil Seal, Output Shaft | B075R6003Z | * | * | * | * | * | * | 2 | | | | |
| RA 30 | '0' Ring, Retaining Plate | A075R6002Z | * | * | * | * | * | * | 2 | | | | |
| RA 31 | Mounting Rubber, Rear | A075ROO95F | * | * | * | * | * | * | 4 | | | | |
| RA 32 | Snubber Washer | A075RO076Z | * | * | * | * | * | * | 4 | | | | |
| RA 33 | Stud ½", Diff./Link/Chassis | E075ROO80Z | * | * | * | * | * | * | 2 | | | | |
| Stud, Stepped, ½"/5/8" Diff./Link/Chassis | BOB3RO108F | | | * | * | * | * | 2 | | | | |
| RA 34 | Nut, ½" UNF Nyloc | A075W3005Z | * | * | * | * | * | * | 4/2 | | | | Qty. 2 With 'Stepped' Stud |
| RA 35 | Locknut,½" UNF | A075W3036Z | * | * | * | * | * | * | 2 | | | | With ½" Studs |
| Nut, 5/8" UNF, Nyloc | A075W3006F | * | * | * | * | * | * | 2 | | | | With 'Stepped' Diff. Studs |
| Locknut, 5/8" UNF | A075W3066F | * | * | * | * | * | * | 2 | | | | With 'Stepped' Diff. Studs |
| Spacer, Diff./Lower Link, 3mm | A075ROO88F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 4mm | A075ROO89F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 5mm | A075ROO90F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 6mm | A075RO091F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 7mm | A075R0092F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 8mm | A075ROO93F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 9mm | A075ROO94F | * | * | * | * | * | * | AR | | | | With ½" Diff. Stud |
| Spacer, Diff./Lower Link, 3mm | B083ROO99F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 4mm | B083R0100F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 5mm | B083R0101F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 6mm | B083R0102F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 7mm | B083R0103F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 8mm | B083R0104F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Spacer, Diff./Lower Link, 9mm | B083R0105F | | | * | * | * | * | AR | | | | With 'Stepped' Studs |
| Snubber Washer, Spacer/Lower Link | B083R0109F | * | * | * | * | * | * | 2 | | | | |
| Reinforcing Channel, Diff. Studs Rear | A075ROO96F | * | * | * | * | * | * | 1 | | | | |
| Washer Nut to Channel | A075W4007Z | * | * | * | * | * | * | 2 | | | | |
| RA 36 | Mounting Rubber| Upper Front | A075R0096F | * | * | * | * | * | * | 2 | | | 0, |
| RA 37 | Mounting Rubber| Lower Front | A075R0095F | * | * | * | * | * | * | 2 | | | 0, |
| RA 38 | Snubber Washer, Front Mountings | A075R0077Z | * | * | * | * | * | * | 4 | | | | |
| Bolt, Diff. Front Mounting | A075W2014Z | * | * | * | * | * | * | 2 | | | | |
| Washer, Diff. Front Mounting | A075W4009Z | * | * | * | * | * | * | 2 | | | | |
| Nyloc Nut, Diff. Front Mounting | A075W3005Z | * | * | * | * | * | * | 2 | | | | |
| Propellor Shaft | C076R0085F | | * | | | * | | 1 | | | | 4-Speed |
| Propellor Shaft (Hookes Joints x 2) | G075R0050Z | * | * | | | * | * | 1 | | | | R/B A075R0098F |
| Propellor Shaft (Rear C.V. Joint) | A075R0098F | * | * | | | * | * | 1 | | | | 5-Speed & Auto |
| Propellor Shaft (Rear C.V. Joint) | A083R0098F | | | * | * | * | | 1 | | | | |
| Propellor Shaft (Rear C.V. Joint) | A075R0098F | | | * | * | | * | 1 | | | | |
| Propellor Shaft (Phased Hookes) | A083R0112S | | | * | * | * | | 1 | | | | |
| Propellor Shaft (Phased Hookes) | A083R0113S | | | * | * | | * | 1 | | | | |
| Bolt, Propshaft to Diff. | A075W2003Z | * | * | * | * | * | * | 4 | | | | |
| Nut, Propshaft to Diff. | A075W3002Z | * | * | * | * | * | * | 4 | | | | |
