ELITE/ECLAT PARTS MANUAL

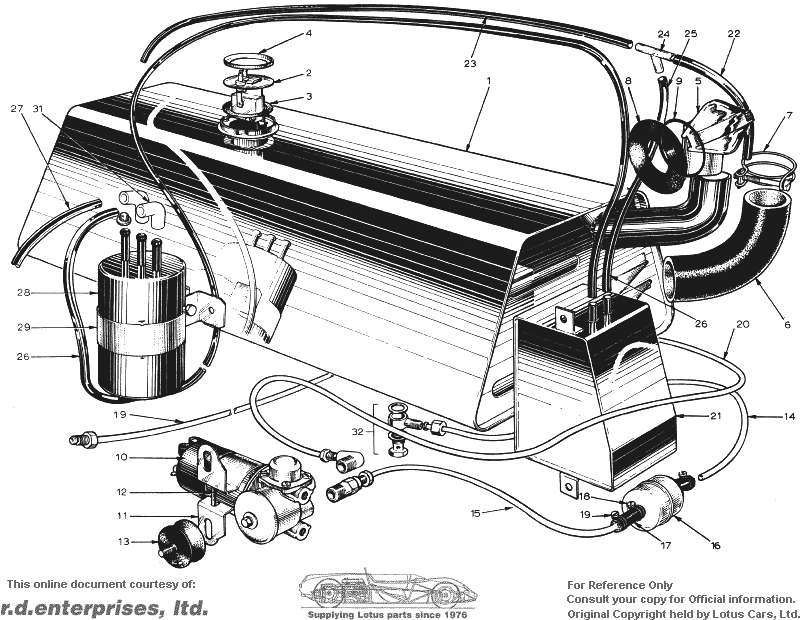

Section LA -- Fuel Tank, Pump, Pipes & Filler Neck


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
LA 1	Fuel Tank	D075L0144F	*		*		*	*	1				Refer to Bulletin 1975/19 ? units prior to 401A, 281B ? 047C
	Fuel Tank	C076L0120Z		*			*	*	1				Up to unit nos. 112E, 115 ? 116E, 0106F & 0145D, In ?
	Fuel Tank	D076L0158F		*		*	*	*	1				Unit Nos. 113E 114E, & ? on, 107F on, 146D on, 1 ? on & 100Q on
LA 2	Sender Unit Assembly	A075L6001ZL	*	*	*	*	*	*	1
LA 3	Sealing Washer	A050L6001Z	*	*	*	*	*	*	1
LA 4	Locking Ring	A075L6019ZB	*	*	*	*	*	*	1
	Bolts, Tank to Body, 10 x 40 mm	A075W2052ZC	*	*			*	*	2
	Washer, 10 mm	A075W4025ZE	*	*			*	*	4
	Nut, Nyloc	A075W3011ZD	*	*			*	*	2
	Bolt M8 x 35, Tank to Body	A075W2038Z			*	*	*	*	2
	Washer, Tank to Body	A075W4022Z			*	*	*	*	4
	Nut Nyloc, M8, Tank to Body	A075W3010Z			*	*	*	*	2
LA 5	Fuel Filler Neck, c/w Cap, left hand	B075L0145FD	*		*		*	*	1				Refer to Bulletin 1975/19 ? units prior to 401A, 281B ? 047C
	Fuel Filler Neck, c/w Cap, right hand	B075L0146FJ	*		*		*	*	1				Refer to Bulletin 1975/19 ? units prior to 401A, 281B ? 047C
	Fuel Filler Neck, c/w Cap, left hand	B075L0147FK	*		*		*	*				1	1975 Spec. on unit nos. *? suffix 'B' & 100L on, Inc.
	Fuel Filler Neck, c/w Cap, right hand	B075L0148FD	*		*		*	*				1	1975 Spec. on unit nos. *? suffix 'B' & 100L on, Inc.
	Fuel Filler Neck, c/w Cap, left hand	B075L0145FD	*				*	*				1	Unit nos. 100K on, Inc.
	Fuel Filler Neck, c/w Cap, right hand	B075L0146FJ	*				*	*				1	Unit nos. 100K on, Inc.
Not Illus.	N.R.V. Filler Neck Breather	B076L6001F	*				*	*		1	1
Not Illus.	Fuel Filler Neck	B076L0151F		*			*	*		1	1		Up to Unit Nos. 0145D & *? 0106F Inc.
	Fuel Filler Neck	B076L0151F		*			*	*		1	1		Unit Nos. 0146D & 0107F *? on, Inc.
	Fuel Filler Neck	D076LOI51F		*			*	*		1	1		Use with Cap with Security *? Chain.
	Fuel Filler Neck	A076L0152F		*			*	*				1	Up to Unit Nos, 0112E, 01 *? & 0116E Inc.
	Fuel Filler Neck	B076L0152F		*			*	*				1	Unit Nos. 0113E, 0114E & *? 0117E on, Inc.
	Fuel Filler Neck	D076L0152F		*			*	*				1	Use with Cap with Security ? Chain on Unit No. suffix ? 'E'& 100Q on, Inc.
	Fuel Filler Neck	D076L0151F		*			*	*				1	Unit Nos. 100P on, Inc.
	Fuel Filler Neck, (for lockeble cap)	A076L0165F				*	*	*		1	1
	Fuel Filler Neck, (for lockable cap)	A076L0166F				*	*	*				1
	Clamp Ring, Filler Neck	A079L4034F				*	*	*	1
	Gasket, Clamp Ring/Body	A079L4035F				*	*	*	1
	Screw s/t No.6 x ½" Neck/Body	A075WS014F				*	*	*	4
	Nut, Spire	A075W56013F				*	*	*	4
Not Illus.	Filler Cap Assembly	A079L4002J		*			*	*	1
	Filler Cap Assembly	A079L4038J		*			*	*	1				Use with filler neck with *? Security Chain
	Filler Cap Assembly, lockable	A076L0167F				*	*	*	1
	Gasket, Filler Cap	A079L6011F		*		*	*	*	1
LA 6	Hose, Filler to Tank, left hand	B075L0105FB	*				*	*	1				Unit Nos. 0400A, 0280B & 0046C, Inc.
	Hose, Filler to Tank, right hand	B075L0106ZF	*				*	*	1				Unit Nos. 0400A, 0280B & 0046C, Inc.
Not Illus.	Hose, Filler to Tank	A075L0149FJ	*		*		*	*	2				From Unit Nos. 0401A, 02 *? & 0047C, Inc.
Not Illus.	Hose Filler to Tank	C076L0126Z		*			*	*	1				Up to Unit Nos. 0112E, 01 ? & 0116E, 0106F & 0145D, ?
	Hose Filler to Tank	D076L0126Z		*		*	*	*	1				Unit Nos. 0113E, 0114E & ? 0117E on, 0107F & 0146D ? Inc.
LA 7	Hose Clip, Filler Neck Hose	A075L6044F	*	*	*	*	*	*	4/2				Elite 4, Eclat 2
LA 8	Grommet, Filler Neck	X046L6001ZH	*	*	*	*	*	*	2/1				Elite 2, Eclat 1
LA 9	'O' Ring, Filler Neck	X026S0086ZD	*	*	*	*	*	*	2/1	1			0,Elite 2, Eclat 1
	Breather Pipe, Filler Neck to Tank	A084L0177F		*		*	*	*	1				0.4m length, Unit Nos. 113E, 114E & ? 117E on, 107F on, 146D o ? 100P on, 100Q on
	Hose Clip, Breather Pipe	A079K6018F		*		*	*	*	2				Unit Nos. 113E, 114E & ? 117E on, 107F on, 146D o ? 100P on, 100Q on
LA 32	Banjo Assembly, without integral Filter	A075L6008ZB	*	*	*	*	*	*	1				Including Banjo, Washers, and Union and bolt
	Banjo Assembly, with integral Filter	A084L0181F			*	*	*	*	1				Including Banjo, Washers, and Union and bolt
	Crush Washer, Banjo	A075L6022F	*	*	*	*	*	*	2
LA 14	Pipe, Fuel, Tank to Filter (including Filter Union)	E075L0108FG	*	*	*	*	*	*	1				With Filter on Pump Inlet Side *?
	Filter, Fuel	A075L6004ZD	*	*	*	*	*	*	1				With Filter on Pump Inlet Side *?
	Pipe, Fuel, Filter to Pump	F075L0108FG	*	*	*	*	*	*	1				With Filter on Pump Inlet Side *?
	Clip, Pipe to Filter	X026S0133ZK	*	*	*	*	*	*	2
	Pipe, Fuel, Tank to Pump (c/w right angle Pump Union)	A084L0180F			*	*	*	*	1				With Filter on Pump Outlet Side
	'P' Clip, Fuel Pipe Fixing	A075W6002F			*	*	*	*	1				With Filter on Pump Outlet Side
LA 17	Hose, Pipe to Filter	A075L6014ZK	*	*			*	*	2				Early Cars only
LA 18	Clip, Hose	A075L6015ZD	*	*			*	*	2				Early Cars only
LA 19	Clip, Hose	X054J6028ZH	*	*			*	*	2				Early Cars only
LA 10	Fuel Pump	C075L6002F	*	*	*	*	*	*	1
	Tubing, 4 mm, Fuel Pump Vent	A050M6164V	*	*	*	*	*	*	1				0.4m length
	Clip, Vent Pipe	A075W6051F	*	*	*	*	*	*	1
	Union, straight, Pump/Pipe	A079L6007F	*	*	*	*	*	*	1
	Union, Elbow, Pump/Pipe	F075L0108F	*	*	*	*	*	*	1
LA 11	Clamp, Fuel Pump Mounting	A075L6010ZA	*	*	*	*	*	*	1
	Insulator Strip, Pump to Clamp	A075L0112ZL	*	*	*	*	*	*	1
LA 12	Bolt, Clamping	A075L6012ZL	*	*	*	*	*	*	1
LA 13	Bobbin, Rubber, Fuel Pump Mounting	X050S0156ZE	*	*	*	*	*	*	2
	Penny Washer, Bobbin to Body	A075W4003ZE	*	*	*	*	*	*	2
	Washer, Bobbin to Clamp	A075W4002ZL	*	*	*	*	*	*	2
	Nut, Nyloc, 5/16" UNF	A075W3002Z	*	*	*	*	*	*	4
LA 20	Pipe, Fuel, Pump to Flowlock	D075L0113Z	*	*			*	*	1				With Flowlock adjacent to Gearbox
	Pipe, Fuel, Pump to Flowlock	E075L0113Z	*	*	*	*	*	*	1				With Flowlock adjacent to Starter Motor, and Filter o *? Pump inlet Side
	Pipe, Fuel Pump to Filter	G079L0109F			*	*	*	*	1				With Filter on Pump Outle *? Side
LA 16	Filter, Fuel	A075L6004ZD			*	*	*	*	1				With Filter on Pump Outle *? Side
	Pipe, Fuel, Filter to Flowlock	A083L0178F			*	*	*	*	1				With Filter on Pump Outle *? Side
	Clip, Pipe to Filter	A075L6018Z			*	*	*	*	2				With Filter on Pump Outlet *? Side
	'P' Clip, Fuel Pipe Fixing	A075W6004F	*	*	*	*	*	*	5
	Screw, s/t, Pipe Clip	A075W5011F	*	*	*	*	*	*	5
	Grommet, Fuel Pipe	X036L6004ZK	*	*	*	*	*	*	6
	Grommet, Fuel Pipe/Bulkhead	X054J6007ZB	*	*			*	*	1
	Grommet, Fuel Pipe/Bulkhead	A075L6025F			*	*	*	*	1
	Fuel Valve, Flowlock	B075L0127ZE	*	*			*	*	1				Push on Connections
	Fuel Valvet Flowlock	A075L6028F	*	*	*	*	*	*	1				1 Screw on, 1 Push on Conn *?
	Screw, Flowlock Fixing	A075W5014F	*	*	*	*	*	*	1
	Clip, Pipe to Flowlock	A075L6018Z	*	*	*	*	*	*	1/2
LA 21	Evaporative, Loss Tank	C075L0107ZH	*	*	*	*	*	*				1
	Jack Nuts, 6 mm	A075W3031ZE	*	*	*	*	*	*				2
	Bolts, 6 mmx 25 mm	A075W2027ZK	*	*	*	*	*	*				2
	Washers, Shakeproof	A075W4035ZL	*	*	*	*	*	*				2
LA 22	Pipe, LH Filler to "T" Piece, 90.0mm	A075L0117ZF	*	*			*	*				1
LA 23	Pipe, RH Filler to "T" Piece, 1450.0mm	A075L0116ZA	*				*	*				1
LA 24	"T" Piece	A036L6017ZS	*				*	*				1
LA 25	Pipe, "T" Piece to E.L.T., 280mm	A075L0115ZG	*				*	*				1
	"T" Piece (3 x 5mm)	A075L6042F			*		*	*				1
	Reducing Adaptor (7 to 5mm)	A075L6040F			*	*	*	*				1
	Reducing Adaptor (9 to 5mm)	A075L6041F			*	*	*	*				1
	"T" Piece (3 x 7mm)	A075L6038F			*	*	*	*				1
LA 26	Pipe, E.L.T. to Cannister,5490.0mm	A075L0114ZB	*	*			*	*				1
	Nylon Tube ½" o/d	A075L6037V			*	*	*	*				AR
	Tube, P.U.	A075L6035V			*	*	*	*				AR
	Pipe, Evap. Loss	AO79L4014F			*	*	*	*				AR
	Pipe Clips	A075W6003ZK	*	*	*	*	*	*				6
	Screws No. 6, ¾ Pozi	A075W5027ZA	*	*	*	*	*	*				6
	Plugs, Nylon	A075W6039ZC	*	*	*	*	*	*				6
	Pipe Clips	A075W6000ZF	*	*	*	*	*	*				1
	Washers	A075W4001ZF	*	*	*	*	*	*				6
LA 27	Pipe, Cannister to Carbs	A075L0118ZL	*	*			*	*				1
LA 28	Charcoal Cannister	B075L6005ZJ	*	*	*	*	*	*				1
LA 29	Mounting Bracket	B075L0111FK	*		*	*	*	*				1
	Mounting Bracket	A076L0157FD		*			*	*				1
	Screwsl 6 x 16mm	A075W1028ZG	*		*	*	*	*				2
	Screws, 6 × 12mm	A075W1027ZB		*			*	*				2
	Nuts, Nyloc, 6mm	A075W3009ZE	*		*	*	*	*				2
	Jacknuts, 6mm	A075W3031ZE		*			*	*				2
	Washers	A075W4013ZL	*		*	*	*	*				2
	Spring Washers	A075W4035ZL		*			*	*				2
	Penny Washers	A075W4017ZJ	*	*	*	*	*	*				2
LA 30	Plug	X036J6005ZD	*	*	*	*	*	*				1
LA 31	Elbows	X036J0135ZG	*	*			*	*				3
	Anti-Surge Valve (N.R.V.)	B076L6001F		*	*	*	*	*		1	1		Elite S2 Qty 2
	Roll-Over Valve	A075L6036F	*	*	*	*	*	*				1	From Unit Nos. 516B, 10 ? 100L, 390E. 116P and 10 ? Inc.
	Setscrew, M6 x 16	A075W1028F	*	*	*	*	*	*				2
	Washer, 6mm	A075W4013F	*	*	*	*	*	*				2
	Jacknut, M6	A075W3034F	*	*	*	*	*	*				2
	Washer	A075W4001Z	*	*	*	*	*	*				4
	Tubing, Fuel Tank Breather	A036L0085V			*	*	*	*		2/3	2/3		Elite 2m Eclat 3m
	'P' Cllp, Fuel Tank Breather	A075W6000F			*	*	*	*		2	2
	Screw s/t, Fuel Tank Breather	A075W5007F			*	*	*	*		2	2
