Elite/Eclat Parts Manual -- Section LC

ELITE/ECLAT PARTS MANUAL

Section LC -- Dellorto Carburettors


PLATE Ref. No.	DESCRIPTION	PART NO.										REMARKS

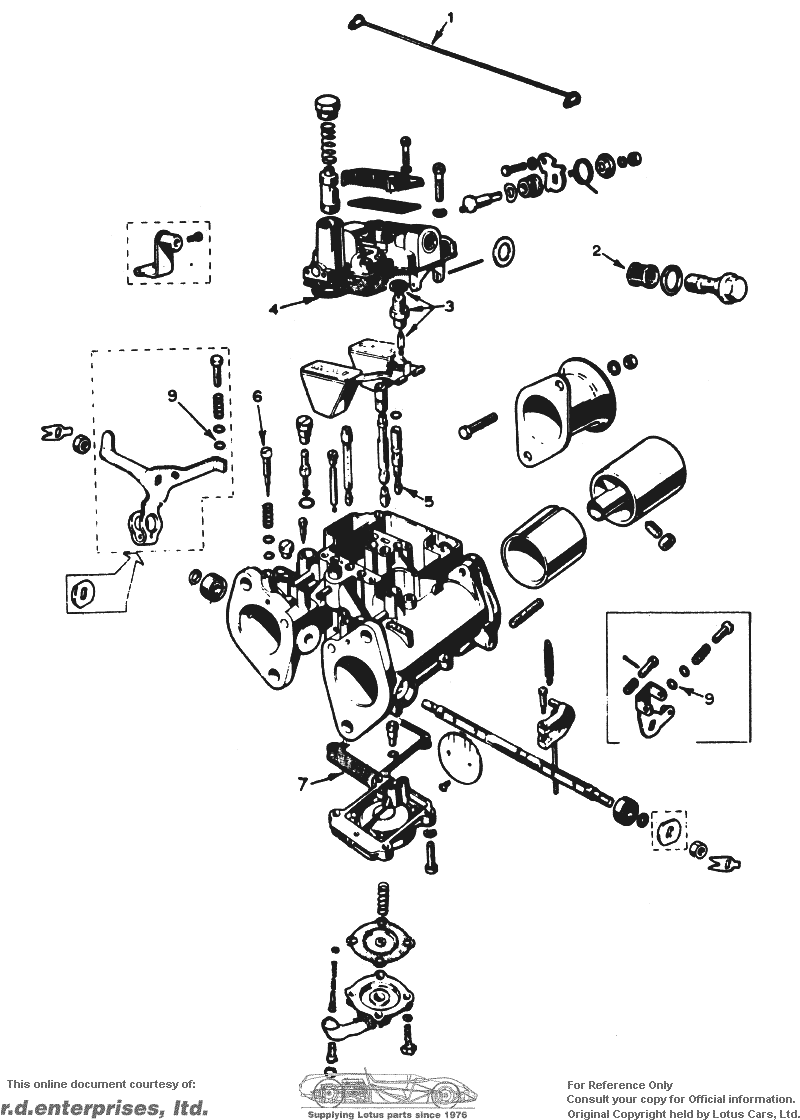

	The document used to create this page does not index the above image.
	Carburetter, Dellorto, front	B907E0789W	*				*		1	1		With 'D' Cams (1 groov *?
	Carburetter, Dellorto, rear	B907E0790W	*				*		1	1		With 'D' Cams (1 groo *?
	Carburetter, Dellorto, front	D907E0789W	*	*			*	*	1	1		With 'C' Cams (no groo *?
	Carburetter, Dellorto, rear	D907E0790W	*	*			*	*	1	1		With 'C' Cams (no groo *?
	Carburetter, Dellorto, front	F907E0789W	*	*			*	*	1	1		With 'E' Cams (2 groo *?
	Carburetter, Dellorto, rear	F907E0790W	*	*			*	*	1	1		With 'E' Cams (2 groo *?
	Carburetter, Dellorto, front	B912E0789F			*	*	*		1	1
	Carburetter, Dellorto, rear	B912E0790F			*	*	*		1	1
	Carburetter, Dellorto, front	A912E0940J			*	*		*	1	1
	Carburetter, Dellorto, rear	A912E0941J			*	*		*	1	1
	Lever, Throttle Kickdown	B907E1072K	*	*				*	1	1
	Lever, Throttle Kickdown	B912E1539F			*	*		*	1	1
	Spring, Throttle Return	A907E6195	*	*	*	*	*	*	1	1		Throttle Lever to Airbox
	Adaptor, Anti-Tamper Plug	B907E1226F	*	*			*	*	4	4		Where fitted
	Plug, Anti-Tamper	B907E1227F	*	*	*	*	*	*	4	4
	'P' Clip, Fuel Pipe Fixing	A075W6021Z	*	*	*	*	*	*	1	1		Later S1 Cars only
	Stud, M4 x 25, 'P' Clip	A907E1155F	*	*	*	*	*	*	1	1
	Nut, M4, 'P' Clip	A075W3019Z	*	*	*	*	*	*	1	1
	Washer, plain	A075W4000Z	*	*	*	*	*	*	2	2
	Choke Cable	A075S6022F	*	*			*	*	1	1		Dellorto Carbs
	Grommet, Choke Cable	A075S6023F	*	*			*	*	1	1		Dellorto Carbs
	Choke Cable, RHD	B075S0196ZA	*	*			*	*			1	Zenith 'CD' Carbs
	Choke Cable, LHD	C075S0195Z	*	*			*	*			1	Zenith 'CD' Carbs
	Choke Cable, RHD	A083S0276F			*	*	*	*	1			Dellorto Carbs
	Choke Cable, LHD	A083S0275F			*	*	*	*		1		Dellorto Carbs
	Abutment, Choke Cable	A036E6064Z	*	*	*	*	*	*	1	1
	Screw, Cable to Abutment	A074K6002Z	*	*	*	*	*	*	1	1
	Screw, Drilled, Cable to Lever	A036E6146Z	*	*	*	*	*	*	1	1
	Washer, Plain, 4mm	A036E6145Z	*	*	*	*	*	*	1	1
	Trunnion, Cold Start Lever	A910E6532F	*	*	*	*	*	*	2	2
	Link, Cold Start Interconnection	A907E6250Z	*	*	*	*	*	*	1	1
	Screw, Link to Lever	A036E6143Z	*	*	*	*	*	*	1	1
	Washer, Spring, 4mm	A036E6045Z	*	*	*	*	*	*	1	1
	Gasket, Float Chamber	A036E6069Z	*	*	*	*	*	*	2	2
	Screw, Idle Mixture	A036E6097Z	*	*	*	*	*	*	4	4
	'O' Ring, Idle Mixture Screw	A036E6096Z	*	*	*	*	*	*	4	4
	Gasket, Pump Body	A036E6122Z	*	*	*	*	*	*	2	2
	'O' Ring, Small, Pump Jet	A036E6100Z	*	*	*	*	*	*	4	4
	'O' Ring, Large, Pump Jet	A036E6101Z	*	*	*	*	*	*	4	4
	'O' Ring, Main Emulsion Tube	AO36E6107Z	*	*	*	*	*	*	4	4
	Gasket, Needle Valve	A036E6070Z	*	*	*	*	*	*	2	2
	Rubber Ring, Throttle Screw	A036E6096Z	*	*	*	*	*	*	1	1
	Screw & Nub Auxiliary Venturi	A907E6091Z	*	*	*	*	*	*	4	4
	Gasket Kit	A907E6092Z	*	*	*	*	*	*	1	1		Comprising: Float Chamber Gasket Needle Valve Gasket Jet Cover Gasket Pump Jet Gasket Pump Body Gasket
	Inlet Trumpet	A907E6090H	*	*	*	*	*	*	4	4
	Banjo Bolt, Fuel Inlet	A912E6555	*	*	*	*	*	*	2	2
	Banjo Washer, Large I/D	A036E6085Z	*	*	*	*	*	*	2	2
	Banio Washer, Small I/D	A036E6089Z	*	*	*	*	*	*	2	2
	Choke, 38 mm	A907E6071Z	*				*		4	4		With 'D' Cams (1 groo *?
	Main Jet, 142	A907E6211Z	*				*		4	4		With 'D' Cams (1 groo *?
	Main Air Corrector Jeh 110	A907E6214Z	*				*		4	4		With 'D' Cams (1 groo *?
	Main Emulsion Tube, 7772.5	A907E6189Z	*				*		4	4		With 'D' Cams (1 groo *?
	Idle Jet, 55L	A907E6275F	*				*		4	4		With 'D' Cams (1 groo *?
	Idle Jet Holder 7850-1	A907E6187Z	*				*		4	4		With 'D' Cams (1 groo *?
	Float Assembly, 10g (cranked arms)	A907E6215Z	*				*		2	2		Replaced by A911E644 ? Set Float Height 14.5 ? 15.0 mm
	Float Assembly, 8.5g (straight arms)	A911E6444Z	*				*		2	2		Replaces A907E6215Z
	Float Needle Valve, 170	A907E6082Z	*				*		2	2		With 'D' Cams (1 groo *?
	Pump Jet, 45V	A907E6213Z	*				*		4	4		With 'D' Cams (1 groo *?
	Starter Jet, 70	A907E6280F	*				*		4	4		With 'D' Cams (1 groo *?
	Starter Emulsion Tube	A907E6080Z	*				*		4	4		With 'D' Cams (1. groove) *?
	Accelerator Pump Diaphragm	A907E6308F	*				*		2	2		With 'D' Cams (1 groove) *?
	Choke, 35 mm	A907E6273F	*	*			*	*	4	4		With 'C' Cams (no groove *?
	Main Jet, 130	A907E6104Z	*	*			*	*	4	4		With 'C' Cams (no groov *?
	Main Air Corrector Jet 110	A907E6214Z	*	*			*	*	4	4		With 'C' Cams (no groov *?
	Maln Emulsion Tube, 7772 - 5	A907E6189Z	*	*			*	*	4	4		With 'C' Cams (no groo *?
	Idle Jet, 561	A907E6274F	*	*			*	*	4	4		With 'C' Cams (no groo *?
	Idle Jet Holder, 7850 - 6	A907E6240Z	*	*			*	*	4	4		With 'C' Cams (no groove *?
	Float Assembly, 10g (cranked arms)	A907E6215Z	*	*			*	*	2	2		Replaced by A911E644 ? Set Float Height 14.5 ? 15.0 mm
	Float Assembly, 8.5g (straight arms)	A911E6444Z	*	*			*	*	2	2		Replaces A907E6215Z
	Float Needle Valve, 170	A907E6082Z	*	*			*	*	2	2		With 'C' Cams (no groo *?
	Pump Jet, 45V	A907E6213Z	*	*			*	*	4	4		With 'C' Cams (no groo *?
	Starter Jet, 70	A907E6280F	*	*			*	*	4	4		With 'C' Cams (no groo *?
	Starter Emulsion Tube	A907E6080Z	*	*			*	*	4	4		With 'C' Cams (no groo *?
	Accelerator Pump Diaphragm	A907E6308F	*	*			*	*	2	2		With 'C' Cams (no groav *?
	Choke, 36 mm	A907E6276F	*	*			*	*	4	4		With 'E' Cams (2 grooves *?
	Main Jet, 160	A907E6277F	*	*			*	*	4	4		With 'E' Cams (2 grooves *?
	Main Air Corrector Jet, 230	A907E6279F	*	*			*	*	4	4		With 'E' Cams (2 grooves *?
	Main Emulsion Tube, 7772 - 8	A907E6278F	*	*			*	*	4	4		With 'E' Cams (2 grooves *?
	Idle Jet, 50L	A074E6026Z	*	*			*	*	4	4		With 'E' Cams (2 groo
	Idle Jet Holder, 7850 - 7	A907E6269F	*	*			*	*	4	4		With 'E' Cams (2 groo
	Float Assembly 10g. (cranked arms)	A907E6215Z	*	*			*	*	2	2		Replaced by A911E644 ? Set Float Height 14.5 ? 15.0 mm
	Float Assembly 8.5g. (straight arms)	A911E6444	*	*			*	*	2	2		Replaces A907E6215Z
	Float Needle Valve, 170	A907E6082Z	*	*			*	*	2	2		With 'E' Cams (2 groo
	Pump Jet, 42/38	A907E6544F	*	*			*	*	4	4		With 'E' Cams (2 groo,
	Starter Jet, 70	A907E6280F	*	*			*	*	2	2		With 'E' Cams (2 groo
	Starter Emulsion Tube	A907E6080Z	*	*			*	*	2	2		With 'E' Cams (2 groo,
	Accelerator Pump Diaphragm	A907E6308F	*	*			*	*	2	2		With 'E' Cams (2 groo
	Choker 37 mm	A911E6365H			*	*	*	*	4	4
	Auxiliary Venturi	A912E6450H			*	*	*	*	4	4
	Main Jet, 160	A907E6277H			*	*	*	*	4	4
	Main Air Corrector Jet, 230	A907E6279H			*	*	*	*	4	4
	Main Emulsion Tube, 7772 - 8	A907E6278H			*	*	*	*	4	4
	Idle Jet, 58	A912E6452H			*	*	*		4	4
	Idle Jet, 55	A907E6212F			*	*		*	4	4
	Idle Jet Holder, 7850 - 9	A912E6447H			*	*	*	*	4	4
	Float Assembly, 8.5g	A911E6444H			*	*	*	*	2	2
	Float Needle Valve	A911E6446H			*	*	*	*	2	2
	Pump Jet, 50	A912E6448H			*	*	*	*	4	4
	Starter jet, 95	A911E6523H			*	*	*	*	2	2
	Starter Emulsion Tube	A907E6188H			*	*	*	*	2	2
