ELITE/ECLAT PARTS MANUAL

Section PA -- Heater Unit (Delanaire)


PLATE Ref. No.	DESCRIPTION	PART NO.							REMARKS
	Heater Unit Assembly (Delanaire)	A075P0709W	*			*	*	1	Up to unit nos 547A and 074 *? inc

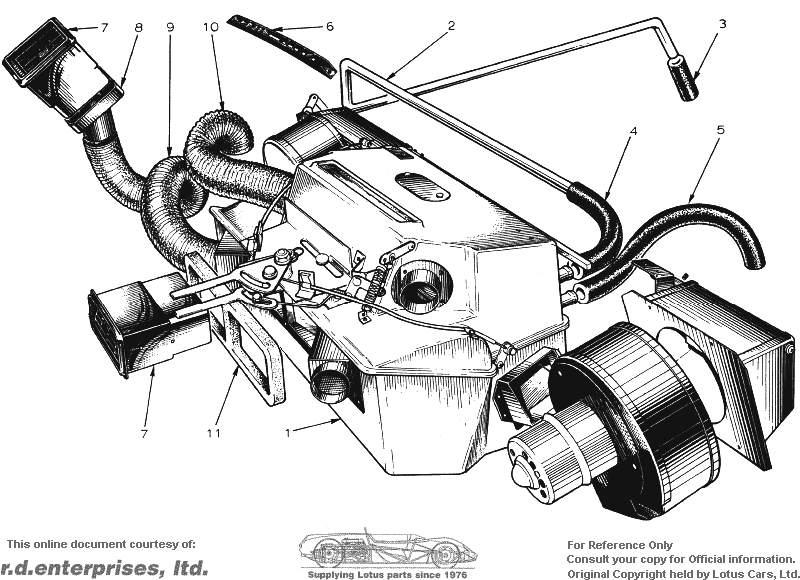

PA 1	Heater Unit	C075P0080Z	*			*	*	1	Up to unit nos 547A and 074 *? inc
	Motor	A075P6089F	*			*	*	2	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Fan, RH (CCW)	A075P6090F	*			*	*	1	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Fan, LH (CW)	A075P6091F	*			*	*	1	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Adaptor Bracket	A075P6092F	*			*	*	1	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Sleeve	A075P6093F	*	*		*	3		Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Rubber Mount	A075P6094F	*			*	*	3	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
	Spacer - 5mm thick, 12.5 0/D, 5.0 I/D	A075P6095F	*			*	*	3	Replaces motor assy A075P6C ? & A075P6036S. See Bulleti ? 1977/04 up to unit nos 546A *? 074C Inc.
Not Illus.	Heater Assembly (No outer F.L.V's)	A076P0711W	*	*		*	*	1	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Heater Control Cable (Temp)	A076P0125F	*	*		*	*	1	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Heater Control Cable (Direction)	A076PO124F	*	*		*	*	1	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Heater Control Lever Assembly	X050P0049Z	*	*		*	*	1	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Heater Control Knobs	X050B6078Z	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Screws, Heater Knobs	X050B6043Z	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Control Cable Trunnions	X050B6044Z	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Adaptor, Centre Face Level Vents	B076P0132F	*	*	2	*	*		From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Space Heater Control Lever	A076P0127F	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Space Heater Control Lever	A076P0128F	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Screw, Heater Control, 10 UNF x 1/8"	A076W1064F	*	*	2	*	*		From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Nuts, 10 UNF	A075W3013F	*	*		*	*	2	From unit nos 548A & 075C ? to unit nos 727A, 729A to 7 ? 798A to 805A, 075C to 114 ? Up to 133D, 135D to 145D ? to 190D. Up to 124E & 127 *? Up to 106F inc.
Not Illus.	Screws, Heater Mounting	A075W1040Z	*	*		*	*	4	From unit nos 548A & 075C. ? to unit nos 727A, 729A to 7 ? 798A to 805A, 114C. Up to ? 133D, 135D to 145D, 182D ? 190D. Up to 124E & 127E up *? 106F inc.
Not Illus.	Washers, 8mm	A075W4012Z	*	*		*	*	4	From unit nos 548A & 075C. ? to unit nos 727A, 729A to 7 ? 798A to 805A, 114C. Up to ? 133D, 135D to 145D, 182D ? 190D. Up to 124E & 127E up *? 106F inc.
Not Illus.	Spring Washers, 8mm	A075W4036Z	*	*		*	*	4	From unit nos 548A & 075C. ? to unit nos 727A, 729A to 7 ? 798A to 805A, 114C. Up to ? 133D, 135D to 145D, 182D ? 190D. Up to 124E & 127E up *? 106F inc.
PA 2	Heater Pipe Outlet	A075P0101Z	*	*		*	*	1
PA 3	Hose Outlet	A075P0082Z	*	*		*	*	1	Up to unit nos 727A, 729A ? 771A, 798A to 805A, 075C ? 114C, up to 133D, 135D to ? 145D, 182D to 190D. Up to ? 124E, up to 106F, inc.
PA 4	Hose Outlet	A075P0102Z	*	*		*	*	1	Up to unit nos 547A & 074C
PA 5	Hose, Heater to Engine (Zenith Carbs)	A075P0081Z	*	*		*	*	1	Up to unit nos 547A & 074C
	Hose, Heater to Engine (Zenith Carbs)	A075P0119F	*	*		*	*	1	From unit nos 548A & 075C.
	Hose, Heater to Engine (Dellorto Carbs)	A075P0108Z	*	*		*	*	1	Up to unit nos 547A & 074C
	Hose, Heater to Engine (Dellorto Carbs)	A075P0110Z	*	*		*	*	1	From unit nos 548A & 075C. to unit nos 727A, 729A to 7 ? 798A to 805A, 114C. Up to ? 133D, 135D to 145D, 182D ? 190D. Up to 124E & 127E, ? to 106F inc.
	Hose, Heater to Water Pipe	A075K0119F	*	*		*	*	1
	Clips	X0361L6016Z	*	*		*	*	6
	Pipe Support Clip	A075W6002Z	*	*		*	*	5
	Nylon Plugs	A075W6039Z	*	*		*	*	5
	Screws	A075W5027Z	*	*		*	*	5
	Washers	A075W4001Z	*	*		*	*	5
PA 6	Vent, Demist	A075P0099Z	*	*		*	*	2
	Screws	A075W5027Z	*	*		*	*	4
PA 7	Vent Face Level	A075P6018Z	*	*		*	*	4	Cars with heater A076P071 ? have two central vents onl ?
PA 8	Adaptor, Face Level Vent. LH	A075P0113Z	*	*		*	*	1	Up to unit nos 547A & 074 *?
	Adaptor, Face Level Vent. RH	A075P0114Z	*	*		*	*	1	Up to unit nos 547A & 074 *?
	Pop Rivet	A075W6067Z	*	*		*	*	4
	Extension, Face Level Vent, Centre	A076P0123K	*	*		*	*	2	From unit nos 548A & 0750 *?
PA 9	Air Hose to Face Level Vents	B075P0086Z	*	*		*	*	2
PA 10	Air Hose to Footwell	A075P0085Z	*	*		*	*	2
	Pipe Clips, Air Hoses	A075P6017Z	*	*		*	*	6
PA 11	Pad Sealing, Centre Face Level Vents	A075P0233F	*			*	*		Up to unit nos 547A & 074 *?
	Seal Heater Pipes	A075P0105Z	*						Up to unit nos 547A & 074 *?
									For heater parts for unit no ? 0728A, 0772A to 0797A & ? 0806A on, 0115C on, 013 ? 0146D to 0181D & 0191D ? 0125E, 0126E & 0128E on, *? 0107F on inc. See Section PD.
