ELITE/ECLAT PARTS MANUAL

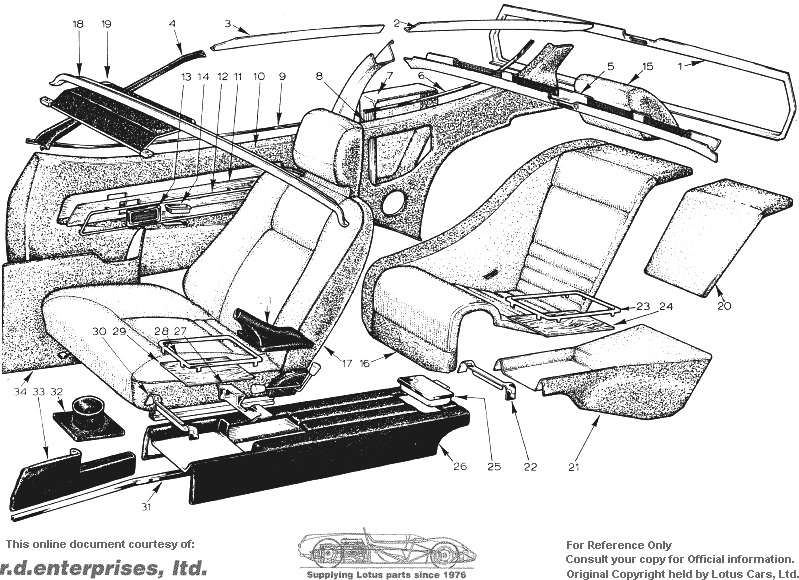

Section VA -- Trim - Seats, Door Trin & Center Tunnel


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
VA 1	Rear Window Surround	A075V0226Z	*		*	*	1
	Screw	A075W5037ZG	*		*	*	3
	Lokut Nut	A075W6039ZC	*		*	*	3
	Pop Rivet	A075W6067ZL	*		*	*	2
	Roll Pin	A075W6074Z	*		*	*	2
VA 2	Rear Cantrail Assy. RH	A075V0244ZG	*		*	*	1
	Rear Cantrail Assy. RH	A076V1318J		*	*	*	1
	Rear Cantrail Assy. LH	A075V0243ZB	*	*	*	*	1
	Rear Cantrail Assy. LH	A076V1317J		*	*	*	1
	Clip	A075W6062ZH	*	*	*	*	8
	Snapsac	A075W6077ZF	*	*	*	*	8
	Mountings, Rear Cantrail	A075V1113ZG	*		*	*	4
	Mountings, Rear Cantrail, Front	A076V1260F		*	*	*	2
	Mountings, Rear Cantrail, Rear	A076V1259F		*	*	*	2
VA 3	Front Cantra;l Assy. RH	A075V0284ZJ	*	*	*	*	1
	Front Cantrail Assy. LH	A075V0283ZD	*	*	*	*	1
	Clip	A075W6062ZH	*	*	*	*	4
	Snapsac	A075W6077ZF	*	*	*	*	4
	Mountings, Front Cantrall	A075Vl123ZB	*	*	*	*	4
VA 4	"A" Post Trim	A075VO279Z	*	*	*	*	2
VA 5	Cover, Roll-Over Bar	A075VO248ZE	*	*	*	*	1
	Spring Clip	A075W6080Z	*	*	*	*	2
	Pop Rivet	A075W6067ZL	*	*	*	*	2
VA 6	Contour Strip, Rear, RH	A075U0444ZE	*		*	*	1
	Contour Strip, Rear, LH	A075UO445ZK	*		*	*	1
	Contour Strip, Lower, Rear, RH	A076U1056F		*	*	*	1
	Contour Strip, Upper, Rear, RH	A076UlO58F		*	*	*	1
	Contour Strip, Lower, Rear, LH	A076UlO57F		*	*	*	1
	Contour Strip, Upper, Rear, LH	A076UlO59F		*	*	*	1
	Edge Clip	A075W6054ZA		*	*	*	AR
VA 7	Rear Quarter Pocket, RH	A075VO234Z	*		*	*	1
	Rear Quarter Pocket, RH	A076V1488F		*	*	*	1				With Radio.
	Rear Quarter Pocket, RH	A076V1490F		*	*	*	1				Without Radio.
	Rear Quarter Pocket, LH	A075VO235Z	*		*	*	1
	Rear Quarter Pocket, LH	A076V1489F		*	*	*	1				With Radio.
	Rear Quarter Pocket, LH	A076V1491F		*	*	*	1				Without Radio.
	Screw	A075W5043ZD	*	*	*	*	2
	Washer	A075W4000ZA	*	*	*	*	2
	Lokut Nut	A075W6039ZC	*	*	*	*	2
	Blanking Panel, Rear Qtr. Panel Pocket	A076V1482F	*	*	*	*	2
	Pop Rivet	A075W6094Z	*	*	*	*	18
	Washer	A075W4001ZF	*	*	*	*	18
VA 8	Rear Quarter Panel Assy. RH	A075V0228ZD	*	*	*	*	1
	Rear Quarter Panel Assy. RH	A076V1316J	*	*	*	*	1
	Rear Quarter Panel Assy. LH	A075V0229ZJ	*	*	*	*	1
	Rear Quarter Panel Assy. LH	A076VI315J	*	*	*	*	1
	Roll Pin	A075W6074Z	*	*	*	*	2
VA 9	Finisher, Door Trim Panel, Top, LH	B075V0671ZJ	*	*	*	*	1
	Finisher, Door Trim Panel, Top, RH	B075V0672ZC	*	*	*	*	1
	Finisher, Door Trim Panel, Top, LH	A076VI442F	*	*	*	*	1				Black.
	Finisher, Door Trim Panel, Top, RH	A076V1443F	*	*	*	*	1				Black.
	Edge Clip	A075W6048DD	*	*	*	*	AR
	Edge Clip	A075W6055ZF	*	*	*	*	AR				Finisher to Trim Panel.
VA 10	Door Trim Panel Assy, RH	A075V0260ZK	*		*	*	1
	Door Trim Panel Assy, RH	A076V1432K		*	*	*	1
	Door Trim Panel Assy, LH	A075V0259ZE	*		*	*	1
	Door Trim Panel Assy, LH	A076V1431K	*	*	*	*	1
	Pad, Courtesy Switch	A075VI081ZK	*	*	*	*		2	2	4
	Pop Rivet	A075W6068Z	*	*	*	*	10
VA 11	Finisher, Panel, Door, LH	C075U0337FH	*	*	*	*	1
	Finisher, Panel, Door, RH	C075U0338FB	*	*	*	*	1
VA 12	Trim Strip, Door Panel, LH	A075U0339ZB	*	*	*	*	1
	Trim Strip, Door Panel, RH	A075U0340ZG	*	*	*	*	1
VA 13	Ashtray, Door Panel	A036B6170WK	*	*	*	*	2				Use with Finishers C075U0337F *? and C075U0338FB.
VA 14	Door Pull	B075U0436ZJ	*	*	*	*	2
	Support, Door Pull	C075V0270ZB	*	*	*	*	2
	Washer	A075W4000ZA	*	*	*	*	2
	Nut	A075W3000ZD	*	*	*	*	2
VA 15	Headrest, Rear Seat	A075V0214WK	*		*	*	2
	Bolt	A075W2002ZF	*		*	*
	Headrest, Rear Seat	A075V1651J		*	*	*	2				Not Australia.
	Bolt	A075W2001ZA		*	*	*	4
VA 16	Seat Assy, Rear, LH	A075V0201WL	*		*	*	1
	Seat Assy, Rear, LH	A076V1313J		*	*	*	1				Up to Unit Nos. 145D, 118E, *? to 125E and 105F, Inc.
	Seat Assy, Rear, LH	A076V1557J		*	*	*	1				From Unit Nos. 146D, 119E, 1 *? and 106F on, Inc.
	Seat Assy, Rear, LH	A076V2025J		*	*	*	1				For use with Headrests.
	Seat Assyl Rear, RH	A075V0200WF	*		*	*	1
	Seat Assy, Rear, RH	A076VI314J		*	*	*	1				Up to Unit Nos. 145D1 118E, *? to 125E and 105F, Inc.
	Seat Assy, Rear, RH	A076V1558J		*	*	*	1				From Unit Nos. 146D, 119E, 1 *? and 106F on, Inc.
	Seat Assy, Rear, RH	A076V2026J		*	*	*	1				For use with Headrests.
	Hedlock Fastener	A075W6082ZJ	*	*	*	*	8
	Pop Rivet	A075W6067ZL	*	*	*	*	16
	Screw	A075W5043ZD	*	*	*	*	4
	Washer	A075W4000ZA	*	*	*	*	4
	Lokut Nut	A075W6039ZC	*	*	*	*	4
	Bracket, Rear Seat	A075Vl124ZG	*	*	*	*	2
	Pop Rivet	A075W6071ZJ	*	*	*	*	4
	Washer	A075W4001ZF	*	*	*	*	4
VA 17	Seat Assy, Front, LH	C075V0293ZG	*		*	*				1
	Seat Assy, Front, LH	A076V1457J		*	*	*				1
	Seat Assy, Front, RH	C075V0294ZA	*		*	*				1
	Seat Assy, Front, RH	A076VI458J	*	*	*	*				1
	Bolt	A075W1041ZF	*	*	*	*				8
	Washer	A075W4036ZE	*	*	*	*				8
	Knob, Seat Adjuster	A075V0623ZG	*	*	*	*				4
	Seat Runner, Locking, RH Seat	A075V6008WC	*	*	*	*				1
	Seat Runner, Plain, RH Seat	A075V6009WH	*	*	*	*				1
	Seat Runner, Locking, LH Seat	A075V6045WA	*	*	*	*				1
	Seat Runner, Plain, LH Seat	A075V6046WF	*	*	*	*				1
VA 18	Header Rall Assy.	A075V0289ZA	*	*	*	*				1
VA 19	Sun Visor Assy.	A075V0291ZL	*		*	*				2	Not Australia.
	Sun Visor Assy.	A075V1562K	*		*	*				2	Australia Only.
	Sun Visor Assy, LH	A076V1511K		*	*	*				1
	Sun Visor A=sy, RH	A076V1510K		*	*	*				1
	Cover, Sun Visor Pivot	A076V2349K		*	*	*				4
	Bracket, Sun Visor Mounting	A075V0684ZD	*		*	*				4
	Bracket, Sun Visor Mounting	A076V1505F		*	*	*				4
	Clip, Sun Visor Mounting	A075V0685ZJ	*		*	*	4
	Tolerance Ring	A075V6004F		*	*	*	4
	Clip, Sun Visor	A075V1086Z	*	*	*	*	2
	Screw	A075W5043ZD	*		*	*	4
	Lokut Nut	A075W6039ZC	*		*	*	4
	Screw 10 UNF x �", Pozi	A075W5059ZG		*	*	*	4
	Jacknut, 10 UNF	A075W3032ZK		*	*	*	4
VA 20	Centre Panel, Rear Seat, Assy.	A075V0221SG	*		*	*	1
	Centre Panel, Rear Seat, Assy.	A076V1319J		*	*	*	1				Up to Unit Nos. 145D, 118E, 12 *? to 125E and 105F, Inc.
	Centre Panel, Rear Seat, Assy.	A076VI559J		*	*	*	1				From Unit Nos. 146D, 119E, 12 *? and 106F on, Inc.
	Hedlock Fasteners	A075W6082ZJ	*	*	*	*	6
	Pop Rivets	A075W6069ZK	*	*	*	*	12
	Tunnel Assy.	A076V1451K		*	*	*	1
VA 21	Tunnel Capping, Rear	A075V0253ZH	*		*	*	1
VA 22	Finisher, Rear Tunnel Top	C075U0334Z	*		*	*	1
VA 23	Finisher, Tray, Rear Tunnel Top	A075U0335ZD	*		*	*	1
VA 24	Base Plate, Tray, Rear Tunnel Top	A075U0336ZJ	*		*	*	1
VA 25	Ashtray, Rear Tunnel	A075U0360Z	*		*	*	1
	Ashtray, Rear Tunnel	A075U6036F		*	*	*	1
VA 26	Tunnel Capping, Front	D075V0273F	*		*	*	1
VA 27	Finisher, Tunnel Top to H/Brake Gaiter	C075U0343Z	*		*	*	1
VA 28	Finisher, Tunnel Top Tray	A075U0341ZA	*	*	*	*	1
VA 29	Base Plate, Tunnel Top Tray	A075U0342ZF	*	*	*	*	1
VA 30	Finisher, Tunnel to Console	A075U0397ZK	*	*	*	*	1
VA 31	Finisher, Tunnel Side, LH	A075U0345ZK	*		*	*	1
	Finisher, Tunnel Side, RH	A075U0346ZD	*		*	*	1
VA 32	Gaiter, Upper, Gear Lever	B075V1055ZE	*	*	*		1				5 Speed Gearbox
	Gaiter, Upper, Gear Lever	A076V1486V		*	*		1				4 Speed Gearbox
	Gaiter, Lower, Gear Lever	B075U6039DL	*	*	*		1				5 Speed Gearbox
	Gaiter, Lower, Gear Lever	A076V1444F		*	*		1				4 Speed Gearbox
	Retainer - Gaiter to Lever	A076U6014F		*	*		1				4 Speed Gearbox
	Plate, Upper Gaiter	D075U0401ZG	*	*	*		1
	Clip, Plate/Gaiter	B075U6034DH	*	*	*		1
	Trim, Gear Lever Gaiter, Top	A075U0398ZL	*		*		1
	Trim, Gear Lever Gaiter, Top	A076U0398F		*	*		1
	Captive Nut	A075W6016ZJ	*	*	*		4
	Screw	A075W5032Z	*	*	*		4
	Snapsac	A075W6077ZF	*	*	*	*	4
	Lokut Nut	A075W6039ZC	*	*	*	*	4
	Clip	A075W6062ZC	*	*	*	*	4
	Screw, �"	A075W5034ZC	*	*	*	*	7
	Spire Nut	A075W6011ZF	*	*	*	*	7
VA 35	Handbrake Gaiter Assy	B075V0277Z	*	*	*	*	1
	Plate, Handbrake Gaiter, Upper	C075V0608K	*	*	*	*	1
	Plate, Handbrake Gaiter, Lower	C075V0607K	*	*	*	*	1
Not Illus.	Headlining - Front	A075V0288ZG	*	*	*	*	1
	Headlining - Rear	A075V1272K	*		*	*	1
	Headlining - Rear	B076V1306K		*	*	*	1
	Adhesive- Headlining	A075V6032V	*	*	*	*	AR				Dunlop S1358.
Not Illus.	Trim Panel	A075V1503F	*	*		*	1
Not Illus.	Trim Cover	A075V6044F	*	*		*	1				With Gear Markings.
Not Illus.	Brush, Gear Lever,/Trim Cover	A075F0351F	*	*		*	2
	Screw, Pozi, No. 8 x 3/8"	A075WS032Z	*	*		*	4
	Spire Nut, No. 8	A075W6016ZJ	*	*		*	4
	Foam Seal	A075V1540F	*	*		*	1
VA 33	Heater Valance, RH	A076V1466K		*	*	*	1
	Heater Valance, LH	A076V1467K		*	*	*	1
	Heater Valance, RH	A075V0692Z	*		*	*	1				With Outboard Face Level Vents
	Heater Valance, LH	A075V0693ZE	*		*	*	1				With Outboard Face Level Vents
	Heater Valance, RH	B075VO692Z	*		*	*	1				Without Outboard Face Level Vents
	Heater Valance, LH	B075V0693Z	*		*	*	1				Without Outboard Face Level Vents
VA 34	Lower "A" Post Trim Assy, RH	A075V0318ZE	*		*	*	1
	Lower "A" Post Trim Assy, LH	A075V0319Z	*		*	*		1
	Lower "A" Post Trim Assy, LH	A075V1099Z	*		*	*			1	1
	Lower "A" Post Trim Assy, RH	AX75V1210K		*	*	*	1
	Lower "A" Post Trim Assy, LH	AX75V1211Z		*	*	*		1
	Lower "A" Post Trim Assy, LH	AX75V1247Z		*	*	*			1	1
	Screw	A075W5037ZG	*	*	*	*	4
