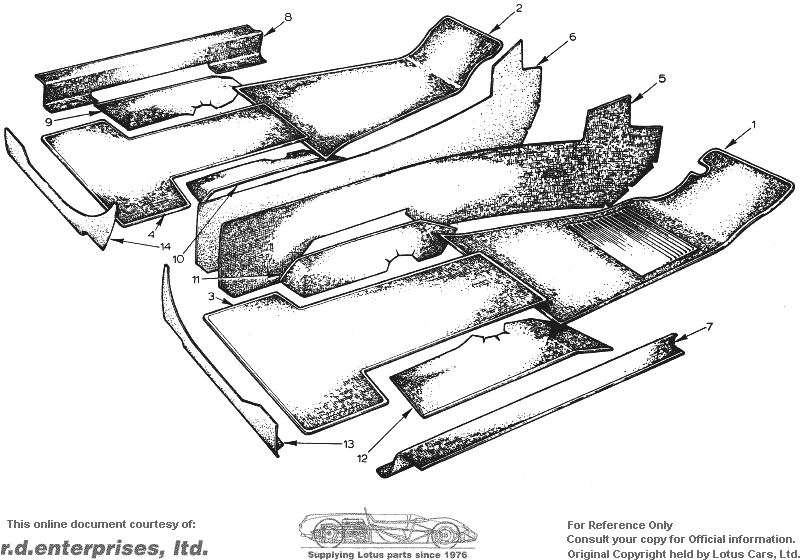

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| VC 1 | Carpet, RH, Front Floor, RHD | A075V6028S | * | | | 1 | | | |
| Carpet, RH, Front Floor, RHD | A076V1528K | | * | | 1 | | | |
| Carpet, RH, Front Floor, LHD | A075V0326Z | * | | | | 1 | 1 | |
| Carpet, RH, Front Floor, LHD | A076V1530K | | * | | | 1 | 1 | |
| VC 2 | Carpet, LH, Front Floor, LHD | A075V6029S | * | | | | 1 | 1 | |
| Carpet, LH, Front Floor, LHD | A076V1529K | | * | | | 1 | 1 | |
| Carpet, LH, Front Floor, RHD | A075V0329Z | * | | | 1 | | | |
| Carpet, LH, Front Floor, RHD | A076V1527K | | * | | 1 | | | |
| VC 3 | Carpet, Rear, RH | A075V0334Z | * | * | 1 | | | | |
| VC 4 | Carpet, Rear, LH | A075W0335Z | * | * | 1 | | | | |
| VC 5 | Carpet, Tunnel Side, R.H. | A075V0630Z | * | | 1 | | | | |
| Carpet, Tunnel Side, RH | A076V1532K | | * | 1 | | | | |
| VC 6 | Carpet, Tunnel Side, LH | A075V0631Z | * | | 1 | | | | |
| Carpet, Tunnel Side, LH. | A076V1531K | | * | 1 | | | | |
| VC 7 | Carpet, Door Sill, RH | A075V0330Z | * | | 1 | | | | |
| Carpet, Dooe Sill, RH | A076V1534K | | * | 1 | | | | |
| VC 8 | Carpet, Door Sill, LH | A075V0331Z | * | | 1 | | | | |
| Carpet, Door Sill, LH | A076V1533K | | * | 1 | | | | |
| VC 9 | Carpet, Seat Mounting, LH, Outboard | A075V1193Z | * | | 1 | | | | |
| Carpet, Seat Mounting, LH, Outboard | A076V1535K | | * | 1 | | | | |
| VC 10 | Carpet, Seat Mounting, LH, Inboard | A075Vl194Z | * | | 1 | | | | |
| Carpet, Seat Mounting, LH, Inboard | A076V1537K | | * | 1 | | | | |
| VC 11 | Carpet, Seat Mounting, RH, Inboard | A075V1195Z | * | | 1 | | | | |
| Carpet, Seat Mounting, RH, Inboard | A076V1538K | | * | 1 | | | | |
| VC 12 | Carpet, Seat Mounting, RH Outboard | A075VIt96Z | * | | 1 | | | | |
| Carpet, Seat Mounting, RH, Outboard | A076VI536K | | * | 1 | | | | |
| VC 13 | Carpet, Rear Beam Kickplate, RH | A075V1132Z | * | | 1 | | | | |
| VC 14 | Carpet, Rear Beam Kickplate, LH | A075Vl133Z | * | | 1 | | | | |
| Carpet, Rear Parcel Shelf | A076VI320K | | * | 1 | | | | |
| Adhesive | A036B6204V | * | * | AR | | | | |
| Twin Clip | A075W6063Z | * | * | 8 | | | | |
| Screw | A075W5037Z | * | * | 8 | | | | |
