ELITE/ECLAT PARTS MANUAL

Section FA -- Gearbox - Lotus 5 - Casings, Speedo Drive & Mounting

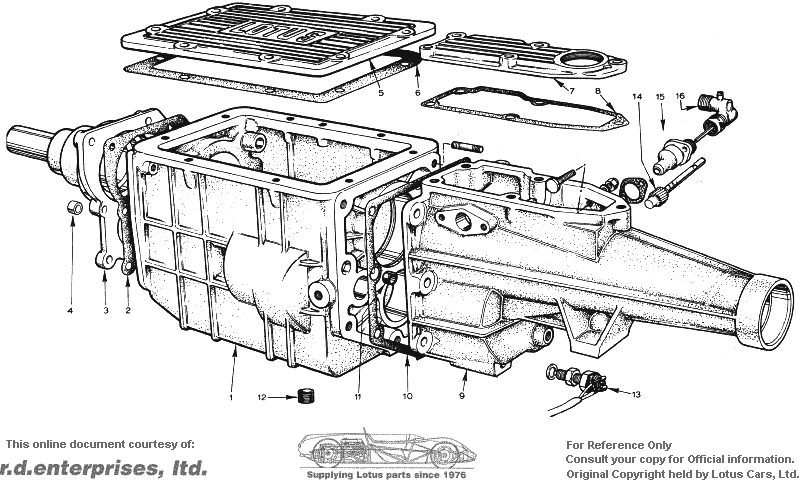

PLATE Ref. No.	DESCRIPTION	PART NO.					REMARKS
	Assembly, Gearbox, 5 Speed	A075F0738W	*	*	*	1
FA 1	Casing, Main	B050F0240H	*	*	*	1
FA 2	Gasket, Front Cover	A050F0270ZE	*	*	*	1
FA 3	Front Cover Assy.	A075F0747WL	*	*	*	1	Without Oil Seal.
	Seal Front Cover (See Item FC 2)	A075F6043F	*	*	*	1	Replaces A050F6076Z
FA 4	Dowel, Main Casing to Bell Housing	A050F0253ZH	*	*	*	2
FA 5	Cover Plate, Main Casing	A050F0241ZC	*	*	*	1
FA 6	Gasket, Cover Plate/Main Casing	A050F0271ZK	*	*	*	1
FA 7	Cover Plate, Tailshaft Housing	A075F0228ZC	*	*	*	1
FA 8	Gasket, Cover Piate/Taiishaft Housing	A0S0F0234Z	*	*	*	1
FA 9	Housing, Tailshaft	C075F0227ZF	*	*	*	1	Up to G.Box nos. A2480, A *? to A2487 & A2495, Inc.
	Bearing, Tailshaft Housing	A075F6003ZL	*	*	*	1	Up to G.Box nos. A2480, A *? to A2487 & A2495, Inc.
	Housing, Tailshaft	D075F0227F	*	*	*	1	G. Box nos. A2481, A2488 *? A2494 & A2496 on, Inc. Bulletin 1978/34 refers.
	Bearing, Tailshaft Housing	A076F6024FB	*	*	*	1	G. Box nos. A2481, A2488 *? A2494 & A2496 on, Inc. Bulletin 1978/34 refers.
FA 10	Gasket, Tailshaft Housing/Main Casing	A050F0272ZD	*	*	*	1
FA 11	Dowel, Tailshaft Housing/Main Casing	A050F0254ZB	*	*	*	2
FA 12	Plug, Oil Filter	A050F6083ZE	*	*	*	2
FA 13	Switch, Reverse Lights	A036M6304ZC	*	*	*	1
	Washer,	A075W4060Z	*	*	*	1
	Nut, Locking	A075W3015ZB	*	*	*	1
FA 14	Speedo Driven Gear	A075F6007ZJ	*	*	*	1	17 Teeth - 3.7 Diff.
	Speedo Driven Gear	A075F6040F	*	*	*	1	18 Teeth, Colour Black - 4.1 *?
FA 15	Housing, Speedo Gear	A075F6006ZD	*	*	*	1
	Seal, Speedo Drive	A075F6014ZL	*	*	*	1
FA 16	Right Angle Adaptor	B075F0231WC	*	*	*	1
	Gasket, Right Angle Adaptor/Housing	A075F6016ZK	*	*	*	1
	Gearbox Mounting Assy.	B075F6001ZE	*	*	*	1
	Mounting Snubber	A075F0291ZK	*	*	*	1
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
