ELITE/ECLAT PARTS MANUAL

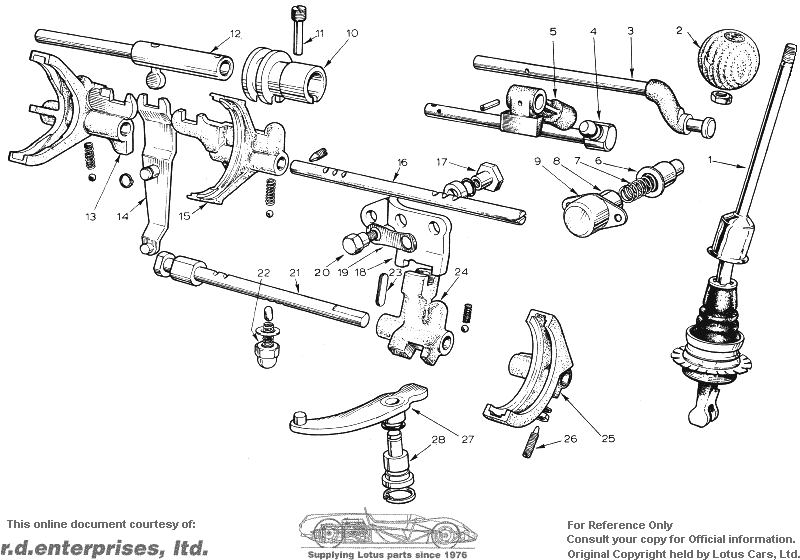

Section FB -- Gearbox - Lotus 5 - Selector Mechanism & Gear Lever


PLATE Ref. No.	DESCRIPTION	PART NO.					REMARKS
FB 1	Gear Lever Assy.	B050F6094Z	*	*	*	1
	Circlip, Rubber Spring/Nylon Ball	A075F6070F	*	*	*	1
FB 2	Knob, Gear Lever, 5 Speed	A075F0323F	*	*	*	1
	Locknut	A075F6022F	*	*	*	1
FB 3	Selector Shaft, Cranked	C075F0229HK	*	*	*	1	Up to G.Box no. A1947, In *?
	Selector Shaft, Cranked	D075F0229H	*	*	*	1	From G.Box no. A1948 on *?
	Damper Bush	A075F6063F	*	*	*	1	,From G.Box no. A1948 on *?
FB 4	Extension Shaft	B050F0255ZG	*	*	*	1
	Ball Joint	A075F0320HH	*	*	*	1
	Washer	A075W4020ZB	*	*	*	2
	Roll-Pin	A050F6080ZA	*	*	*	1
FB 5	Joint Socket	A075F0326ZL	*	*	*	1
FB 6	Cross Gate Plunger	A050F6091ZA	*	*	*	1
FB 7	Spring	A075F0238ZJ	*	*	*	1
FB 8	Spacer Ring	A050F0284ZJ	*	*	*	1
FB 9	Spring Housing	A050F6092ZF	*	*	*	1
FB 10	Spool Interlock	A050F0257ZF	*	*	*	1
FB 11	Retainer	A050F0258ZL	*	*	*	1
FB 12	Selector Shaft	B050F0296WB	*	*	*	1
	Rod	A050F0256ZA	*	*	*	1
	Lug	A050F0305BJ	*	*	*	1
	Roll Pin	A050F6067ZB	*	*	*	1
FB 13	Fork, 3rd/4th Selector	B050F0286BD	*	*	*	1
	Ball, Detent	A050F6067ZC	*	*	*	1
	Spring, Detent	A050F6086ZJ	*	*	*	1
FB 14	Lever, Reverse Operating/5th	A050F0244BK	*	*	*	1
	Circlip	A050F6074ZD	*	*	*	1
FB 15	Fork, 1st/2nd Selector	B050F0246ZK	*	*	*	1
	Ball, Detent	A050F6067ZC	*	*	*	1
	Sazing	A050F6086ZJ	*	*	*	1
FB 16	Selector Shaft, 1st/2nd, 3rd/4th.	B050F0298BE	*	*	*	1
	Grub Screw	A075W7007ZE	*	*	*	1
FB 17	Retainer, Interlock Plate	A050F0262ZJ	*	*	*	2
	"0" Ring Retainer	A050F6082ZL	*	*	*	2
	Space Retainer	A050F0268ZF	*	*	*	2
FB 18	Interlock Plate	A050F6051ZK	*	*	*	1
	Shims	A050F6099ZH	*	*	*	AR
FB 19	Plate Locking	A050F6089ZB	*	*	*	1
FB 20	Bolt, Interlock Plate Securing	A050F6088ZH	*	*	*	2
FB 21	Shaft, Selector, 5th/Rev.	A050F6053ZJ	*	*	*	1
FB 22	Plug, Detent	A050F6057ZG	*	*	*	1
	Washer	A050F6015ZF	*	*	*	1
	Spring	A050F6038ZL	*	*	*	1
	Plunger	A050F6098ZC	*	*	*	1
FB 23	Plunger	A050F6021ZC	*	*	*	1
FB 24	Reverse Selector Lock	A050F6047ZA	*	*	*	1
	Spring, Detent	A050F6037ZF	*	*	*	1
	Ball, Detent	A050F6062ZK	*	*	*	1
FB 25	Fork, 5th Selector	A050F6004ZF	*	*	*	1
FB 26	Grub Screw	A050F6068ZG	*	*	*	1
	Locknut	A050F6064ZJ	*	*	*	1
	Washer	A050F6065ZC	*	*	*	1
FB 27	Lever, Reverse Operating	B050F6048ZK	*	*	*	1
FB 28	Pivot Pin	B050F6026ZK	*	*	*	1
	Circlip	A050F6063ZD	*	*	*	1
	"0" Ring	A050F6066ZH	*	*	*	1
	Circlip, Lever Securing	A050F6074ZD	*	*	*	1
