ELITE/ECLAT PARTS MANUAL

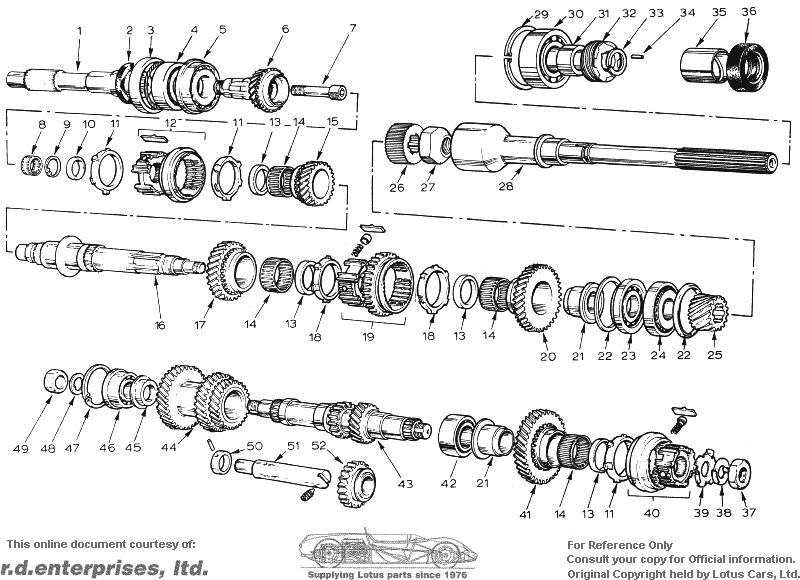

Section FC -- Gearbox - Lotus 5 - Gears & Shafts


PLATE Ref. No.	DESCRIPTION	PART NO.					REMARKS
FC 1	Shaft, Input	C050F0247Z	*	*	*	1
FC 2	Seal, Oil, Front Cover	A075F6043F	*	*	*	1	Replaces A050F6076ZC
FC 3	Bearing Locating Ring	A075F0306ZK	*	*	*	1
	Shim, 0.20 mm (0.008")	A075F0307AC	*	*	*	AR	Selective
	Shim, 0.25 mm (0.010")	A075F0307BG	*	*	*	AR	Selective
	Shim, 0.30 mm t0.012")	A075F0307CL	*	*	*	AR	Selective
FC 4	Bearing, Ball	A075F6015ZE	*	*	*	1
FC 5	Bearing, Roller	A050F6070ZF	*	*	*	1
FC 6	Shaft, 1st Motion, c/w 4th Gear	B050F0283BL	*	*	*	1
FC 7	Bolt, Allen Head	A075W7001ZH	*	*	*	1
FC 8	Bearing, Needle Roller	A050F6016ZL	*	*	*	1
FC 9	Circlip	A050F6018ZK	*	*	*	1
FC 10	Spacer, Selective 0.093" - 0.094"	A050F6102ZC	*	*	*	AR	Colour Code - Yellow
	Spacer, Selective 0.095" - 0.096"	A050F6106ZA	*	*	*	AR	Colour Code - Plain
	Spacer, Selective 0.097" - 0.098"	A050F6034Z	*	*	*	AR	Colour Code - Black
	Spacer, Selective 0.099" - 0.100"	A050F6105ZG	*	*	*	AR	Colour Code - Orange
	Spacer, Selective 0.101" - 0.102"	A050F6104ZB	*	*	*	AR	Colour Code - Blue
	Spacer, Selective 0.103" - 0.104"	A050F6103ZH	*	*	*	AR	Colour Code - Green
FC 11	Ring, Baulk	A050F6043ZC	*	*	*	3
FC 12	Assy, 3rd/4th Synchronizer	A075F0744HB	*	*	*	1	Up to g/box no A1484, A1486 to *? A1488 and A1491
	Assy, 3rd/4th Synchronizer	A075F0749H	*	*	*	1	G/boxes A1485, A1489, A1490 ? A1492 on. Replaces A075F0744 ? when that is not available. See Bulletin 1976/08.
FC 13	Spacer	A050F6028ZE	*	*	*	4	Superseded by A075F6068F
FC 14	Bearing, Needle Roller	A050F6027ZL	*	*	*	4	Superseded by A075F6068F
	Bearing, Needle Roller	A075F6068F	*	*	*	4
FC 15	Gear, 3rd Speed	A050F6044ZH	*	*	*	1
FC 16	Shaft, 3rd Motion	A050F6030ZD	*	*	*	1
FC 17	Gear, 2nd Speed	A050F6040ZK	*	*	*	1	Up to g/boxes no A1484, A1486 *? A1488 and A1491
	Gear, 2nd Speed	A075F6045F	*	*	*	1	G/boxes A1485, A1489, AI490 ? A1492 on. Replaces A050F6040 ? in conjunction with A075F6046F ? that is not available. See Bulle ? 1976/08.
FC 18	Ring, Baulk, 1st/2nd	A050F6041ZD	*	*	*	1	Up to g/boxes A1484, A1486 to *? and A1491
	Ring, Baulk, 1st/2nd	A075F6046F	*	*	*	2	G/boxes A1485, A1489, A1490 ? A1492 on. Replaces A050F6041 ? coniunction with A075F604,SF an ? A075F6044F when that is not ava ? See Bulletin 1976/08.
FC 19	Assy, 1st/2nd Synchronizer	A050F6061ZE	*	*	*	1	Up to g/boxes A1484, A1486 to *? and A1491
	Assy, 1st/2nd Synchronizer	A075F6047F	*	*	*	1	G/boxes A1485, A1489, A1490 ? A1492 on. Replaces A050F6039 ? when that is not available. See *? Bulletin 1976/08.
FC 20	Gear 1st Speed	A050F6039ZE	*	*	*	1	Up to g/boxes A1484, A1486 to *? and A1491
	Gear 1st Speed	A075F6044F	*	*	*	1	G/boxes A1485, A1489, A1490 ? A1492 on. Repiaces A050F6039 ? conjunction with A075F6046F wh ? is not available. See Bulletin 1 ?
FC 21	Hub, Bearing, Oversize	A0S0F6031ZJ	*	*	*	AR	Total 2 Hubs for Gearbox
	Hub, Bearing, Standard	A050F6036ZA	*	*	*	AR	Total 2 Hubs for Gearbox
	Hub, Bearing, Undersize	A050F6096ZD	*	*	*	AR	Total 2 Hubs for Gearbox
FC 22	Ring, Snap (1.62 - 1.65 mm)	A050F6006ZE	*	*	*	AR	Colour Code - Orange
	Ring, Snap (1.66 - 1.69 mm)	A050F6007ZK	*	*	*	AR	Colour Code - Blue
	Ring, Snap (1.70 - I .73 mm)	A050F6008ZD	*	*	*	AR	Colour Code - Natural
	Ring, Snap (1.74 - 1.76 mm)	A050F6009ZJ	*	*	*	AR	Colour Code - Green
FC 23	Bearing, Ball	A050F6073ZK	*	*	*	1	Superseded by A075F6067F
	Bearing, Ball	A075F6067F	*	*	*	1
FC 24	Bearing, Roller	A050F6072ZE	*	*	*	1
FC 25	Pinion, Final Drive	A050F0269BC	*	*	*	1
FC 26	Adaptor, Output Shaft	A050F0249ZK	*	*	*	1
FC 27	Nut Retaining	A050F0263BF	*	*	*	1
FC 28	Shaft, Output	A075F0226F	*	*	*	1
FC 29	Circlip	X036D6006ZC	*	*	*	1
FC 30	Bearing	A075F6008ZC	*	*	*	1
FC 31	Spacer, Bearing	A075F0236ZK	*	*	*	1
FC 32	Drive Gear, Speedo	A075F6002ZF	*	*	*	1
FC 33	Circlip	A075F6004ZE	*	*	*	1
FC 34	Key, Speedo Gear	A075F6005ZK	*	*	*	1
FC 35	Bush	A075F6003ZL	*	*	*	1
FC 36	Oil Seal	A075F6010ZB	*	*	*	1
FC 37	Nut, Retaining	A050F6005ZL	*	*	*	1
FC 38	Washer, Locking	A050F6011ZH	*	*	*	1
FC 39	Retainer, Synchronizer	A050F6010ZC	*	*	*	1
FC 40	Assy, 5th Synchronizer	A050F6046ZG	*	*	*	1	Up to g/boxes A1484, A1486 to *? and A1491
	Assy, 5th Synchronizer	A075F6051F	*	*	*	1	G/boxes A1485, A1489, A1490 ? A1492 on. Replaces A050F604 ? when that is notavailable. See *? Bulletin 1976/08.
FC 41	Gear, 5fh Speed	A050F6056ZB	*	*	*	1
FC 42	Bearing, Layshaft, Rear	A050F6025ZA	*	*	*	1	Up to g/box A2015.
	Bearing, Layshaft, Rear	A075F6064F	*	*	*	1	G/box A2016 on. Replaces A050F6025ZA, with layshaft B050F6019F, when not available ? Also services g/boxes up to A20 ? spacer A075F6069F. See Bulletin 1978/01
FC 43	Layshaft	A050F6019ZD	*	*	*	1	Up to g/box A2015
	Layshaft	B050F6019F	*	*	*	1	G/box A2016 on. Replaces A050F6019ZD with bearing A075F6064F when not available *? Bulletin 1978/01.
FC 44	Laygear	A050F6029ZK	*	*	*	1
FC 45	Spacer, Laygear	A050F6014ZA	*	*	*	1
FC 46	Bearing, LayshaFt, Front	A050F6017ZE	*	*	*	1
FC 47	Circlip	A05CF6024ZG	*	*	*	1
FC 48	Washer, Locking	A050F6023ZB	*	*	*	1
FC 49	Nut, Layshaft	A050F6022ZH	*	*	*	1
FC 50	Collar, Idler Shaft	A050F6035ZG	*	*	*	1
	Pin, Collar Securing	A050F6067ZB	*	*	*	1
FC 51	Shaft, Reverse Idler Gear	A050F6050ZE	*	*	*	1
	Grub Screw	A075W7007ZE	*	*	*	1
FC 52	Gear, Reverse Idler	A050F6060ZD	*	*	*	1
	Oil, EP90S	A075F6021V	*	*	*	AR
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
