Elite/Eclat Parts Manual -- Section FD

ELITE/ECLAT PARTS MANUAL

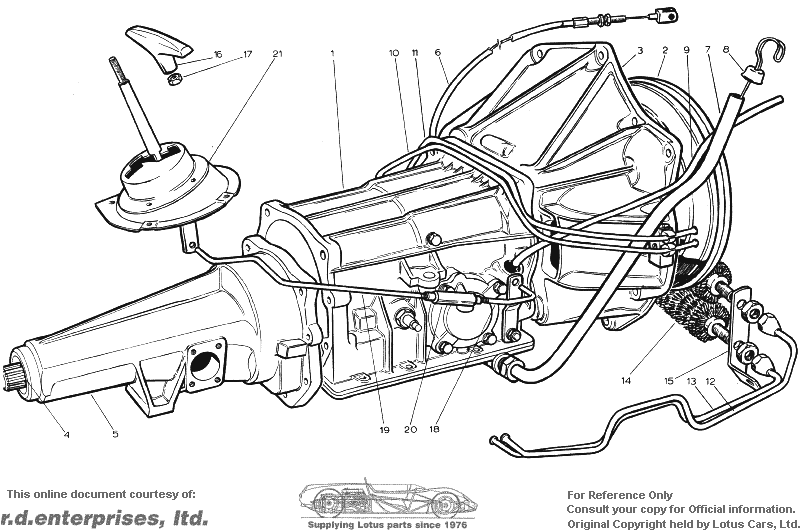

Section FD -- Gearbox - Automatic - Cooler, Cables & Mounting


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
FD 1	Automatic Gear box assy.	A075FO745F	*	*	*		1	1		Comprising items 2 - 6
	Automatic gear box assy	A075F0748F	*	*	*				1	Comprising items 2 - 6
FD 2	Torque converter	A075F0328F	*	*	*	1
Not Illus.	Governor assy	A075F0329F	*	*	*	1
Not Illus.	Inhibitor switch	A075F6053F	*	*	*	1
Not Illus.	Valve Bodies assy	A075F6061F	*	*	*	1
FD 3	Bell housing	A075F0330F	*	*	*	1
FD 4	Tail shaft	A075F0332F	*	*	*	1
FD 5	Tail shaft housing	A075F0333F	*	*	*	1
Not Illus.	Tail shaft seal	A075F6052F	*	*	*	1
FD 6	Kick down cable (Dellorto)	A075F0331F	*	*	*		1	1
Not Illus.	Abutment kick down cable	B907E1071K	*	*	*		1	1
FD 6	Kick down cable (Zenith "CD")	A075F0355F	*	*	*				1
Not Illus.	Abutment kick down cable	A907E1156F	*	*	*				1
Not Illus.	Gasket, oil pan	A075F6054F	*	*	*	1
Not Illus.	Gasket, front servo	A075F6055F	*	*	*	1
Not Illus.	Gasket, rear servo	A075F6056F	*	*	*	1
Not Illus.	Gasket, tall shaft housing	A075F6057F	*	*	*	1
Not Illus.	Seal, pump - torque convertor	A075F6058F	*	*	*	1
Not Illus.	Gasket, pump adaptor and Con.support	A075F6059F	*	*	*	1
Not Illus.	Sealing ring, front pump	A075F6060F	*	*	*	1
Not Illus.	Housing, speedo gear	A075F6006F	*	*	*	1
Not Illus.	Gasket, housing, speedo gear	A075F6016Z	*	*	*	1
Not Illus.	Driven gear	A075F6007Z	*	*	*	1
Not Illus.	Driving gear	A075F6002Z	*	*	*	1
Not Illus.	Seal, speedo drive	A075F6014Z	*	*	*	1
Not Illus.	Bolts	A075W1028Z	*	*	*	2
Not Illus.	Spring washers	A075W4046Z	*	*	*	2
Not Illus.	Key, speedo gear	A075W6005Z	*	*	*	1
Not Illus.	Circllp	X036D6006Z	*	*	*	1
FD 7	Oil filler pipe and tube nut	A075F0334F	*	*	*	1
FD 8	Dipstick	A075F0335F	*	*	*	1
FD 9	Breather tube	A075F0336F	*	*	*	1
Not Illus.	Heatshleld, auto inhibitor switch	B075F0356F	*	*	*	1
	Washer plain 3/16"	A075W4004Z	*	*	*	1
	Screw M5 x 12	A075W1021Z	*	*	*	1
	Edge clip, spire	A075W6054Z	*	*	*	1
FD 10	Bundy pipe, return over gear box	A075F0338F	*	*	*	1
FD 11	Bundy pipe, feed over gear box	A075F0337F	*	*	*	1
FD 12	Bundy pipe, feed to all cooler	A075F0339F	*	*	*	1
FD 13	Bundy pipe, return from all cooler	A075F0340F	*	*	*	1
Not Illus.	Flexlble pipe	A075F6023F	*	*	*	2
	Hose clips	AO36S6160Z	*	*	*	4
	Bracket, pipes to gear box	A075F0341F	*	*	*	1
	Pipe clip	A075F6024F	*	*	*	2
FD 14	Oil cooler	A075F0327F	*	*	*	1
FD 15	Mounting bracket RH	A075F0346F	*	*	*	1
Not Illus.	Mounting bracket LH	A075F0347F	*	*	*	1
	Nut, bracket/cooler	A075W3017Z	*	*	*	2
	Washer	A075W4038Z	*	*	*	2
	Screw, 6mm x 20, bracket/cooler	A075W1030W	*	*	*	1
	Nut, nyloc, 6 mm	A075W3009W	*	*	*	1
	Washer	A075W4013Z	*	*	*	1
	Screw, 8 mm x 25, bracket/body	A075W1039Z	*	*	*	2
	Washer, 8 mm	A075W4021Z	*	*	*	2
	Nut, nyloc	A075W3010Z	*	*	*	2
FD 16	Handle gear lever	A075F6025F	*	*	*	1
FD 17	Locknut	A075F6035F	*	*	*	1
	Operating rod assy.	A075F0344F	*	*	*	1				Comprising items FD18 to FD *?
Not Illus.	Rod clip	A075F6032E	*	*	*	1
FD 18	Rod end LH thread	A075E6033F	*	*	*	1
	Locknut Ľ" UNF	A075W3038E	*	*	*	1
FD 19	Rod end, RH thread	A075F6039F	*	*	*	1
FD 20	Adiuster	A075F6034F	*	*	*	1
	Washer locking	A075W4014Z	*	*	*	1
	Lever and rod assy	A075F0345F	*	*	*	1
	Nytoc nut Ľ" UNF	A075W3035F	*	*	*	1
	Washer	A075W4065Z	*	*	*	1
	Bolt special	A 075W2093F	*	*	*	1
	Washer	A075W4024Z	*	*	*	1
	CIevls pin	A 075W6034Z	*	*	*	1
	Spring cllp	A075W6175Z	*	*	*	1
	Washer	A075W4000Z	*	*	*	1
FD 21	Selector lever assy	A075F0342F	*	*	*	1
	Transmission fluid	A075H6013V	*	*	*	AR				Capacity 4.40 ltrs.
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
