ELITE/ECLAT PARTS MANUAL

Section FF -- Gearbox - 4 Speed - Speedometer Drive & Mounting

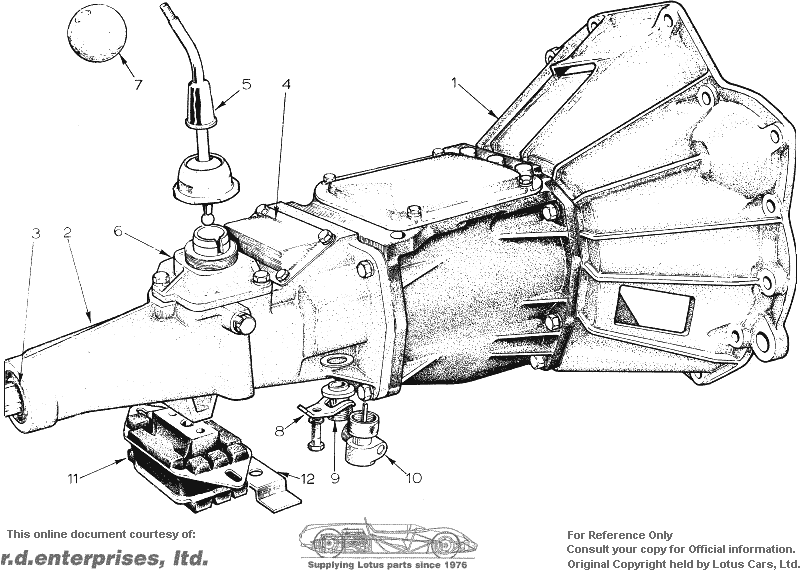

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
Gear Box, 4 Speed Assy,A076F0746J ** 1
FF 1Bell HousingA076F0414K ** 1
Gasket, Bell Housing to G/BoxA076F6048F ** 1
Bolt 7/16" x 1 1/8"A075F6011F ** 6
Spring WasherA076F6012F ** 6
FF 2Tailshaft HousingA076F0401G ** 1
Gasket, Tail Shaft Hsg. to G/BoxA076F6010F ** 1
Bolt 7/18" x 1 1/8"A076F6011F ** 4
Spring WasherA076F6012F ** 4
Not Illus.Bush, Tall Shaft HousingA076F6024F ** 1
FF 3Oil Seal - Tailshaft HousingA075F6010F ** 1 Replaces A076F6025F
FF 4Cover Assy, SelectorA076F0409K ** 1
Joint, Cover AssyA076F0412F ** 1
Bolt, M6 x 10A075W1026Z ** 4
WasherA075W4015Z ** 4
FF 5Gear Lever Assy.A076F0415K ** 1
FF 6Socket, Gear ChangeA076F0404F ** 1
Screw, IYL8 X 30A075W1038Z ** 3
Spring WasherA075W4036Z ** 3
FF 7Gear KnobA076F0416F ** 1
Not Illus.Gear, Speedo, Drive, DriverA076F6052F ** 1 Worm Gear - 6 Start
Not Illus.Gear, Speedo, Drive, DrivenA076F6026F ** 1 20 Teeth
Not Illus.Bearing, Driven GearA076F6027F ** 1 Hub
Not Illus."O" Ring, Speedo DriveA076F6028F ** 1
Not Illus.SealA076F6029F ** 1
FF 8ClampA076F6030F ** 1
BoltA076F6031F ** 1
SpringwasherA076F6032F ** 1
FF 9AdaptorA076F0419F ** 1
FF 10Right Angle DriveA026F6000Z ** 1
FF 11 Gear Box MountingB075F6001Z ** 1
FF 12Mounting SnubberA075F0291Z ** 1
Screw M8 x 2.5A075W1039Z ** 2
Nut, Nyloc, M8A075W3010Z ** 2
Washer, PlainA075W4021Z ** 2
Bolt, M12 x 60A075W2070Z ** 1
Washer, Plain, M12A075W4028Z ** 1
Spring WasherA075W4038Z ** 1
