Elite/Eclat Parts Manual -- Section GA

ELITE/ECLAT PARTS MANUAL

Section GA -- Wheels & Tyres

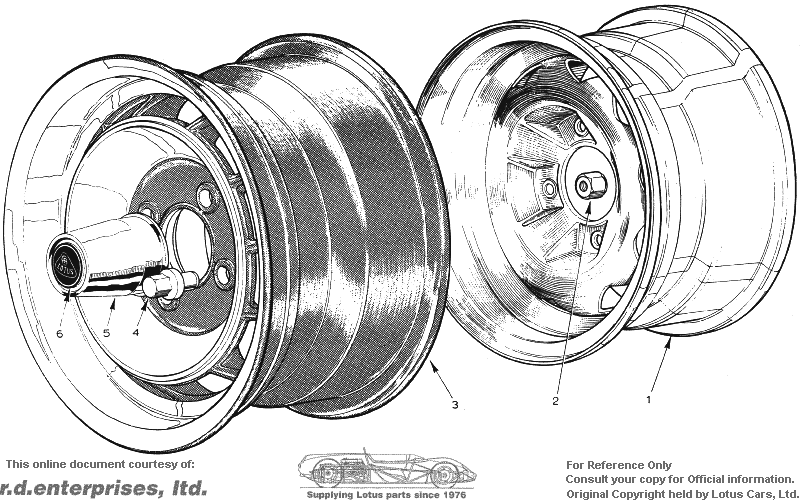

PLATE Ref. No.	DESCRIPTION	PART NO.										REMARKS
	Steel Wheel and Tyre Assembly	C075G0044W		*			*		5			Eclat 520 only
GA 1	Steel Wheel	B028G0001Z		*			*		5			Eclat 520 only
	Tyre 185,/70 x 13 HR	B074G6002F		*			*		5			Eclat 520 only
	Escutcheon	A076G6002F		*			*		4			Eclat 520 only
	Badge	A065G6007ZE		*			*		4			Eclat 520 only
GA 2	Nuts, Steel Wheel	A076G6001F		*			*		16			Eclat 520 only
	Rim Embellisher	X026G0015ZC		*			*		4			Eclat 520 only
	Lotus Alloy Wheel & Tyre Assembly	A083G0060F	*	*	*		*	*	5			Fitted with Goodye *?
GA 3	Lotus Alloy Wheel	H075G0041H	*	*	*		*	*	5
	Tyre, Goodyear NCT 205/60 VR14	A083G0061H	*	*	*		*	*		5		0,
	Valve, Tyre, Lotus Alloy Wheel	A075G6005F	*	*	*		*	*	5
GA 4	Nut, Wheel, (ž AF Spanner)	A075G0042Z	*	*	*		*	*	16			Lotus Alloy Wheels
	Nut, Wheel, (22 mm AF Spanner)	A075G6006F	*	*	*		*	*	16			Lotus Alloy Wheels
GA 5	Escutcheon, Wheel Badge	A075G0043Z	*	*	*		*	*	4
GA 6	Badge, Wheel Centre	B074G6004Z			*	*	*	*	4
	Speedllne Wheel & Tyre Assembly	B085G4055F			*	*	*	*	5			Fitted with Goodye *?
	Speedllne Alloy Wheel	C084G0056H			*	*	*	*	5
	Tyre, Goodyear NCT 205/60 VR14	A083G0061H			*	*	*	*	5
	Valve, Tyre, Speedllne Wheel	B085G6024H			*	*	*	*	5
	Nut, Speedline Wheel	A079G6011F			*	*	*	*	16
	Badge, Wheel Centre	A079G4006F			*	*	*	*	5
	Spring Ring, Wheel Badge	A079G6012F			*	*	*	*	5
	Carrier Assembly, Spare Wheel	B075G0048W	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Frame, Spare Wheel Carrier	B075G0047Z	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Tray, Spare Wheel Carrier	A075G0050Z	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Pop Rivet, Tray to Frame	A075W6092Z	*		*	*	*	*	5			Elite S1 with Stage 1 *?
	Washer, Pop Rivet	A075W4001Z	*		*	*	*	*	5			Elite S1 with Stage 1 *?
	Washer, 12 mm	A075W4028Z	*		*	*	*	*	2			Elite S1 with Stage 1 *?
	Split Pin, Frame Retaining	A075W6009Z	*		*	*	*	*	2			Elite S1 with Stage 1 *?
	Hoist Assembly, Spore Wheel	C075G0049J	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Upstop, Hoist	A083G0058K	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Jacknut, MS, Hoist Fix	A076W3043F	*		*	*	*	*	2			Elite S1 with Stage 1 *?
	Setscrew, M5 x 20 Hoist Fix	A075WS084F	*		*	*	*	*	2			Elite S1 with Stage 1 *?
	Seal, Hoist to Floor	A075G6002Z	*		*	*	*	*	1			Elite S1 with Stage 1 *?
	Strap, Retaining	A075G0054F			*	*	*	*			1	Germany only
	Cable Clamp	A075G6004H			*	*	*	*			2	Germany only
	Shackle Pin, Captive	A075G6003H			*	*	*	*			1	Germany only
	Clamp Assembly, Spare Wheel	BX75G0053Z	*	*			*	*	1			Elite S1 with Stage 2 *?
	Setscrew, M10 x 30	A075W1049ZB	*	*			*	*	1			Elite S1 with Stage 2 *?
	Nut, M10	A075W3023F	*	*			*	*	1			Elite S1 with Stage 2 *?
	Washer, Shakeproof, 10 mm	A075W4049Z	*	*			*	*	1			Elite S1 with Stage 2 *?
