Esprit S1, S2, S2.2 PARTS MANUAL

Section BD -- Body -- Glass

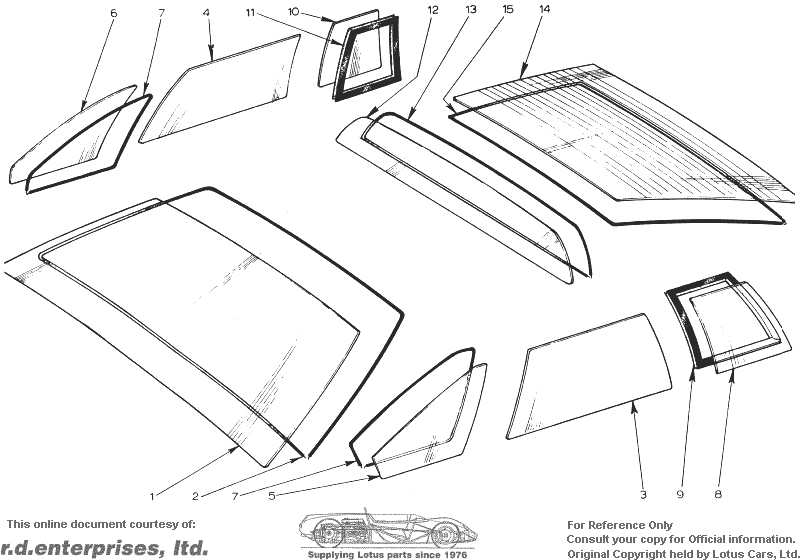

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
BD 1Windscreen, ClearA079U4014F**1
Windscreen, TintedA079U4023F**1
SpacerA075UO588ZH**10 4 Top & Bottom, 1 each side.
BD 2SolbitA079U4206F**1
BD 3Door Glass, LH, ClearA0791J4019F**1
Door Glass, LH, TintedA079U4029F**1
BD 4Door Glass, RH, ClearA079U4020F**1
Door Glass, RH, TintedA079U4028F**1
BD 5Door ¼ Light Glass, LH, ClearA079U4017F**1
Door ¼ Light Glass, LH, TintedA079U4027F**1
BD 6Door ¼ Light Glass, RH, ClearA079U4018F**1
Door ¼ Light Glass, RH, TintedA079U4026F**1
BD 7SolbitA079U4209F**1
BD 8Rear ¼ Window, LH, ClearA079U4021F**1 Up to Unit Nos. 600G, 830H, 227J, 134S, & 121T, Inc. (removeable rear ¼ windows).
Rear ¼ Window, LH,A079U4031F**1 Up to Unit Nos. 600G, 830H, 227J, 134S, & 121T, Inc. (removeable rear ¼ windows).
Seal, Glass to FrameA079U4161F**1 Up to Unit Nos. 600G, 830H, 227J, 134S, & 121T, Inc. (removeable rear ¼ windows).
BD 9Seal, Body to FrameA079V6017V**1 1¼m length, Up to Unit Nos. 600G, 830H, 227J, 134S, & 121T, Inc. (removeable rear ¼ windows).
BD 8Rear ¼ Window, LH, ClearA079U4549F *1 From Unit Nos. 601G, 831H, 228J, 1355, 122T, Inc. (Direct Glazed Rear ¼ Windows).
Rear ¼ Window, LH, TintedA079U4551F *1 From Unit Nos. 601G, 831H, 228J, 1355, 122T, Inc. (Direct Glazed Rear ¼ Windows).
Solbit 10mmA075B6121V *1 1.5m length, From Unit Nos. 601G, 831H, 228J, 1355, 122T, Inc. (Direct Glazed Rear ¼ Windows).
BD 10Rear ¼ Window, RH, ClearA079U4022F**1 Up to Unit Nos. 600G, 830H, 227J, 134S & 121T, Inc. (removeable rear ¼ windows).
Rear ¼ Window, RH, TintedA079LJ4030F**1 Up to Unit Nos. 600G, 830H, 227J, 134S & 121T, Inc. (removeable rear ¼ windows).
Seal, Glass to FrameA079U4161F**1 Up to Unit Nos. 600G, 830H, 227J, 134S & 121T, Inc. (removeable rear ¼ windows).
BD 11Seal, Body to FrameA079V6017V**1 1¼m length, Up to Unit Nos. 600G, 830H, 227J, 134S & 121T, Inc. (removeable rear ¼ windows).
BD 10Rear ¼ Window, RH, ClearA079U4548F *1 From Unit Nos. 601G, 831 H, 228J, 135S, & 122T, Inc. (direct glazed rear ¼ windows).
Rear ¼ Window, RH, TintedA079U4550F *1 From Unit Nos. 601G, 831 H, 228J, 135S, & 122T, Inc. (direct glazed rear ¼ windows).
Solbit 10mmA079B6121V *1 1.5m length, From Unit Nos. 601G, 831 H, 228J, 135S, & 122T, Inc. (direct glazed rear ¼ windows).
BD 12Bulkhead glassA079U4032F**1
BD 13SolbitA079U4211F**1
BD 14Tailgate Glass, Heated, ClearB079LM016F**1
SpacerA075U0588ZH**8
BD 15SolbitA079LM207F**1
Solbit PrimerA050B6184VJ**1 10cc
