Esprit S1, S2, S2.2 PARTS MANUAL

Section BEB -- Body -- Engine Bay Cooling

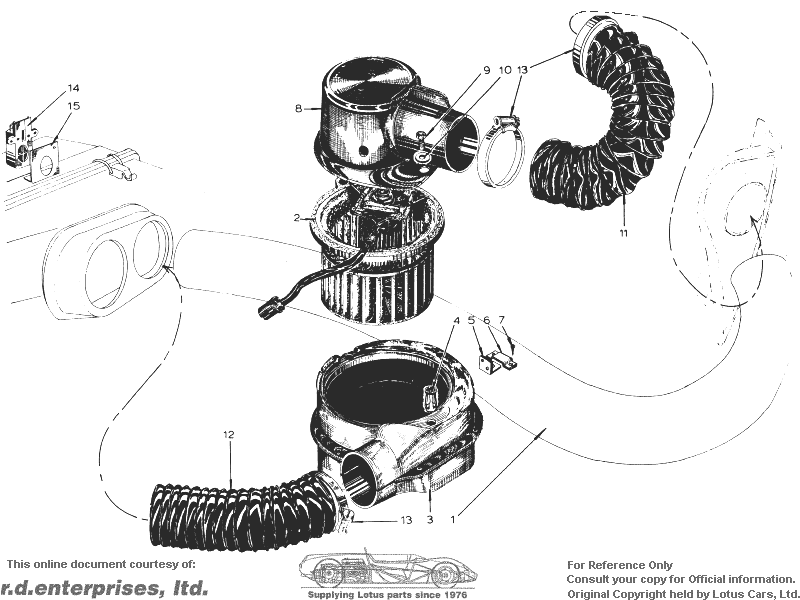

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
ENGINE BAY COOLING SYSTEM *1 TEMPERATE CLIMATES
BEB 1Flexible Trunking, Ventilation Duct to Engine CoverA079K4083K *1
Hose ClipA079K60I7F *1
*1 HIGH AMBIENT TEMPERATURE CLIMATES
BEB 2Blower MotorA075P6058F *1
BEB 3Motor Casing AssyA079K4099J *1
Motor Casing UpperA079K4072K *1 Part of Assy.
Motor Casing LowerA079K4048K *1 Part of Assy.
Pop Rivets (Casing Halves)A075W6086ZG *4 Part of Assy.
WashersA075W4001ZF *4 Part of Assy.
BEB 4Jacknuts (Casing Upper)A076W3043F *3 Part of Assy.
BEB 5Brackets, Motor CaseA079V4147K *2 Part of Assy.
Rivets, Bracket to CaseA075W6086ZG *4 Part of Assy.
WashersA075W4001ZF *4 Part of Assy.
BEB 6Bracket, Case to FloorA079K4071K *1
BEB 7Screws, Case to FloorA075WS011ZJ *3
BEB 8Motor Cover Assy.A079K4100J *1
Motor CoverA079K4073K *1 Part of Assy.
Motor Cover Inlet, RHA079K4074K *1 Part of Assy.
Motor Cover Inlet, LHA079K4075K *1 Part of Assy.
Pop Rivets, Inlet to CoverA075W6086ZG *4 Part of Assy.
WashersA075W4001ZF *4 Part of Assy.
BEB 9Screw M5 & 12, Cover to CasingA075WI021ZE *3
BEB 10WasherA075W4011ZA *3
BEB 11Flexible Trunking, Vent to BlowerA079K4076K *1
BEB 12Flexible Trunking, Blower to EngineA079K4077K *1
BEB 13Hose ClipsA079K6017F *3
BEB 14Air Temperature SwitchA079M6114F *1
BEB 15Bracket, Air Temp. SwitchA079K4058F *1
Pop Rivet, Switch to BracketA075W6071ZJ *4
WasherA075W4001ZF *4
Jumper LoomA079M4066F *1
