Esprit S1, S2, S2.2 PARTS MANUAL

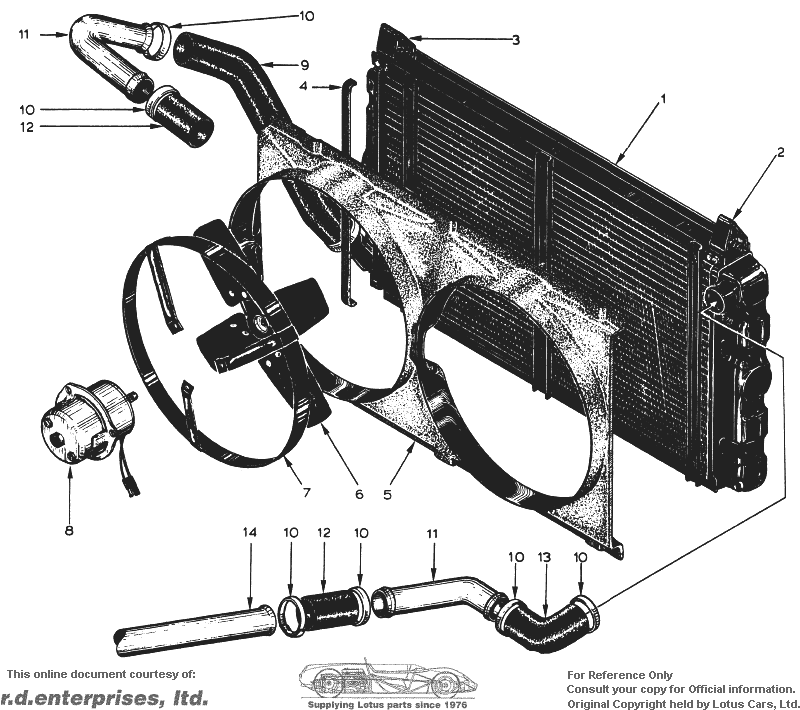

Section KAA -- Cooling System - Late S2


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
All Air Cond. Cars.and Heater Cars Unit Nos. 517G, 519G to 521G, 535G, 536G, 538G, 539G, 541G to 549G, 551G to 558G, 561G to 563G, 565G, 566G, 574G, 576G to 579G & 760G on. 205J, 213J to 217J, 219J, 220J, 224J & 268J on, 831H on, 185S on, 185T on. All Inc.
KAA 1RadiatorA079K4086F *1
Not Illus.Radiator Drain PlugA075K6011F *1
KAA 2Radiator Mounting Bracket, Upper, RHA079K4063F *1
KAA 3Radiator Mounting Bracket, Upper, LHA079K4062F *1
Not Illus.Radiator Mounting Bracket, LowerA079K4061F *2
KAA 4Foam StripX036B6213VC *AR
KAA 5Cowl, Radiator FansA079K4092K *1
Screw, No. 6 x ¾", Pozi, S.T.A075W5028ZF *4 Cowl/Radlator, Top.
Spire Nut, No. 6 A075W6013ZE *4
Screw, No. 6 x ½", Pozi, S.T.A075W5014Z *2 Cowl/Radiator, Bottom.
Spire Nut, No. 6A075W6013ZE *2
KAA 6Fan, 11"A074K6000ZJ *2
KAA 7Fan Cowl, 11 " x Motor MountingC079K4085F *2 Replaces B079K4085F and Spacer Ring A079K4090F.
KAA 8Fan MotorA074M6027ZH *2
ScrewA075W1021ZE *6 Motor to Cowl/Motor Mounting.
WasherA075W4000ZA *6 Motor to Cowl/Motor Mounting.
Nut A075W3008ZL *6 Motor to Cowl/Motor Mounting.
KAA 9HoseB075K0118Z *1
KAA 10Clip, HoseA079K6019F *6
KAA 11Water Pipe, Radiator/Main Water PipeA079K4033F *2
KAA 12Hose, ConnectionA079K4034F *2
KAA 13Hose, Pipe to RadiatorB075K0103ZD *1
KAA 14Main Water PipeA079K4087F *1
