Esprit S1, S2, S2.2 PARTS MANUAL

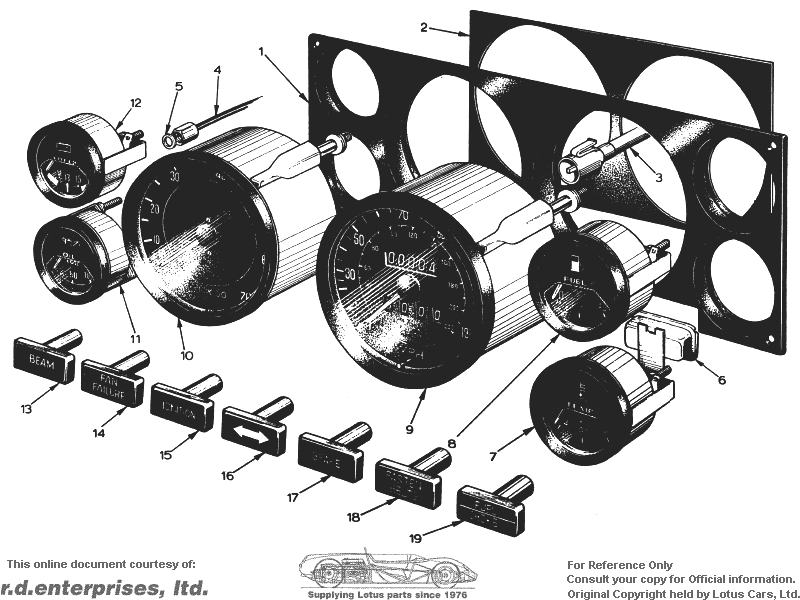

Section MDA -- Electrical -- Instruments (S2)


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
MDA 1Instrument PanelA079N4002K *1
MDA 2Instrument Panel StiffenerA079N4003K *1
MDA 3Speedo Cable (long)A079N6030F**1 Two cable system.
Speedo Cable (short)B079N6020F**1 Two cable system.
"P" ClipA075Q6013ZF**1 Two cable system.
Speedo Right Angled DriveA079N6004F**1 Two cable system.
MDA 3Speedo Cable A079N6034F *1 Single cable system.
Speedo. Right Angle DriveA079F6292F * 11 Single cable system.
Speedo. Right Angle DriveA079F6291F * 1Single cable system.
MDA 4Oil Pressure PipeA079N4001F *1
MDA 5Leather WasherA036N6000ZD *1
MDA 6Voltage StabilizerA079N6027F *1
MDA 7Engine Temperature GaugeA079N6023F *1
MDA 8Fuel GaugeA079N6024F * 11
Fuel Gauge (unleaded fuel)A075N6031F * 1
MDA 9Speedometer, 140 mphB079N6021F * 1 1
Speedometer, 170 mphA079N6032F * 1
Speedometer, 85 mphA075N6030F * 1
Speedometer, 220 kphA079N6031F * 1
Speedometer, 265 kphA079N6033F * 1
MDA 10TachometerA079N6022F *1
MDA 11Oil Pressure GaugeA079N6026F *1
MDA 12Battery Condition IndicatorA079N6025F *1
MDA 13Beam Warning LightA075M6054F *1
MDA 14Fan Failure Warning LightA079M4063F *1
MDA 15Ignition Warning LightA075M6055F *1
MDA 16Double Arrow Warning LightA079M6084F *1
MDA 17Brakes Warning LightA075M6056F *1
MDA 18"Fasten Belts" Warning LightA074M6013F *1 Not Australia.
Parking Brake Warning LightA075M6202F * 1 Australia only.
Jumper LoomA079M4102F * 1 Australia only.
MDA 19Choke/Fuel Warning LightA075M6173F *1
Water Temperature TransmitterA079N6001F *1
