Esprit S1, S2, S2.2 PARTS MANUAL

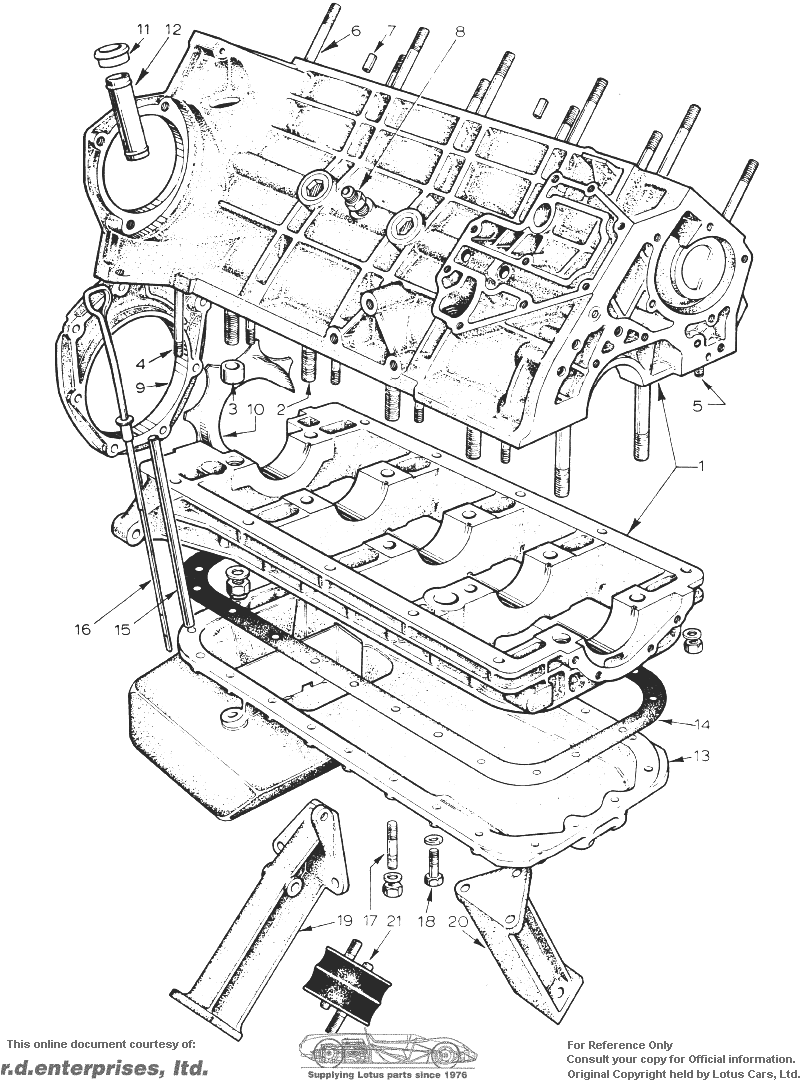

Section EA -- Engine -- Block


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EA 1Cylinder Block and Main Bearing Housing Assy.B907E0708S 1 Prior to Engine number 13277
Cylinder Block and Main Bearing Housing Assy.C907E0708K 1 From Engine number 13277 inc. and ALL>/u>Federal. For use with Cross Drilled Crankshaft Only.
EA 2StudA907E0225ZA 10
Washer, PlainA907E0031ZF 10
NutA075W3025ZH 10
EA 2DowelA907E0302ZE 2
EA 4StudA907E0491ZD 2 Long
EA 5StudA907E0226ZF 8 Short
Washer, PlainA075W4020ZB 10
NutA075W3021ZK 10
EA 6StudA907E0224ZG 10
Not lllus.Socket PlugA907E0528ZD 3 1" NPTF
Not lllus.Socket PlugA907E6063ZE 1 3" BSP
EA 7Spring Dowel (Roll Pin)A907E6007ZL 2
EA 8Union Oil PressureA907E0625ZG 1
EA 9Housing, Rear SealA907E0599YC 1
Not Illus.Gasket, Housing, Rear SealA907E0671ZF 1
Not Illus.Rear SealA907E0631ZD 1
Screw, Pozi, 6 mm x 25A075WS089ZC 8 Rear Seal Housing to Block
Washer, PlainA075W4013ZL 8
EA 10Spray ShieldA907E0662ZE 1
EA 11Spout, BreatherB907E0626ZE 1
EA 12Bush, Breather SpoutA907E0625ZG 1
EA 13Oil SumpA907E0700Y 1
EA 14Gasket, O11 SumpA907E0630ZK 1
Not Illus.Drain Plug, SumpA036R6014ZL 1
Not Illus.Washer, Drain PlugA075W4057ZL 1
EA 15Tube, DipstickB907E0633ZC 1
EA 16DipstickC907E0632ZB 1 Prior to Engine number 13277
DipstickD907E0632ZJ 1 From Engine number 13277 inc. and ALL Federal
EA 17StudA907E0139ZJ 10 Sump to Main Bearing Housing
EA 18BoltA075W2027ZK 10 Sump to Main Bearing Housing
BoltA075W2030ZC 4 Sump to Main Bearing Housing
Washer PlainA075W4013ZL 24 Sump to Main Bearing Housing
NutA075W3009ZE 10 Sump to Main Bearing Housing
Not illus.Engine Mounting Bracket, RHA079E4001J 1 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
EA 19Engine Mounting Bracket, LHA079E4000J 1 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
EA 20Engine Mount Support, RHC079E4010K 1 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
Engine Mount Support, LHC079E4009K 1 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
Mounting Plate, ChassisA079E4006F 2 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
Housing, Rubber BushA079E4007F 2 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
EA 21Engine Mounting RubberA079E6000F 2 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
Bolt, Engine MountingA075W2038ZD 1 Up to Unit Nos. 213G, 216G to 239G, 241G to 249G, 140H to 143H and 103J.
Engine Mounting Assy, LHB079E4021F 1 Units Nos. 214G, 240G and 250G onwards, 139H and 144H onwards, 104J onwards.
Engine Mounting Assy, RHB079E4020F 1 Units Nos. 214G, 240G and 250G onwards, 139H and 144H onwards, 104J onwards.
Adaptor, Engine Mounting, RHB079E4018K 1 Units Nos. 214G, 240G and 250G onwards, 139H and 144H onwards, 104J onwards.
Adaptor, Engine Mounting, LHA079E4030K 1 Units Nos. 214G, 240G and 250G onwards, 139H and 144H onwards, 104J onwards.
Engine Mounting RubberA907E6174F 2 Units Nos. 214G, 240G and 250G onwards, 139H and 144H onwards, 104J onwards.
Spacer, Engine MountingsB079E4027F 2 Air Cond. Only
Heat Shield, engine mountingA079E4043F**1 R/B A079E4055F (S/B 1978/29)
Heatshield Assy.A079E4054K**1 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Bracket (Heatshield to Chassis)A079E4057K**1 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Screw M6 x 20A075WI030Z**4 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Nut M6A075W3020Z**2 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Nut, Nyloc, M6A075W3009Z**2 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Washer M6 x 1.5 x 15A075W4015Z**2 Comprises heatshield A079E4055F plus 5 edge clips A079W6188F. Ref. Service Bulletin 1978/29
Heatshield bracket, bolt onA079E4058**1
