Esprit S1, S2, S2.2 Parts Manual -- Section EB

Esprit S1, S2, S2.2 PARTS MANUAL

Section EB -- Cylinder Head

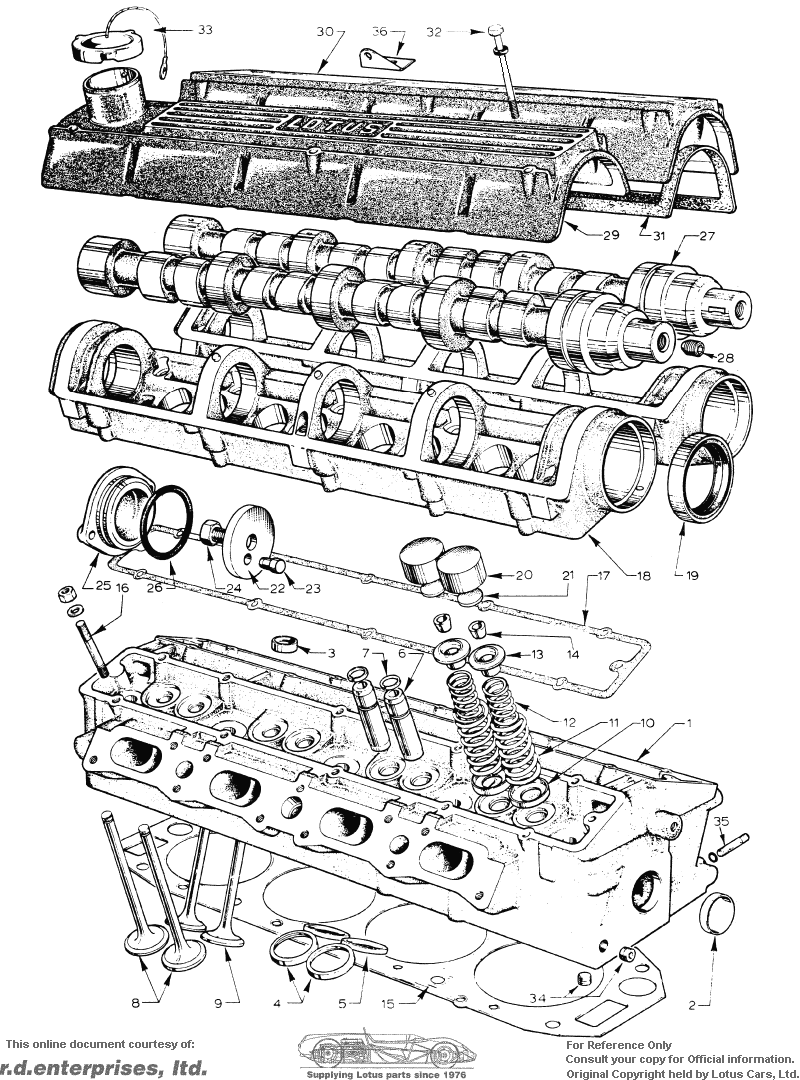

PLATE Ref. No.	DESCRIPTION	PART NO.							REMARKS
EB 1	Cylinder Head, Sub Assy	A907E0703SH	*	*		1	1		Also 1974 Fed. without air injection
	Cylinder Head, Sub Assy	C907E0703S	*	*		1	1		Replaces A907E0703SH, when plug A907E11*? blanks heater outlet on inlet manifold
	Pipe, Heater Take-Off	A907E0486ZA	*	*		1	1
	Cylinder Head, Sub Assy	B907E0703S	*	*				1
	Cylinder Head, Sub Assy	D907E0703S	*	*				1	Replaces B907E0703S, when plug A907E602*? blanks heater outlet on inlet manifold
	Pipe, Heater Take-Off	A907E0486ZA	*	*				1
EB 2	Cup Plug	A907E6039ZF	*	*	2
EB 3	Cup Plug	A907E6038ZA	*	*	6
EB 4	Insert, Valve Seat, Inlet, Standard	B907E0312YJ	*	*	8
	Insert, Valve Seat, Inlet, +.001"	C907E0312YB	*	*	AR
	Insert, Valve Seat, Inlet, +.002"	D907E0312Y	*	*	AR
	Insert, Valve Seat, Inlet, +.005"	E907EO312YK	*	*	AR
EB 5	Insert, Valve Seat, Exhaust, Standard	B907FO313YC	*	*	8
	Insert, Valve Seat, Exhaust, +.O01"	C907EO313YG	*	*	AR
	Insert, Valve Seat, Exhaust, +.002"	D907E0313YL	*	*	AR
	Insert, Valve Seat, Exhaust, +.005"	E907E0313YD	*	*	AR
EB 6	Valve Guide, Standard	B907E0315YB	*	*	16
	Valve Guide, +.001"	C907E0315YF	*	*	AR
	Valve Guide, +.002"	D907E0315YK	*	*	AR
	Valve Guide, +.005"	E907E0315YC	*	*	AR
EB 7	Circlip, Valve Guide	A907E6037ZG	*	*	16
EB 8	Valve, Inlet	B907E0019ZE	*	*	8
EB 9	Valve, Exhaust	A907E0020ZF	*	*	8
EB 10	Seat, Valve Spring	A907E0316ZG	*	*	16
EB 11	Valve Spring, Outer	A907E0022ZE	*	*	16
EB 12	Valve Spring, Inner	A907E0023ZK	*	*	16
EB 13	Retainer, Valve Spring	B907E0021ZD	*	*	16
EB 14	Cotter, Valve Retaining	A907E6040ZL	*	*	32
EB 15	Gasket, Cylinder Head	B907E0026ZG	*	*	1
EB 16	Stud, Cam Housing to Head	B907E0227ZD	*	*	20
	Washer, Plain	A075W4020ZB	*	*	20
	Nut	A075W3021ZK	*	*	20
	Roll Pin, Cam Housing	A075W6097ZG	*	*	2
	"O" Ring, Roll Pin	A907E6202ZL	*	*	2
	Nut, Head to Block	A075W3025ZH	*	*	10
	Washer	A907E0031ZF	*	*	10
EB 18	Camshaft Housing	E907E0302YD	*	*	2
	Gasket Eliminator, Loctlte 504	A907E6257VF	*	*	AR
	Stud	E907E1027FG	*	*	2
	Bracket, Belt Snubber	A907E1107FH	*	*	1
	Eccentric Adjuster	A907E1108FB	*	*	1
	Washer	A075W4020ZB	*	*	1
	Nut, Plain, M8	A075W3021ZK	*	*	1
EB 19	Seal	A907E6042FL	*	*	2
EB 20	Tappet	X026E0024ZH	*	*	16
EB 21	Shims, See Below
EB 22	Thrust Washer 0.173" to 0.175"	A907E0619ZK	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.175" to 0.177"	A907E0620ZD	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.177" to 0.179"	A907E0621ZJ	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.179" to 0.181"	A907E0622ZC	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.173" to 0.175"	A907E1180F	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.175" to 0.177"	A907E1181F	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.177" to 0.179"	A907E1182F	*	*	2			1	With Air Pump. (Fed).
	Thrust Washer 0.179" to 0.181"	A907E1183F	*	*	2			1	With Air Pump. (Fed).
EB 23	Dowel, Camshaft	A907E0476ZF	*	*		2	2	1	Inlet Camshaft on Federal with Air Pump.
	Dowel, Camshaft	A026E6104ZC	*	*				1	Exhaust Camshaft on Federal with Air Pump.
EB 24	Setscrew	A075W1046ZJ	*	*		2	2	1	With Air Pump. (Fed).
	Washer, Spring	A075W4037ZK	*	*				1	With Air Pump. (Fed).
EB 25	Rear Cover	A907E0090YL	*	*				1	With Air Pump. (Fed).
	Rear Cover	B907E1179F	*	*				1	With Air Pump. (Fed).
	Oil Seal, Rear Camshaft Drive	A907E6288F	*	*				1	With Air Pump. (Fed).
EB 26	"O" Ring	A907E6027ZA	*	*		2	2	1	Inlet Camshaft on Federal with Air Pump.
	"O" Ring, Rear Camshaft Drive	A907E6289F	*	*				1	Exhaust Camshaft on Federal with Air Pump.
	Screw	A075W1029ZA	*	*	4
	Washer, Plain	A075W4013ZL	*	*	4
EB 27	Camshaft "C" Type	F907E0101G	*	*	2				No Grooves.
	Camshaft "E" Type	J907E0103G	*	*		2	2		2 Grooves.
	Spindle, Rear Camshaft Drive	B907E1177F	*	*				1	With Air Pump.
	Hub, Rear Camshaft Drive	A907E1176F	*	*				1	With Air Pump.
	Nut, Locking, M8	A075W3035ZC	*	*				1	Hub to Spindle, With Air Pump.
	Washer, Plain	A075W4020ZB	*	*				1	Hub to Spindle, With Air Pump.
	Pulley, Rear Camshaft Drive	A907E6290F	*	*				1
	Washer Spring	A075W4036ZL	*	*				4	Pulley to Hub, Federal fitted with Air Pump.
	Set Screws, M8 x 12	A075W1035ZJ	*	*				4	Pulley to Hub, Federal fitted with Air Pump.
	"V" Belt, Air Pump Drive	A907E6292F	*	*				1
EB 28	Grub Screw	A907E6069ZB	*	*	2
EB 29	Cam Cover, Inlet	C907E0300YH	*	*	1
EB 30	Cam Cover, Exhaust	B907E0301YJ	*	*	1
EB 31	Gasket, Cam Cover	B907E0001ZC	*	*	2
	Silastic, RTV	A036E6038V	*	*	AR
EB 32	Bolt	A075W2099ZG	*	*	12
	Washer, Seloc	A074E6099ZL	*	*	12
EB 33	Filler Cap	A026E0415WJ	*	*	1
	Gasket, Filler Cap	A026E0325ZH	*	*	1
EB 34	Plug	A907E6023ZC	*	*	2				1/8" BSP
EB 35	Stud, Water Inlet Pipe	A907E6206ZL	*	*	1
EB 36	Bracket, Throttle Cable	A907E0516ZK	*	*	1
	Decoke Gasket Set	B907E0807WI	*	*		AR	AR		Dellorto Carbs
	Decoke Gasket Set	C907E0807W	*	*				AR	Zenith Carbs
	For Studs, Manifold Retaining, See:- EH for inlet & SA for exhaust

Shims - Reference EB 21 From Above
Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.	Shim	Part No.
0.060 ins	A026E6160Z	0.080 ins	A026E6180Z	0.100 ins	A026E6200Z	0.120 ins	A026E6220Z	0.140 ins	A026E6240Z
0.061 ins	A026E6161Z	0.081 ins	A026E6181Z	0.101 ins	A026E6201Z	0.121 ins	A026E6221Z	0.141 ins	A026E6241Z
0.062 ins	A026E6162Z	0.082 ins	A026E6182Z	0.102 ins	A026E6202Z	0.122 ins	A026E6222Z	0.142 ins	A026E6242Z
0.063 ins	A026E6163Z	0.083 ins	A026E6183Z	0.103 ins	A026E6203Z	0.123 ins	A026E6223Z	0.143 ins	A026E6243Z
0.064 ins	A026E6164Z	0.084 ins	A026E6184Z	0.104 ins	A026E6204Z	0.124 ins	A026E6224Z	0.144 ins	A026E6244Z
0.065 ins	A026E6165Z	0.085 ins	A026E6185Z	0.105 ins	A026E6205Z	0.125 ins	A026E6225Z	0.145 ins	A026E6245Z
0.066 ins	A026E6166Z	0.086 ins	A026E6186Z	0.106 ins	A026E6206Z	0.126 ins	A026E6226Z	0.146 ins	A026E6246Z
0.067 ins	A026E6167Z	0.087 ins	A026E6187Z	0.107 ins	A026E6207Z	0.127 ins	A026E6227Z	0.147 ins	A026E6247Z
0.068 ins	A026E6168Z	0.088 ins	A026E6188Z	0.108 ins	A026E6208Z	0.128 ins	A026E6228Z	0.148 ins	A026E6248Z
0.069 ins	A026E6169Z	0.089 ins	A026E6189Z	0.109 ins	A026E6209Z	0.129 ins	A026E6229Z	0.149 ins	A026E6249Z
0.070 ins	A026E6170Z	0.090 ins	A026E6190Z	0.110 ins	A026E6210Z	0.130 ins	A026E6230Z	0.150 ins	A026E6250Z
0.071 ins	A026E6171Z	0.091 ins	A026E6191Z	0.111 ins	A026E6211Z	0.131 ins	A026E6231Z
0.072 ins	A026E6172Z	0.092 ins	A026E6192Z	0.112 ins	A026E6212Z	0.132 ins	A026E6232Z
0.073 ins	A026E6173Z	0.093 ins	A026E6193Z	0.113 ins	A026E6213Z	0.133 ins	A026E6233Z
0.074 ins	A026E6174Z	0.094 ins	A026E6194Z	0.114 ins	A026E6214Z	0.134 ins	A026E6234Z
0.075 ins	A026E6175Z	0.095 ins	A026E6195Z	0.115 ins	A026E6215Z	0.135 ins	A026E6235Z
0.076 ins	A026E6176Z	0.096 ins	A026E6196Z	0.116 ins	A026E6216Z	0.136 ins	A026E6236Z
0.077 ins	A026E6177Z	0.097 ins	A026E6197Z	0.117 ins	A026E6217Z	0.137 ins	A026E6237Z
0.078 ins	A026E6178Z	0.098 ins	A026E6198Z	0.118 ins	A026E6218Z	0.138 ins	A026E6238Z
0.079 ins	A026E6179Z	0.099 ins	A026E6299Z	0.119 ins	A026E6219Z	0.139 ins	A026E6239Z
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
