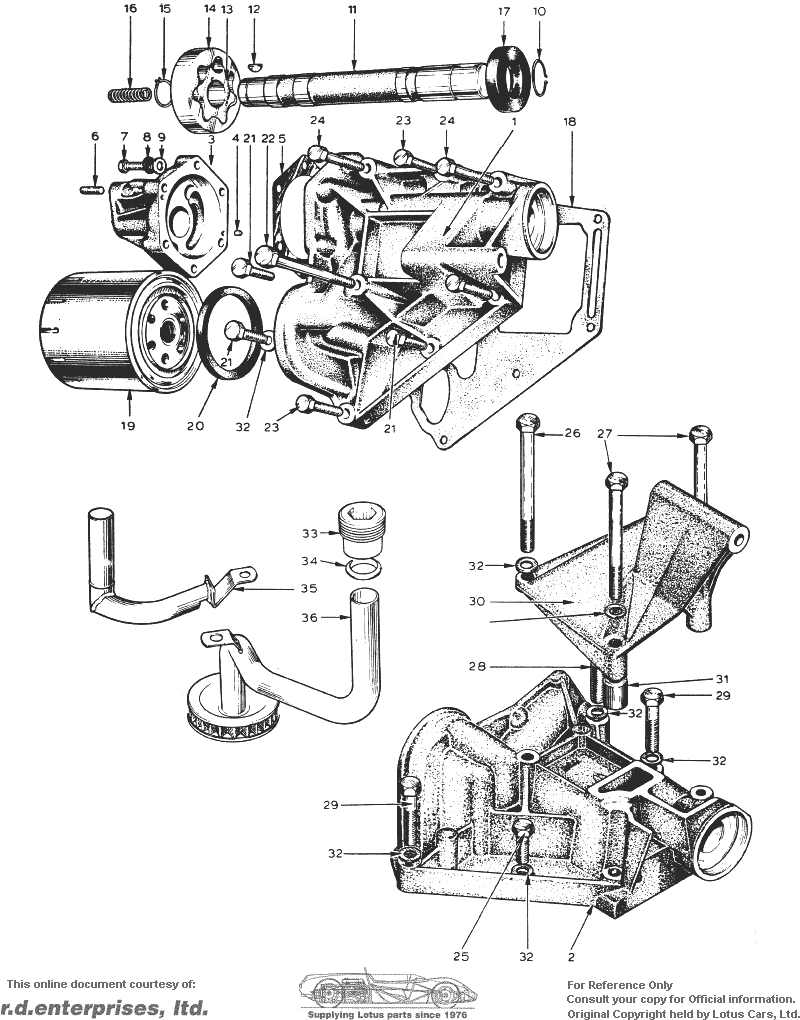

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| Auxiliary Housing & Oil Pump Assy. | D907E0747WC | * | * | 1 | | | | |
| Auxiliary Housing & Oil Pump Assy. | A907E0959F | | * | 1 | | | | Adaptable type, Separate Air. Bracket. |
| EE 1 | Auxiliary Housing & Oil Pump Assy. | E907E0437F | * | * | 1 | | | | |
| EE 2 | Auxiliary Housing | A907E1092H | | * | 1 | | | | Adaptable type, Separate Air. Bracket. |
| EE 3 | Oil Pump Housing | L907E0603W | * | * | 1 | | | | Includes Relief Valve. |
| EE 4 | Dowel | A907E0530ZC | * | * | 2 | | | | |
| EE 5 | Gasket, Pump to Housing | A907E0474Z | * | * | 1 | | | | |
| EE 6 | Stud, Distributor Clamp | A907E0503ZL | * | * | 1 | | | | |
| EE 7 | Bolt, Pump to Housing | A075W2028ZD | * | * | 6 | | | | |
| EE 8 | Washer, Spring | A075W4035ZL | * | * | 6 | | | | |
| EE 9 | Washer, Plain | A075W4013ZL | * | * | 6 | | | | |
| Shaft and Rotor Assy. | A907E0785WE | * | * | 1 | | | | Comprises Items EEl0 to EEl3, Inc. |
| EE 10 | Circlip | A907E6101ZK | * | * | 1 | | | | |
| EE 11 | Jackshaft | B907EO291Z | * | * | 1 | | | | |
| EE 12 | Woodruff Key | A907E6001ZC | * | * | 1 | | | | |
| EE 13 | Rotor | A907E0472YD | * | * | 1 | | | | |
| EE 14 | Annulus | A907E0473YJ | * | * | 1 | | | | |
| EE 15 | Circlip | A907E6067ZC | * | * | 1 | | | | |
| EE 16 | Spring | A907E0192ZK | * | * | 1 | | | | |
| EE 17 | Oil Seal | A907E6064ZK | * | * | 1 | | | | |
| Not Illus. | Adaptor, Oil Filter | A907E0249ZL | * | * | 1 | | | | |
| EE 18 | Gasket, Aux. Housing | B907E442ZE | * | * | 1 | | | | |
| EE 19 | Oil Filter | A907E60OOWH | * | * | 1 | | | | |
| EE 20 | Sealing Ring, Square Section | A907E6167F | * | * | 1 | | | | |
| EE 21 | Screw, Housing to Block, M8 x 25 | A075WI039ZG | * | * | 3 | | | | Aux. Hsg. & Oil Pump Assy. D907E0747WC. |
| EE 22 | Bolt, Housing to Block, M8 x 90 | A075W2048ZE | * | * | 1 | | | | Aux. Hsg. & Oil Pump Assy. D907E0747WC. |
| EE 23 | Bolt, Housing to Block M8 x 40 | A075W2039ZD | * | * | 3 | | | | Aux. Hsg. & Oil Pump Assy. D907E0747WC. |
| EE 24 | Bolt, Housing to Block M8 x 60 | A075W2043ZB | * | * | 2 | | | | Aux. Hsg. & Oil Pump Assy. D907E0747WC. |
| EE 25 | Screw, Housing to Block, M8 x 25 | A075W1039ZG | | * | 3 | | | | Aux. Hsg. & Oil Pump Assy. A907E0859F. |
| EE 26 | Bolt, Housing/Brkt. to Block, M8 x 100 | A075W2049ZK | | * | 1 | | | | Aux. Hsg. & Oil Pump Assy. A907E0859F. |
| EE 27 | Bolt, Houslng/Brkt. to Block, M8 x 90 | A075W2048ZE | | * | 2 | | | | Aux. Hsg. & Oil Pump Assy. A907E0859F. |
| EE 28 | Bolt, Housing to Block, M8 x 60 | A075W2043ZB | | * | 1 | | | | Aux. Hsg. & Oil Pump Assy. A907E0859F. |
| EE 29 | Bolt, Housing to Block, M8 x 40 | A075W2039ZD | | * | 2 | | | | Aux. Hsg. & Oil Pump Assy. A907E0859F. |
| EE 30 | Alternator MounHng Bracket | A907E1120F | | * | 1 | | | | |
| EE 31 | Spacer | A907E1094F | | * | 1 | | | | |
| EE 32 | Washer, Plain | A075W4020ZB | | * | 9 | | | | |
| EE 33 | Union | A907E0605ZF | * | * | 1 | | | | |
| EE 34 | Olive, Compression | A907E0606ZL | * | * | 1 | | | | |
| EE 35 | Vent Pipe | A907E0637ZA | * | * | 1 | | | | |
| EE 36 | Pipe, Oil Pick-up | A907E0624ZB | * | * | 1 | | | | |
| Not Illus. | Jackshaft Snubber, Toothed Belt. | A907E1140F | * | * | 1 | | | | |
