Esprit S1, S2, S2.2 PARTS MANUAL

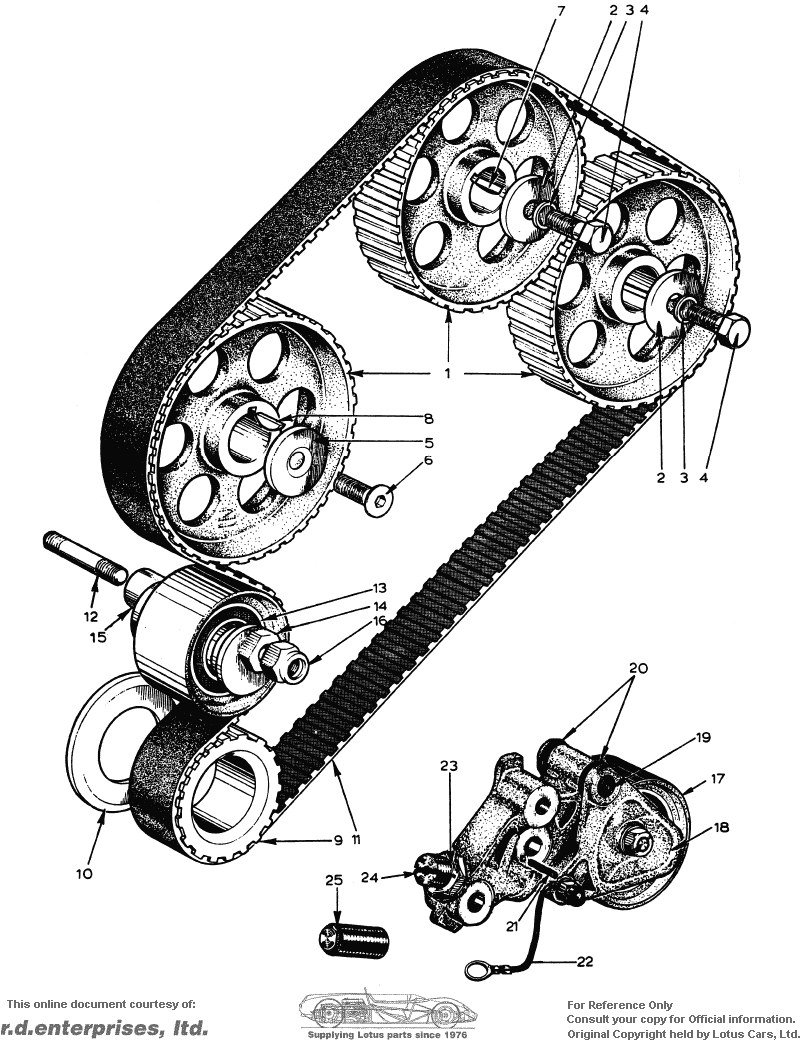

Section EF -- Engine -- Timing Belt, Pulleys & Tensioner


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EF 1Toothed PulleyH907E0309Y**3 100/110Valve Timing, Red Dot 110, Blue Dot 100
Toothed PulleyJ907E0309Y** 33 102½/102½ Valve Timing, Yellow Dots.
EF 2Washer, PlainA907E6026ZG**2
EF 3Washer, SpringA075W4037ZK**2
EF 4BoltA075W2051ZJ**2
EF 5Washer, SpecialA907E0576ZB**1
EF 6ScrewA075W7018ZE**1
EF 7Woodruff Key, Camshaft PulleyA907E6025ZB**2
EF 8Woodruff Key, Jackshaft PulleyA907E6025ZB**1
EF 9Toothed Pulley, CrankshaftD907E0095ZH**1
EF 10FlangeA907E0096ZA**1
EF 11Toothed Belt, 133 TeethA907E0191ZE**1
EF 12Stud, Belt TensionerB907E0504ZJ**1 On cars fitted with Heater.
Bolt, Belt TensionerA075W2058ZL**1 2 on Air Cond. Cars.
EF 13Pulley/BearingA907E6249FA* 1
EF 14Hub, EccentricA907E0684FB* 1
EF 15Eccentric SpindleA907E0639ZL* 1
EF 16NutA075W3011ZD**2 Heater Cars Only
Automatic Tensioner Assy.A907E0893K**1 Heater Cars (Screw Adj)
Automatic Tensioner Assy.B907E0893K *1 Air Cond. Cars (Hexagon Adj.)
EF 17Pulley/BearingA907E6249FA**1
EF 18Yoke, FrontB907E1141F**1 Use only shouldered bushes B907E1163F with these yokes which replace those with "A" Prefix.
Yoke, RearB907E1142F**1 Use only shouldered bushes B907E1163F with these yokes which replace those with "A" Prefix.
EF 19Bush, ShoulderedB907E1163F**2 Use only with "B" Prefix Yokes.
EF 20Rubber WasherA907E1148F**2
EF 21Locking PinA907E1195F**1 4mm Dia.
EF 22Earth StrapA075M0329F**1
EF 23LocknutA907E1149F**1
EF 24Spring Seat (Screw Adjuster)B907E1146F**1 Heater Cars.
EF 25Spring Seat (Hexagon Adjuster)A907E1269F**1 Air Cond. Cars
Not Illus.Piston, NylatronA907E1245F**1
