Esprit S1, S2, S2.2 PARTS MANUAL

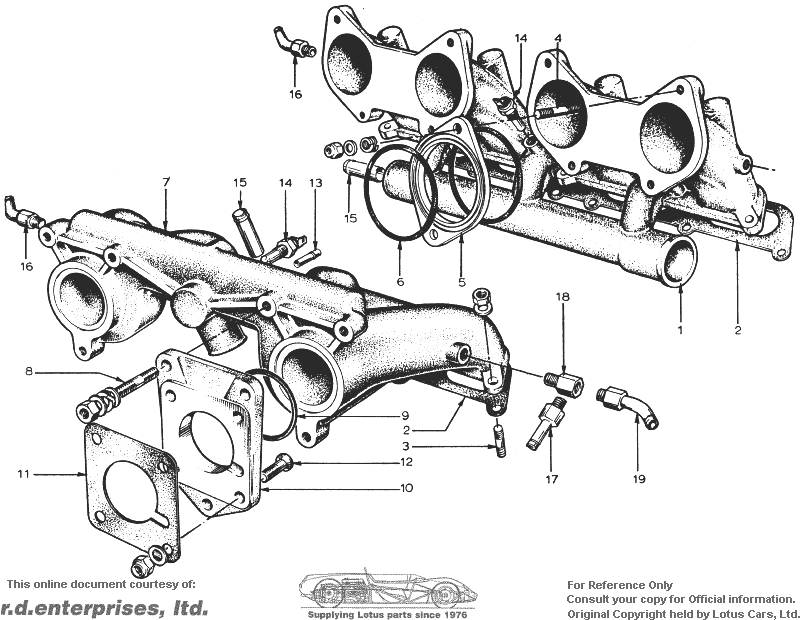

Section EH -- Engine -- Inlet Manifold


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EH 1Inlet ManifoldB907E0123Y 1 1Dellorto Carbs.
EH 2GasketA907E0204Z1
EH 3Stud, 8mm x 1.46"A907E1027Z9
WasherA075W4020Z9 Manifold to Head
NutA075W3021Z9
EH 4StudB907E0130Z 88 Manifold to Carbs.
EH 5SpacerB907E01297 44
EH 6'O' RingA907E6027Z 88
Rubber SpringB036E0470Z 88
Cup WasherC036E0471Z 1616 Carbs to Manifold Securing
NutA075W30107 88
EH 7Inlet ManifoldC907E0250Y 1Zenith 'CD' Carbs.
EH 8StudA907E0520Z 6Adaptor Flange to Manifold
EH 9'O' RingA026S0086A 2
EH 10Adaptor FlangeB026S0009Y 2
Rubber SpringB036EO470Z 6
Cup WasherC036E0471Z 6Flange to Manifold
NutA075W3010Z 6
EH 11GasketX026S01077 2Flange to Carbs.
EH 12StudB036S017OZ 8
Washer, PlainA075W4020Z 8Carbs. to Adaptor Flange
NutA075W3002Z 8
EH 13Tube, Vacuum Take-offA907E0547Z 1To Carb. Air Control Valve and Dist.
EH 14Temperature TransmitterA050M6136W1
EH 16Angled Union, VacuumA074E0367Z1
EH 17Union, VacuumA026E0367Z1
