Esprit S1, S2, S2.2 PARTS MANUAL

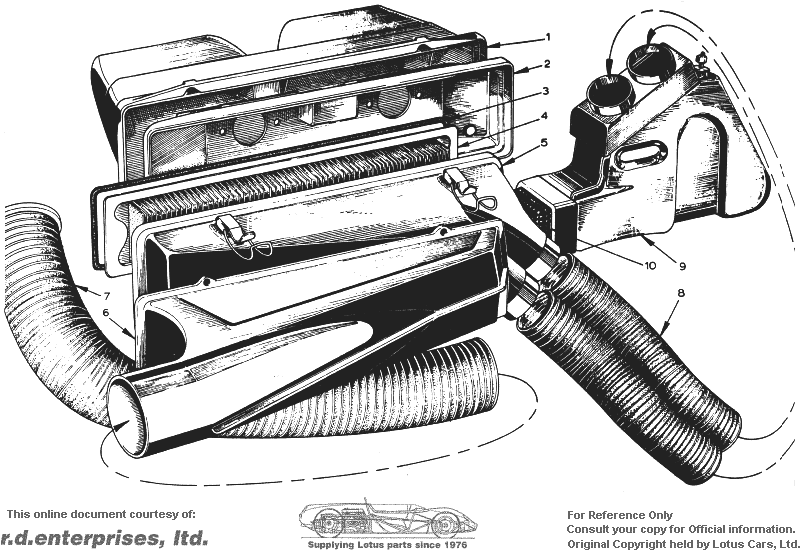

Section EL -- Engine -- Air Box -- S1


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EL 1Backplate AssyA907E0654ZJ* 11 Up to unit Nos 312G & 134J inc - Screw fix cover
Backplate AssyA907E1224K* 11 Unit Nos 313G on & 135J on - Latch Fix Cover
Not Illus.Flame trap/Breather TubeC907E0517ZA* 11
EL 2Backplate AssyA907E0889J* 1
Not Illus.FlameTrap/Breather TubeD907E0517Z* 1
Strike PlateA907E6303F* 4 All Fed & 313 G on & 135J
Pop RivetA075W6071ZJ* 8 All Fed & 313 G on & 135J
Washer, PlainA075W4001ZF* 8 All Fed & 313 G on & 135J
EL 3SealB907E0588ZL* 1
EL 4Element, Air FilterA907E6182ZH* 1
EL 6Cover, Air BoxA907E0656ZH* 11 Screw fixing to Backplate
EL 5Cover, Air BoxA907E0888J* 1 All fed. & 313G on & 135J on
LatchA907E6302F* 4 All fed. & 313G on & 135J on
Pop Rivet I/8 D x 5/16A075W6071ZJ* 8 All fed. & 313G on & 135J on
Washer Plain 1/8 I.D.A075W4001ZF* 4 All fed. & 313G on & 135J on
EL 7Hose InductionA907E0836W* 11
EL 8Hose InductionA907E1203F* 2 All fed & 313G on & 135 J on
Not Illus.ClipX036S6006ZF* 11 Hose To Cover
Valve Assy, Anti Run-onA075L6024FB* 1
Grommet, Valve toAir BoxA075P6021ZD* 1
EL 9Plenum Chamber AssyA907E0892F* 1 All fed & 313 G on & 135 J on Inc.
EL 10Intake GrilleA907EI218J* 1
Breather PipeA907E0682Z* 11
Breather PipeA907E0679ZB* 1
Hose, ConnectingA907E6218DC* 221
Grommet, Breather PipeX050E6158ZJ* 1
Clip, SnapperA075W6205ZA* 44
