Esprit S1, S2, S2.2 PARTS MANUAL

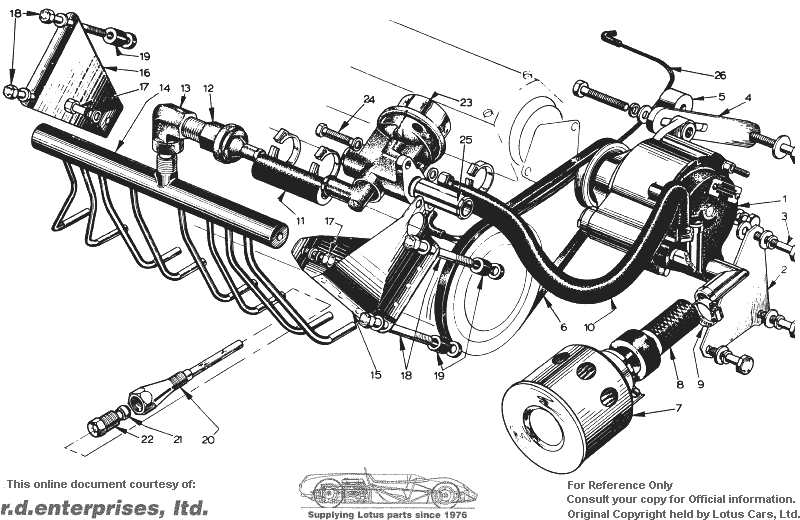

Section EM -- Engine -- Air Pump


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EM 1Air Pump Assy. (Lucas)E907E6232F** 1
Pulley, Air PumpA907E1178F** 1
Not Illus.Air Pump Assy. (AC Delco)A907E6318F * 1
Pulley, Air PumpA907E1239F * 1
Allen Screw ¼" x 7/8"A079W7008F * 3Up to Eng. No. 15387 Inc., Pulley to Pump
Screw, ¼" x 3"A075W1009Z * 3From Eng. No. 15388 Inc., Pulley to Pump
Spring WasherA079W4072F * 3Pulley to Pump
Not Illus.Right Angled Pipe (Pump Delivery)A907E1025F * 1From Eng. No. 15388 inc. Remove Straight pipe from pump.
EM 2Air Pump Support BracketA907E1184F * 1Up to Eng. No. 15387, Inc.
Not Illus.Air Pump Support BracketA907E1273F * 1From Eng. No. 15388, Inc.
Setscrew, M8 x 20A075W1038ZB** 2Bracket to Bell-Housing - Lucas Pump
Washer, SpringA075W4036ZL** 2Bracket to Bell-Housing - Lucas Pump
Bolt, M8 x 45A075W2040ZJ * 2Bracket to Bell-Housing AC-Delco Pump up to Eng. No. 55387, Inc.
Spacer, 30mmA907E1236K * 2Bracket to Bell-Housing AC-Delco Pump up to Eng. No. 55387, Inc.
Spacer, 8mmA907E1237K * 1Pump to Bell-Housing- AC-Delco Pump up to Eng. No. 15387, Inc.
Spacer, 10mmA907E1274K * 1Pump to Bell-Houslng - AC-Delco Pump up to Eng. No. 15388.
Stud, M8A907E0657ZB** 1
Washer, PlainA075W4020ZB** 1Front Air Pump Mounting.
Nut, Nyloc, M8A075W3010ZK** 1
EM 3Bolt, M8 x 30A075W2037ZE** 1
Washer, PlainA075W4020ZB** 1Rear Air Pump Mounting - Lucas Pump
Washer, SpringA075W4036ZL** 1
Nut, Plain, M8A075W3021ZK** 1
Bolt, M8 x 127A075W2050ZD * 1
Washer, PlainA075W4020ZB * 1Rear Air Pump Mounting - AC-Delco Pump.
Washer, SpringA075W4036ZL * 1
EM 4Adjusting StrapA074E0133ZB * 1
EM 5SpacerA907E1186F * 1
StudA907E1034FD * 1Lucas Air Pump.
Washer, Plain A075W3011ZJ * 1
Nut, NylocA075W4024ZL * 1
Not Illus.Adjusting StrapA907E1238F * 1
Not Illus.Spacer, 26.0mmA907E1235K * 1AC-Delco Air Pump up to Eng. No. 15387, Inc.
Bolt, M10 x 70A075W2058ZL * 1
Clamp Screw, M8 x 25A075W1039ZGV * 1
Not Illus.Adjusting StrapA907E1272F * 1AC-Delco Air Pump from Eng. No. 15388, Inc.
Clamping Screw 8mm x 115A079W2047F * 2AC-Delco Air Pump from Eng. No. 15388, Inc.
Washer PlainA075W4020ZB * 1AC-Delco Air Pump from Eng. No. 15388, Inc.
Nut (copperised)A075W3035XE * 1
EM 6"V" Belt, Air Pump DriveA907E6292F** 1
EM 7Air FilterA907E6258FB** 1Lucas Air Pump
EM 8Hose, Air Pump Inlet ** 1Lucas Air Pump
EM 9Hose, ClipA075W6212ZC** 1Lucas Air Pump
EM 10Hose, Air Pump to Diverter ValveA907E1151F** 1Cut into two pieces of appropriate size will serve both applications. Eng. No. 15388 on, Inc. remove right hand angled *?
EM 11Hose, Diverter Valve to Air Rail ** 1Cut into two pieces of appropriate size will serve both applications. Eng. No. 15388 on, Inc. remove right hand angled *?
EM 12Air Non-Return ValveB907E6237F** 1
EM 13Elbow, NRV/Air RailA907E6243FD** 1
EM 14Air Rail Assy.A907E1020F** 1
EM 15Mounting Bracket, Rear, Assy.A079E4042F** 1Replaces A907E0890J - also Divertor Valve Mounting Bracket.
EM 16Mounting Bracket, FrontC907E1031F** 1
EM 17Bolt, Bracket to RailA075W1029ZA** 2
Washer, StarA075W4046ZL** 2
Washer, PlainA075W4015ZK** 2
EM 18Bolt, Bracket to Cam CoverA075W2100ZB** 4
EM 19SpacerA907E0696Z** 4
EM 20Air InjectorA907E1019F** 8
EM 21Olive, Air Rail/InjectorA907E6236F** 8
EM 22Nut, Air Rail/InjectorA907E6235F** 8
EM 23Diverter ValveA079E6001F** 1
EM 24Screw, M6 x20A075W1030ZF** 2Diverter Valve to Bracket.
Nut, Nyloc, M6A075W3009ZE** 2
EM 25Inlet Pipe, Diverter ValveA907E1213F** 1
EM 26Vacuum Pipe Assy.A907E0891F** 1Can be made from A907E0818WG
Hose ClipA907E6085ZE** 2Hose to Diverter Valve.
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
