Esprit S1, S2, S2.2 PARTS MANUAL

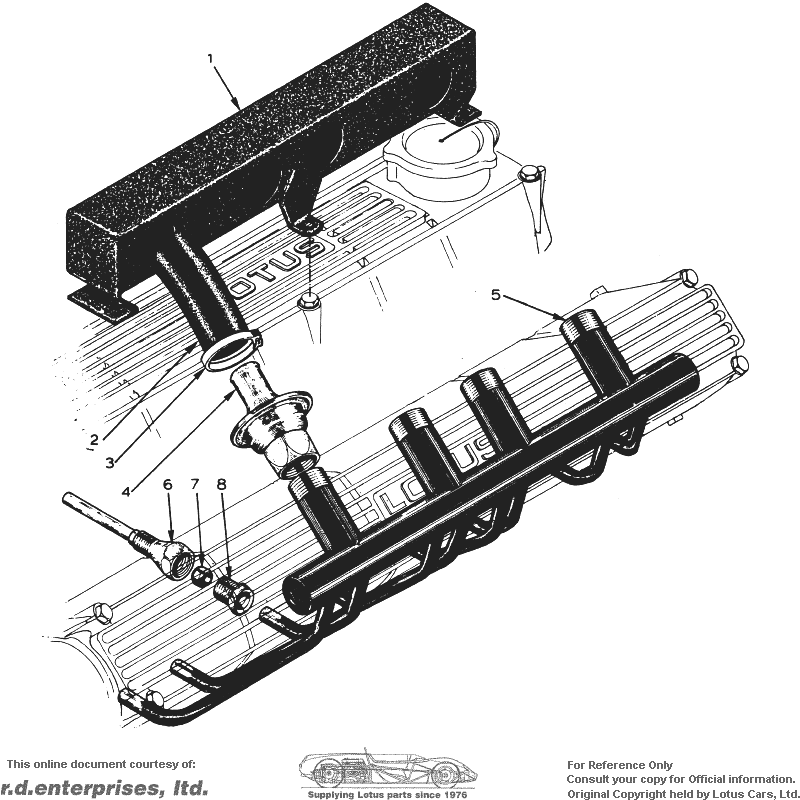

Section EMA -- Engine -- Air Plenum (S2)


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
EMA 1Air PlenumA907E1265F * 1
EMA 2Connecting SleeveA907E1280F * 4
EMA 3Snapper ClipA075W6211F * 4
EMA 4Pulse ValveB907E6237F * 4
EMA 5Air RailA907E1266F * 1
EMA 6Air IniectorA907E1019F * 8
EMA 7Olive, Air Rail / InjectorA907E6236F * 8
EMA 8Nut, Air Rail / InjectorA907E6235F * 8
