Esprit S1, S2, S2.2 PARTS MANUAL

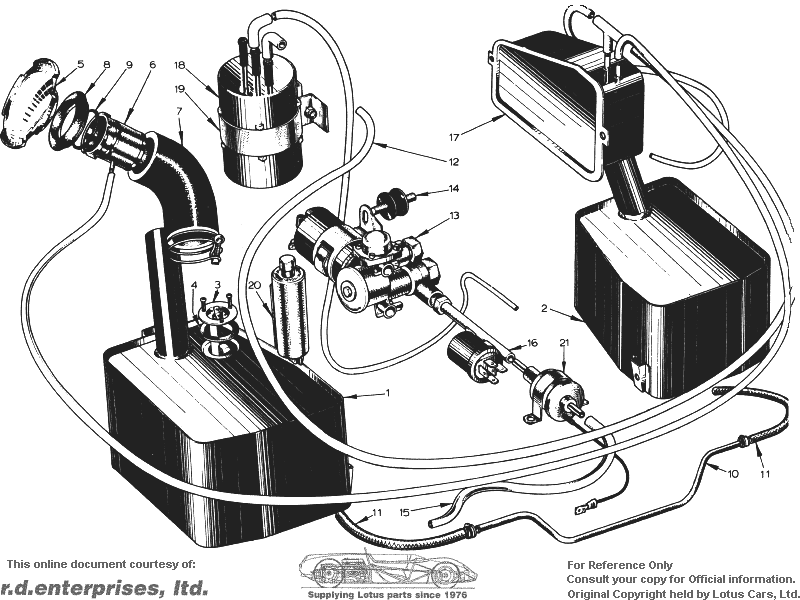

Section LA -- Fuel System - Pump & Tanks


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
LA 1Fuel Tank, RH.D079L4006F* 1 Up to unit Nos. 312G, 566H, 568H to 547H & 136J inc. Shorter filler neck than C079L4006F.
Fuel Tank RH.A079L4028F**1 From Unit Nos. 313G up to 485G, 489*? 490G, 494G &496G, 567H, 575H up to 830H, 137J up to 204J, 206J & 207J, up to 126S, Inc.
Fuel Tank, RH.A079L4039F *1 From unit Nos. 486G to 488G, 491G to*? 493G, 495G & 497G on, 831H on, 205J, 208J on, 127S on & 100T on Inc.
LA 2Fuel Tank, LH.D079L4001F* 1 Up to Unit Nos. 312G, 566H, 568H to *? & 136J Inc. Shorter filler neck than C079L4001F.
Fuel Tank, LH.A079L4029F**1 Unit Nos. 313G on, 567H, 575H on, 1*? on, 1005 on & 100T on, Inc.
Tank Banjo BoltA079L6005F**2 Unit Nos. 313G on, 567H, 575H on, 1*? on, 100S on & 100T on, Inc.
Banjo WashersA079L6006F**2
LA 3Sender UnitA079L6000F* 1
LA 4Gasket, Sender UnitA079L4018F* 1
Sender UnitA079L4040K *1 Up to unit Nos. 485G, 489(3,490G, 4*? 496G,830H,204J,206J & 207J & 126*?
Sender UnitA079N6029F *1 From unit Nos.486G, to488G, 491G to *? 493G,495G & 497G on, 831H on, 205J *? 127S on & 100T on Inc.
LA 5Filler Cap AssyA079L4002J* 1 Without Chain.
Filler Cap AssyA079L4938J *1 With chain
LA 6Filler NeckA076L0151FG* 22 Up to unlt Nos. 312G & 136J Inc.
Filler Neck, RH.B079L4026F* 11 Unit Nos. 313G on & 137J on, Inc.
Filler Neck, RH.C079L4026F * 11 Use filler cap with chain.
Filler Neck, LH.B079L4027F* 11 Unit Nos. 313G on & 137J on Inc.
Filler Neck, LH.C079L4027F * 11 Use filler cap with chain.
Filler Neck.A076L0152FA* 2Up to unit Nos. 566H & 568H to 574H *?
Filler Neck, RH.B079L4024F* 1Unit Nos. 567H & 575H on, Inc.
Filler Neck, RH.C079L4024F * 1Unit Nos, 700H on & 100T on, Inc.
Filler Neck, RH.C079L4026F * 1Unit Nos. 100S on, Inc.
Filler Neck, LH.B079L4025F* 1Unit Nos. 567H & 575H on, Inc.
Filler Neck, LH.C079L4025F * 1Unit Nos. 700H on & 100T on, inc.
Filler Neck, LH.C079L4027F * 1Unit Nos. 100S on, Inc.
Clamp Ring, Filler NeckA079L4034F**2 Unit Nos. 313G on, 567H, 575H on, *? on, 100S on & 100T on, Inc.
Gasket, Clamp RingA079L4035F**2 Unit Nos. 313G on, 567H, 575H on, *? 100S on & 100T on, Inc.
Gasket, Filler CapA079L6011F**2
LA 8Grommet, Filler NeckX046L6001ZH* 2 Up to Unit Nos. 312G, 566J, 568H to, 5 *? & 136J, Inc.
LA 7Hose, Filler to TankA079L4016F* 2 Up to Unit Nos. 312G, 566H,568H to 5 *? 136J, Inc.
Hose, Filler to TankA079L4031F**2 Unit Nos. 313G on, 567H & 575H on, 1 *? on, 100S on & 100T on, Inc.
LA 9"O" Ring, Filler to BodyX026S0086ZD* 2 Up to Unit Nos. 312G, 566H, 568H to *? & 136J, Inc.
LA 10Pipe, Cross-FeedB079L4015F* 1 Up to Unlt Nos. 312G, 566H, 568H to *? & 136J, Inc.
LA 11Pipe, Flexible, Cross FeedA079L4004F* 2
Pipe Tanks to Pump (& Cross Feed)A079L4022F**1 Unit Nos. 313G on, 567H & 575H on, 1 *? 100S on & 100T on Inc.
Grommet, Pipe, Croses FeedX05086158ZJ* 2 Up to Unit Nos. 312G, 566H, 568H to *? & 136J, Inc.
P Clip, Cross Feed Pipe to ChassisA075W6000ZF* 3
Clip, Cross Feed Pipe to ChassisA075W6002ZE**2 Unit Nos. 313G on, 567H & 575H on, 1 *? on, 100S on & 100T on Inc.
LA 12Pipe, Tank VentA079L4005K**2 Filler Neck Breather
GrommetA036B6010ZE**8
Non-Return ValveA076L6001F**2 In Filler Breather Pipe
LA 13Fuel PumpC075L6002F**1
Pump Breather PipeA050M6164V* 1 0.4 m length, Up to Unit Nos., 312G, 566H, 568H to *? 574H & 136J, Inc.
Pump Breather PipeA079L4023K**1 0.5m length, Unit Nos. 313G on, 567H, 575H on, 13 *? on, 100S on & 100T, on, Inc.
Fuel Pump AdaptorB079L4017F* 1 Up to Unit Nos.312G, 566H, 568H to 5 *? & 136J, Inc.
Aluminium WasherA026E6098ZD* 1
Fuel Pump AdaptorA079L6007F**2 Unit Nos. 313G on, 567H, 575H on & *? on, Inc.
ClampA075L6010ZA* 1
Clamp BoltA075L6012ZL* 1
InsulatorA075L0112ZC* 1
LA 14Metalastlk MountX050S0156ZE* 1 Up to unit Nos. 312G, 566H, 568H to *? 574H and 136J, Inc.
Nut, NylocA075W3002ZC* 4
Penny WasherA075W4002ZL* 2
WasherA075W4003ZE* 2
Fuel Pump Mounting BasketA079L4021F**1 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Bolt, Bracket to BulkheadA075W1039ZG**3 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
WasherA075W4021ZG**3 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Spring WasherA075W4036ZE**3 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Screw, Pump to BracketA079W1065F**2 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Spring WasherA075W4031ZB**2 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Rubber WasherAX75B2259F**2 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
Penny WasherA075W4031ZB**2 Unit Nos. 313G on, 567H, 575H on, *? 137J on, 100S on and 100T on, Inc.
LA 15Fuel Pipe, Tank to FilterB079L4008F* 1 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Clips, Fuel PipeA079L6018F* 2 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
LA 16Fuel Pipe, Flowlock to PumpA079L4009F* 1 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Hose ConnectingA075L6014ZK* 2 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Hose ClipA075L6015ZD* 2 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Hose ClipX054J6028ZH* 2 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Fuel Pipe, Filter to FlowlockB079L4004F* 1 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Fuel Pipe Assy, Tanks to PumpA079L4022F* 1 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Fuel pipe, Bundy, Pump to FilterA079L4020F* 1 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
Connections, Filter and FlowlockA079L4019K* 2 Up to Unit Nos. 312G, 566H, 568H *? to 574H and 136J Inc.
FilterA075L6004ZZD**1
Fuel Pipe, Pump to Carb.B079E4012F* 11 Up to Unit Nos. 312G & 136J, Inc.
Fuel Pipe, Pump to CarbB079E4028F* 1Up to Unit Nos. 566H & 568H to 574H *?
Fuel Pipe, Flowlock to Carb.A079E4039F** 11 Unit Nos. 313G on & 137J on Inc.
Fuel Pipe, Flowlock to Carb.A079E4038F** 1Unit Nos. 567H & 575H on 100S on & 1 *? on, Inc.
Clip Pipe to ChassisA075W6015Z**2
Grommet, Fuel PipeX036B6131ZG**1
LA. 17Evaporative Loss TankA079L4013F* 1
Evaporative Loss Tank B079L4013F * 1
LA 18Charcoal CannisterB075L6005ZJ** 1
Plug, RubberA036J6005ZD** 1
ElbowsA036J0135F** 2
LA 19Mounting BracketA075L0111ZJ** 1
Evaporating Loss PipingA036L0085VF* 1Up to Unit Nos. 566H, & 568H to 574H, *?
Evaporating Loss PipingA079L6008V** 15m length, Unit Nos. 567H & 575H on, 100S on & *? 100T on, Inc.
Connection TubesA075U6080F** 1160mm length, Unit Nos. 567H & 575H on, 100S on & *? 100T on, Inc.
Bundy Pipe, ¼ O.D.A079L0164K** 1650mm length, Unit Nos. 567H & 575H on, 100S on & *? 100T on, Inc.
LA 20Inertia SwitchA075M6151FE** 1
LA 21Flowlock ValveB075E0127ZE* 1Up to Unit Nos. 566H & 568H to 574H *?
Flowlock ValveA079L4036F**1 Unit Nos. 313G, 567H, 575H on, 137 *? 100S an & 100T on, Inc.
Clamp, Flowlock ValveA079L4037F**1 Unit Nos. 313G, 567H, 575H on, 137 *? 100S an & 100T on, Inc.
