Esprit S1, S2, S2.2 PARTS MANUAL

Section LC -- Dellorto Carburettors

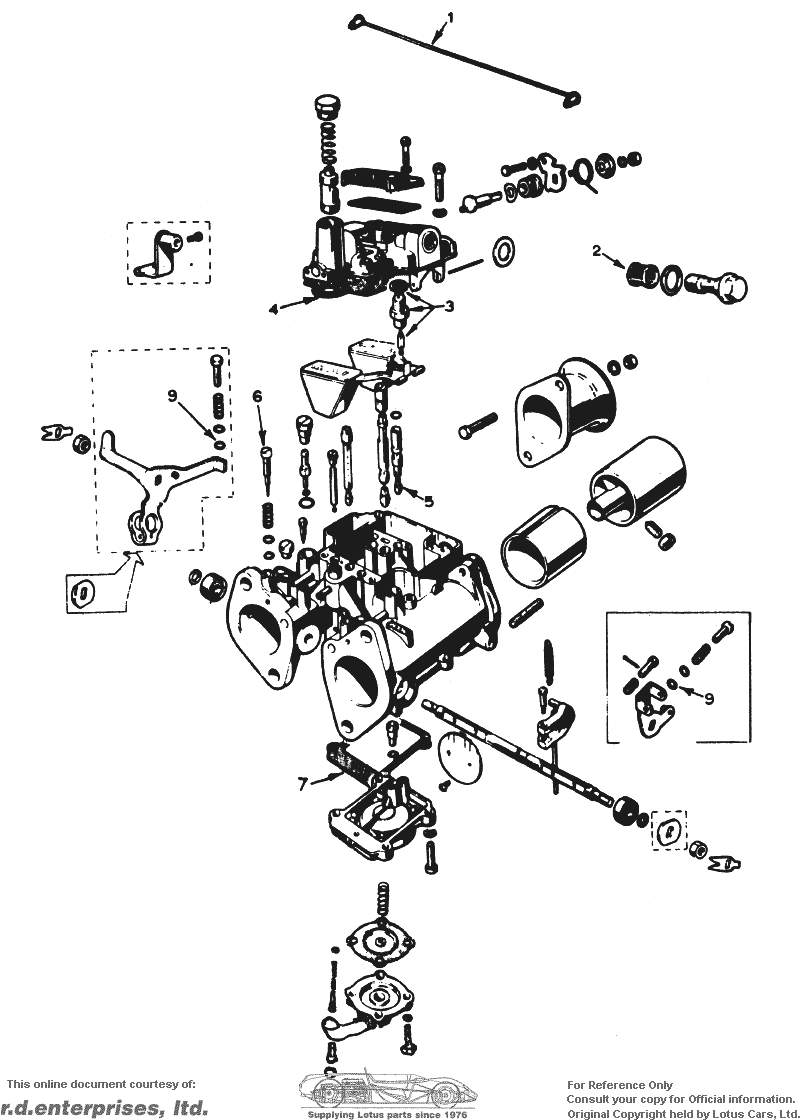

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
Carburettor, Dellorto, FrontE907E0789F** 11
Carburettor, Dellorto, RearE907E0790F** 11
Anti-Tamper AdaptorA907E1226F** 44 See Bulletin 1978/02.
Anti-Tamper PlugA907E1227F** 44 See Bulletin 1978/02.
Carburettor Earth LeadB079M4050F**1
Trunnion, Throttle LeverX026S0025ZG** 11
Choke CableA079S4008F** 11
Trunnion, Choke CableA074K6001ZC** 11
Screw, Trunnion, Choke CableA074K6002Z** 11
LC 1Link, ConnectingA907E6250Z** 11
LC 4Gasket, Float ChamberA036E6069ZD** 22
LC 6Screw, Idle MixtureA036E6097ZA** 44
"O" Ring, Screw, Idle MixtureA036E6096ZG** 44
LC 7Gasket, Pump BodyA036E6122ZG** 22
"O" Ring, Small, Pump JetA036E6100ZG** 44
"O" Ring, Large, Pump JetA036E6101ZA** 44
"O" Ring, Main Emulsion TubeA036E6107ZA** 44
Gasket, Needle ValveA036E6070ZJ** 22
LC 9Rubber Ring, Throttle ScrewsA036E6096ZG** 33
Aux. Venturi Screw & NutA907E6091ZB** 44
Banjo GasketB036E6085F** 22 Large I//D, Dowty Bonded Seals
Banjo GasketB036E6089F** 22 Small I/D, Dowty Bonded Seals
Throttle Return SpringA907E6195ZG** 11
Gasket KitA907E6091ZB** ARAR Comprising:
Float Chamber Gasket
Needle Valve Gasket
Jet Cover Gasket
Pump Jet Gasket
Pump Body Gasket
Choke, 36 mmA907E6276Z** 44
Main Jet, 160A907E6277Z** 44
LC 5Idle Jet, 50LA074E6026Z** 44
Pump Jet, 40H,/38VA907E6270FG** 44
Main Emulsion TubeA907E6278F** 44
Maln Air ConnectorA907E6279F** 44
Idle Jet HolderA907E6269F** 44
Accelerator Pump DiaphragmA907E6309F** 22
Starter Jet, 70A907E6280F** 44
Starter Emulsion TubeA907E6080Z** 44
Float AssyA907E6215Z** 44
LC 3Needle ValveA907E6082Z** 44
