ESPRIT S1, S2, S2.2 PARTS MANUAL

Introduction


SERVICE PARTS LIST

LOTUS CARS LIMITED.

Norwich. Norfolk. NR14 8EZ. England. Telex 97401.
Telephone: (0953) 608000 Telefax: (0953) 606884
Part No. A079T0325Z© Lotus Cars Ltd 1976

CONDITIONS OF SALE AND WARRANTY
We reserve the right to make changes or improvements in the construction or equipment of our products at any time. It is our general policy, however, to supply components to the latest specification.

DELIVERY
Any date quoted far delivery is an estimate and under no circumstances shall the Company be liable for delay in delivery, howsoever occurring.

PRICE
Goods purchased will be supplied at the price ruling at the date of delivery. Lotus Cars Limlted reserve the right to alter prices without previous notice. All prices are ex-factory, packing and carriage extra.

PAYMENT
Terms of payment are strictly CASH ON DELIVERY except where prior credit facilities have been arranged.

CORRESPONDENCE
All correspondence relating to parts must carry both the order number and the invoice number.

PART NUMBERS
Part numbers must always be quoted on correspondence, advice notes, invoices and parts order forms.

LIABILITY
The Company's liability is limited as set out below; any implied condition or warranty is hereby excluded, and the Company will not be liable in damages for any injury or loss, damage or expense howsoever incurred or arising in connection with goods ordered hereunder.

DAMAGED PARTS
Damage to received parts should be assumed to have occurred in transit, and claims should be made on the carriers and/or their insurance company. Parts will not be accepted for credit unless previously agreed. Carriage of parts returned will be at the purchaser's expense unless previously agreed.

VARIATION
No variation of these conditions or this Warranty shall be binding on the Company unless in writing signed by a Director on behalf of this Company.

1. The Company will during the Warranty period of SIX MONTHS at their sole option, repair or replace free of charge to the purchaser any part which in their opinion is defective owing to faulty workmanship or materials; the cost of labour is also covered but carriage charges incurred are not the Company's liability.

2. The Company's undertaking to repair or replace applies ONLY to parts of Lotus design, that is, parts manufactured by, or to the specification of one of the Lotus Group of Companies. The Company will be under no legal liability in respect OF parts not OF Lotus design but will, during the Warranty period, at the request of the purchaser (who shall reimburse the Company for any expense incurred) take reasonable steps to secure the repair or replacement by the manufacturer of any such part which may be defective.

All parts listed are available separately, although also shown as part of an assembly in the remarks column.

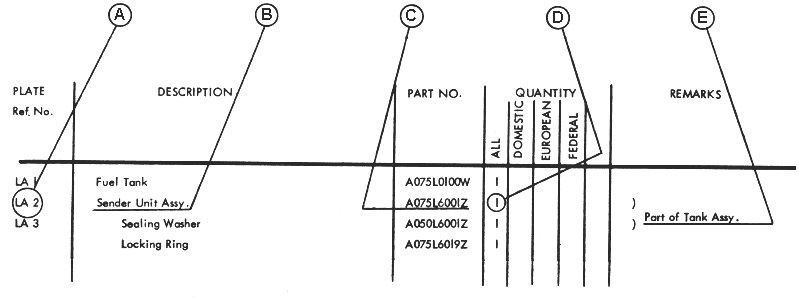

Example on use of Parts List

Example

    Part Required	-  	Fuel Sender Unit for Domestic Car.
    			    Section         	- 	L
                          	A - Plate Ref.No.	-	LA 2
                         	B - Description         -     	Sender Unit Asy.
                           	C - Part Number        	-   	A075L6001Z.
                           	D - Quantity           	-	1
                          	E - Remarks            	-	Part of Tank Assy.



    INDEX TO SECTIONS

    TITLE
    CONTENTS
    ACHASSISChassis
    BBODYBody Sections, Doors, Bonnet, Tailgate, Bumpers, Sills, Headlamp Pods, Exterior Trim, Badges and Glass.
    CFRONT SUSPENSIONExcluding Calipers
    DREAR SUSPENSIONIncluding Drive Shafts.
    EENGINEIncluding Engine Electrics. Not Carburetters or Exhaust.
    FGEARBOXExcept Bellhousing.
    GWHEELSWheels, Tyres and Trims.
    HSTEERINGRack and Pinion, Column and Steering Wheel.
    JBRAKESExcluding Discs.
    KCOOLINGRadiator, Hoses, Fan, and Fan Motor.
    LFUEL SYSTEMTank, Pipes, Carburetters and Evap. Loss System.
    MELECTRICSLights, Switches & Instruments.
    PHEATING/AIR CONDHeater, Air Conditioning Fan and Fan Motor.
    QCLUTCHClutch Plates, Release Mechanism and Bellhousing.
    RFINAL DRIVEDifferential and Propeller Shaft.
    SEXHAUSTIncluding Manifold.
    TTOOLSTools and Publications.
    VTRIMAll Internal Trim and Fitments.
