Esprit S1, S2, S2.2 Parts Manual -- Section VB

Esprit S1, S2, S2.2 PARTS MANUAL

Section VB -- Trim -- Dashboard & Glove Box

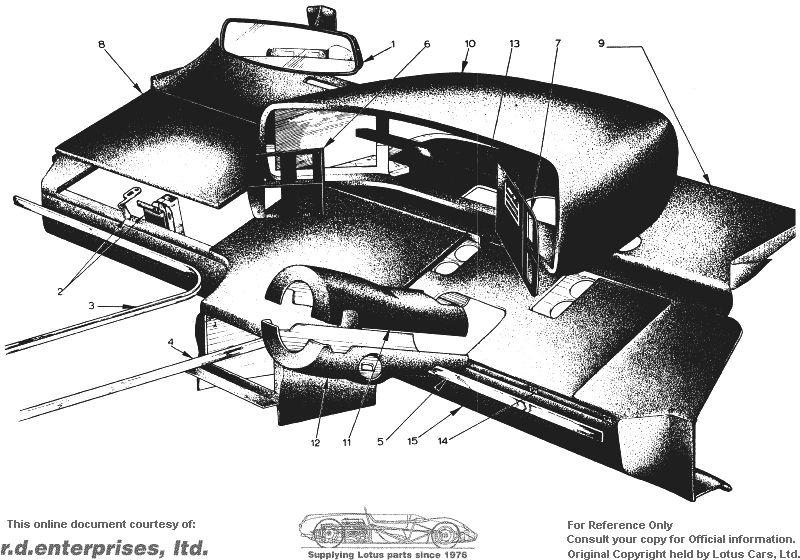

PLATE Ref. No.	DESCRIPTION	PART NO.							REMARKS
VB 1	Rear View Mirror, Interior	A079U6012F	*	*	1				Bonded to Windscreen
	Bonding Kit	A079U6045F	*	*	AR
	Rear Vlew Mirror, Interior	A079U6044F		*	1				Secured to Clock Mounting
	Bracket, Insh'ument Mounting	B079U4110K	*	*	1
	Bracket, Instrument Mounting	B079U4237K	*	*	1
	Clip, Instruments to Bracket	A079U6017F	*	*	6
	Clamp Assy, Bracket to Column	A079U6009F	*	*	1
	Bracket, Column to Inst. Bracket	A079LM232F	*	*	1
VB 2	"Tutch" Latch and Striker	X050B6150ZB	*	*	1
	Hinge, Cubby Box, RH	B079U4230F	*	*		1	1
	Hinge, Cubby Box, RH	A079U4436F	*	*				1
-	Hinge, Cubby Box, LH	B079U4233F	*	*		1	1
	Hinge, Cubby Box, LH	A079U4435F	*	*				1
	Cubby Box Inner, RHD	C079V4118F	*	*		1
	Cubby Box Inner, LHD	C079V4148F	*	*			1	1
VB 3	Bright Finisher, Facia/Tunnel, Pass.	A079U4167F	*	*		1
	Bright Finisher, Facia/Tunnel, Pass.	A079U4240F	*	*			1	1
VB 4	Bright Finisher, Facia/Tunnel, Driver	A079U4168F	*	*	1
	Bright Finisher, Facia/Tunnel, Driver	A079U4239F	*	*			1	1
VB 5	Bright Finisher, Facia, RH	A079U4170F	*	*		1
	Bright Finisher, Facla, LH	A079U4241F	*	*			1	1
VB 6	Switch Panel, LH	A079U4355F	*			1
	Switch Panel, LH	A079U4519F		*	1
	Switch Panel, LH	A079U4304F	*					1
VB 7	Switch Panel, RH	B079U4012F	*		1				Heater Cars
	Switch Panel, RH	A079U4524F		*	1
	Switch Panel, RH	A0791J4562		*	1				Air Cond. Cars
	Bracket, Lower Shroud to Facia	A079U4107K	*	*	1
VB 13	Finisher, Instrument Panel	A079U4347K	*	*	1
VB 14	Clip, Finisher, Facla/Tunnel	A079W6157F	*	*	18
	GREEN/TARTAN TRIM
VB 15	Facia Assy, Trimmed	A079V4046J	*			1
	Facia Assy, Trimmed	A079V4248J	*				1	1
	Facia Trim Cover Assy, LH	A079V4053J	*			1
	Facia Trim Cover Assy, RH	A079V4054J	*			1
	Facia Trim Cover Assy, Cen tre/Top	A079V4055J	*			1
	Facia Trim Cover Assy, LH	A079V4249J	*				1	1
	Facia Trim Cover Assy, RH	A079V4250J	*				1	1
	Facia Trim Cover Assy, Centre/Top	A079V4251J	*				1	1
	Facia Crash Pad Assy	A079V4173J	*					1
VB 8	Cubby Box Lid, Trimmed Assy	A079V4253J	*			1	1
	Trim Cover, Cubby Box Lid	A079V4255J	*			1	1
	Cubby Box Lid, Trimmed Assy	A079V4254J	*					1
	Trim Cover, Cubby Box Lid	A079V4256J	*					1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4262K	*		1
VB 10	Binnacle Assy, Trimmed	B079LM104J	*		1
	Trim Cover, Binnacle	A079V4257K	*		1
VB 11	Column Shroud, Upper	A079U4105K	*		1
VB 12	Column Shroud, Lower	A079U4106K	*		1
	BROWN MARCASITE TRIM OPTION
VB 15	Facia Assy, Trimmed RHD	A079V4368J	*	*		1			Heater Cars
	Facia Assy, Trimmed RHD	A079V4648J		*		1			Air Cond. Cars.
	Facia Assy, Trimmed LHD	A079V4369J	*	*			1	1	Heater Cars
	Facia Assy, Trimmed LHD	A079V464BJ		*			1	1	Air Cond Cars
	Facia Trim Cover Assy, LH	A079V4371J	*	*		1
	Facia Trim Cover Assy, RH	A079V4370J	*	*		1
	Facia Trim Cover Assy, Centre Top	A079V4372J	*	*		1
	Facia Trim Cover Assy, LH	A079V4375J	*	*			1	1
	Facia Trim Cover Assy, RH	A079V4376J	*	*			1	1
	Facia Trim Cover Assy, Centre Top	A079V4377J	*	*			1	1
	Facia Crash Pad Assy.	A079V4373J	*	*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4378J	*	*		1	1
	Trim Cover, Cubby Box Lid	A079V4380K	*	*		1	1
	Cubby Box Lid, Trimmed Assy.	A079V4379J	*	*				1
	Trim Cover, Cubby Box Lid	A079V4381K	*	*				1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4382K	*	*	1
VB 10	Binnacle Assy, Trlmmed	A079V4385J	*		1
	Binnacle Assy, Trimmed	A079U4555J		*	1
	Trim Cover, Binnacle	A079V4386J	*	*	1
VB 11	Column Shroud, Upper	A079V4387K	*	*	1
VB 12	Column Shroud, Lower	A079V4388K	*	*	1
VB 15	Facia Assy, Trimmed, RHD	A079V4298J	*	*		1			Heater Cars
	Facia Assy, Trimmed, RHD	A079V4682J	*	*		1			Air Cord Cars.
	Facia Assy, Tri mined LHD	A079V4299J	*	*			1	1	Heater Cars
	Facia Assy, Trimmed LHD	A079V4681J	*	*			1	1	Air Cond. Cars.
	Facia Trim Cover Assy, LH	A079V4300J	*	*		1
	Facia Trim Cover Assy, RH	A079V430IJ	*	*		1
	Facia Trim Cover Assy, Centre Top	A079V4302J	*	*		1
	Facia Trim Cover Assy, LH	A079V4305J	*	*			1	1
	Facia Trim CoverAssy, RH	A079V4306J	*	*			1	1
	Facia Trim Cover Assy, Centre Top	A079V4307J	*	*			1	1
	Facia Crash Pad Assy.	A079V4303J	*	*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4308J	*	*		1	1
	Trim Cover, Cubby Box Lid	A079V4310J	*	*		1	1
	Cubby Box Lid, Trimmed Assy.	A079V4309J	*	*				1
	Trim Cover, Cubby Box Lid	A079V4311J	*	*				1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4262K	*	*	1
VB 10	Binnacle Assy, Trimmed	B079U40I4J	*		1
	Binnacle Assy, Trlmmed	A079U4556J		*	1
	Trim Cover, Binnacle	A079V4257K	*	*	1
VB 11	Column Shroud, Upper	A079U4105K	*	*	1
VB 12	Column Shroud, Lower	A079U4106K	*	*	1
	LEATHER TRIM, BEIGE VM3234 LUXAN
VB 15	Facia Assy, Trimmed, RHD	AG79V4368J	*	*		1			Heater Cars
	Facia Assy, Trimmed, RHD	A079V4648J		*		1			Air Cond.Cars.
	Facia Assy, Trimmed LHD	A079V4369J	*	*			1	1	Heater Cars.
	Facia Assy, Trimmed, LHD	A079V4647J		*			1	1	Air Cond.Cars.
	Facia Trim Cover Assy, LH	A079V4371J	*	*		1
	Facia Trim Cover Assy, RH	A079V4370J	*	*		1
	Facia Trim Cover Assy, Centre Top	A079V4372J	*	*		1
	Facia Trim Cover Assy, LH	A079V4375J	*	*			1	1
	Facia Trim Cover Assy, RH	A079V4376J	*	*			1	1
	Facia Trim Cover Assy Centre Top	A079V4377J	*	*			1	1
	Facia Crash Pad Assy.	A079V4373J	*	*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4378J	*	*		1	1
	Trim Cover, Cubby Box Lid	A079V4380J	*	*		1	1
	Cubby Box Lid, Trimmed Assy.	A079V4379J	*	*				1
	Trim Cover, Cubby Box Lid	A079V4381J	*	*				1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4382K	*	*	1
VB 10	Binnacle Assy, Trimmed	A079V4385J	*		1
	Binnacle Assy, Trimmed	A079U4555J		*	1
	Trim Cover, Binnacle	A079V4386J	*	*	1
VB 11	Column Shroud, Upper	A079V4387K	*	*	1
VB 12	Column Shroud, Lower	A079V4388K	*	*	1
	LEATHER TRIM, RED VM3086 CRUSHED
VB 15	Facia Assy, Trimmed RHD	A079V4536J		*		1			Heater Cars
	Facia Assy, Trimmed RHD	A079V4664J		*		1			Air Cond. Cars
	Facia Assy, Trimmed LHD	A079V4537J		*			1	1	Heater Cars
	Facia Assy, Trimmed LHD	A079V4665J		*			1	1	Air Cond. Cars
	Facia Trim Cover Assy, LH	A079V4539J		*		1
	Facia Trim Cover Assy, RH	A079V4538J		*		1
	Facia Trim Cover Assy, Centre Top	A079V4540J		*		1
	Facia Trim Cover Assy, LH	A079V4543J		*			1	1
	Facia Trim Cover Assy, RH	A079V4544J		*			1	1
	Facia Trim Cover Assy, Centre Top	A079V4565J		*			1	1
	Facia Crash Pad Assy.	A079V4541J		*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4546J		*		1	1
	Trim Cover, Cubby Box Lid	A079V4548K		*		1	1
	Cubby Box Lid, Trimmed Assy.	A079V4547J		*				1
	Trim Cover, Cubby Box Lid	A079V4549K		*				1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4550K		*	1
VB 10	Binnacle Assy, Trimmed	A079V4553J		*	1
	Trim Cover, Binnacle	A079V4554K		*	1
VB 11	Column Shroud, Upper	A079V4555K		*	1
	Column Shroud, Lower	A079V4556K		*	1
	LEATHER TRIM, BLACK,CR VM8500D
VB 15	Facia Assy, Trimmed RHD	A079V4298J		*		1			Heater Cars
	Facia Assy, Trimmed RHD	A079V4682J		*		1			Air Cond. Cars.
	Facia Assy, Trimmed LHD	A079V4299J		*			1	1	Heater Cars
	Facia Assy, Trimmed LHD	A079V4681J		*			1	1	Air Cond. Cars.
	Facia Trim Cover Assy LH	A079V4300J		*		1
	Facia Trim Cover Assy, RH	A079V430IJ		*		1
	Facia Trim Cover Assy, Centre Top	A079V4302J		*		1
	Facia Trim Cover Assy, LH	A079V430SJ		*			1	1
	Facia Trim Cover Assy, RH	A079V4306J		*			1	1
	Facia Trim Cover Assy, Centre Top	A079V4307J		*			1	1
	Facia Crash Pad Assy.	A079V4303J		*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4308J		*				1
	Trim Cover, Cubby Box Lid	A079V4310K		*		1	1
	Cubby Box Lid, Trimmed Assy.	A079V4309J		*		1	1
	Trim Cover, Cubby Box Lid	A079V4311J		*				1
VB 9	Trim Cover, Screen Landing & Scuttle	A079V4262J		*				1
VB 10	Binnacle Assy, Trimmed	A079U4556J		*	1
	Trim Cover, Binnacle	A079V4257K		*	1
VB 11	Column Shroud, Upper	A079U410SK		*	1
	Column Shroud, Lower	A079U4106K		*	1
	Leather Trim, Beige VM3234 Luxan/Brown VM890
VB 15	Facia Assy, Trimmed, LHD	A079V4754J		*				1
	Facia Trim Cover Assy, LH	A079V4739K		*				1
	Facia Trim Cover Assy, RH	A079V4738K		*				1
	Facia Trim Cover Assy, Centre Top	A079V4377J		*				1
	Facia Crash Pad Assy.	A079V4755J		*				1
VB 8	Cubby Box Lid, Trimmed Assy.	A079V4756J		*				1
	Trim Cover, Cubby Box Lid	A079V4741K		*				1
VB 9	Trim Covert Screen Landing and Scuttle	A079V4737K		*				1
VB 10	Binnacle Assy, Trimmed	A079V4766J		*				1
	Trim Cover, Binnacle	A079V4767K		*				1
VB 11	Column Shroud, Upper	A079V4757J		*				1
VB 12	Column Shroud, Lower	A079V4758J		*				1
