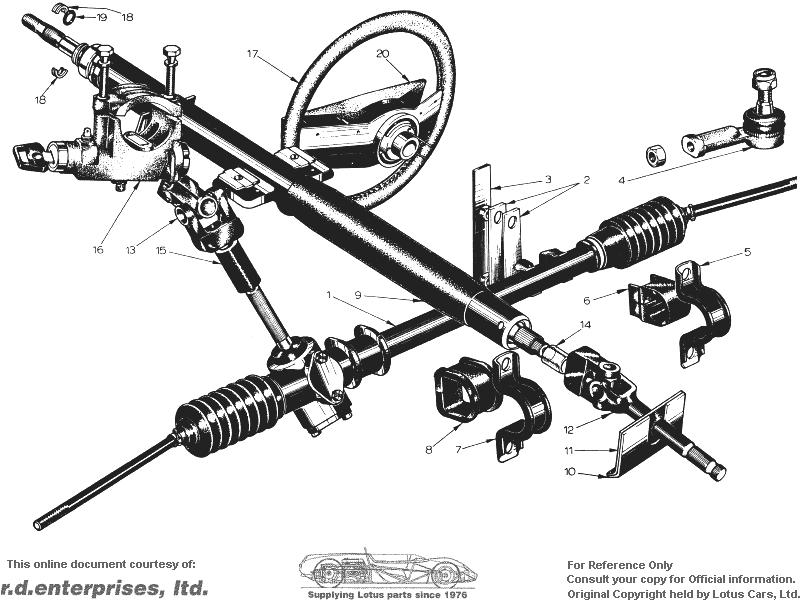

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| HA 1 | Steering Rack Assy, RHD | A079H4001F | * | * | | 1 | | | |
| Steering Rack Assy, LHD | A079H4007F | * | * | | | 1 | 1 | |
| Bellows, C/W Clips, Pinion End | A075H6021ZJ | * | * | 1 | | | | |
| Bellows, C/W Clips, Non Pinion End | 075H6022ZC | * | * | 1 | | | | |
| HA 2 | Shims | A079H4006K | * | * | 2 | | | | |
| HA 3 | Topping Plate, Rack Mounting | A079H4004K | * | * | 1 | | | | |
| HA 4 | Ball Joint, Rack/Steering Arm | A075H6001ZH | * | * | 2 | | | | |
| Locknut | A075W3017ZA | * | * | 2 | | | | |
| HA 5 | Clamp, Rack Mounting, Non Pinion End | A007H4104ZJ | * | * | 1 | | | | |
| HA 6 | Rubber Bush, Clamp, Non Pinion End | A007H4103ZD | * | * | 1 | | | | |
| HA 7 | Clamp, RackMountlng, Pinion End | A007H4105ZC | * | * | 1 | | | | |
| HA 8 | Rubber Bush, Clamp, Pinion End | A007H4106ZH | * | * | 1 | | | | |
| Screw | A075W1038ZB | * | * | 4 | | | | |
| Washer | A075W4036ZE | * | * | 4 | | | | |
| HA 9 | Steering Column Assy | A079H6006F | * | * | 1 | | | | Replaces A079H6000F |
| HA 10 | Seal Plate, Steering Column, RHD | A079U4332F | * | * | | 1 | | | |
| Seal Plate, Steering Column, LHD | A079U4331F | * | * | | | 1 | 1 | |
| HA 11 | Gasket, Seal Plate | A079U4325F | * | * | 1 | | | | |
| HA 12 | Intermediate Steering Column Assy | A079H4002F | * | * | 1 | | | | Top U/J is part of Assy. |
| HA 13 | Universal Joint, Intermed. Steering Col. | A075H6009ZD | * | * | 1 | | | | |
| HA 14 | Spllne Protector, Steering Column | A079H4010K | * | * | 1 | | | | |
| HA 15 | Spllne Protector, Steering Rack | A079H4011K | * | * | 1 | | | | |
| Castrol Red, Rubber Grease | A000Z1029Z | * | * | AR | | | | |
| Bolt, 8mm x 35mm | A075W2033Z | * | * | 3 | | | | Inter. Shaft to Column and Rack |
| Nut, Nyloc, 8mm | A075W3010ZK | * | * | 3 | | | | |
| Washer | A075W4020ZB | * | * | 3 | | | | |
| HA 16 | Steering Column Lock, c/w )gn. Switch | A079H6001F | * | * | | 1 | | | |
| Steering Column Lock, c/w Ign. Switch | A079H6004F | * | * | | | 1 | 1 | |
| Shear Bolt, Lock to Column | A079H6008F | * | * | 2 | | | | |
| HA 17 | Steering Wheel, Black Rim | E079H4000F | * | * | 1 | | | | Indicator Cancel Roll Pins - 3mm x 38m |
| HA 17 | Steering Wheel, Brown Rim | B079H4009F | * | * | 1 | | | | |
| Nut, Steering Wheel | A075W3018Z | * | * | 1 | | | | |
| Washer | A075W4008Z | * | * | 2 | | | | |
| HA 18 | Collet, Steering Column | B079H4005H | * | * | 2 | | | | |
| HA 19 | 'O' Ring | A079H6003F | * | * | 1 | | | | |
| HA 20 | Crash Pad, Steering Wheel | B079H4003F | * | * | 1 | | | | |
| Bush, Crash Pad Fixing | A079H600ZF | * | * | 8 | | | | |
