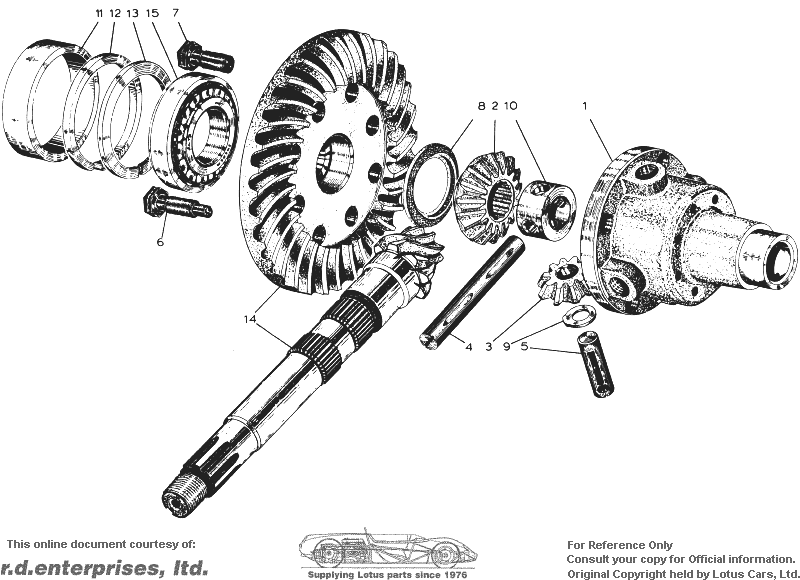

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| FF 1 | Housing | A079F6231F | * | * | 1 | | | | |
| FF 2 | Planet wheel | A079F6232F | * | * | 2 | | | | |
| FF 3 | Satellite wheel | A079F6233F | * | * | 4 | | | | |
| FF 4 | Satellite spindle, long | A079F6234F | * | * | 1 | | | | |
| FF 5 | Satellite spindle, short | A079F6235F | * | * | 2 | | | | |
| FF 6 | Locking screw, satellite wheel | A079F6237F | * | * | 3 | | | | |
| FF 7 | Locking screw, crown wheel | A079F6238F | * | * | 4 | | | | |
| FF 8 | Planet wheel washer 1.52 | A079F6239F | * | * | 5 | | | | Alternatives |
| Planet wheel washer 1.58 | A079F6240F | * | * | 1 | | | | Alternatives |
| Planet wheel washer 1.64 | A079F6241F | * | * | 1 | | | | Alternatives |
| Planet wheel washer 1.70 | A079F6242F | * | * | 1 | | | | Alternatives |
| Planet wheel washer 1.76 | A079F6243F | * | * | 1 | | | | Alternatives |
| Planet wheel washer 1.82 | A079F6244F | * | * | 1 | | | | Alternatives |
| FF 9 | Satellite gear washer 1.535 | A079F6245F | * | * | 1 | | | | Alternatives |
| Satellite gear washer 1.615 | A079F6246F | * | * | 1 | | | | Alternatives |
| Satellite gear washer 1.695 | A079F6247F | * | * | 1 | | | | Alternatives |
| Satellite gear washer 1.775 | A079F6248F | * | * | 1 | | | | Alternatives |
| FF 10 | Crosshead bush | A079F6236F | * | * | 1 | | | | |
| FF 11 | Spacer | A079F6249F | * | * | 1 | | | | Alternatives |
| FF 12 | Spacer, 2.9 | A079F6250F | * | * | 1 | | | | Alternatives |
| Spacer, 3.3 | A079F6251F | * | * | 1 | | | | Alternatives |
| Spacer, 3.7 | A079F6252F | * | * | 1 | | | | Alternatives |
| Spacer, 4.1 | A079F6253F | * | * | 1 | | | | Alternatives |
| Spacer, 4.5 | A079F6254F | * | * | 1 | | | | Alternatives |
| Spacer, 4.9 | A079F6255F | * | * | 1 | | | | Alternatives |
| Spacer, 5.3 | A079F6256F | * | * | 1 | | | | Alternatives |
| Spacer, 5.7 | A079F6257F | * | * | 1 | | | | Alternatives |
| FF 13 | Adiusting washer, 3.00 | A079F6259F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.05 | A079F6260F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.10 | A079F6261F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.15 | A079F6262F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.20 | A079F6263F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.25 | A079F6264F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.50 | A079F6265F | * | * | 1 | | | | Alternatives |
| Adjusting washer, 3.55 | A079F6266F | * | * | 1 | | | | Alternatives |
| FF 14 | Crown wheel & pinion | A079F6267F | * | * | 1 | | | | |
| FF 15 | Roller bearing | A079F6258F | * | * | 2 | | | | |
