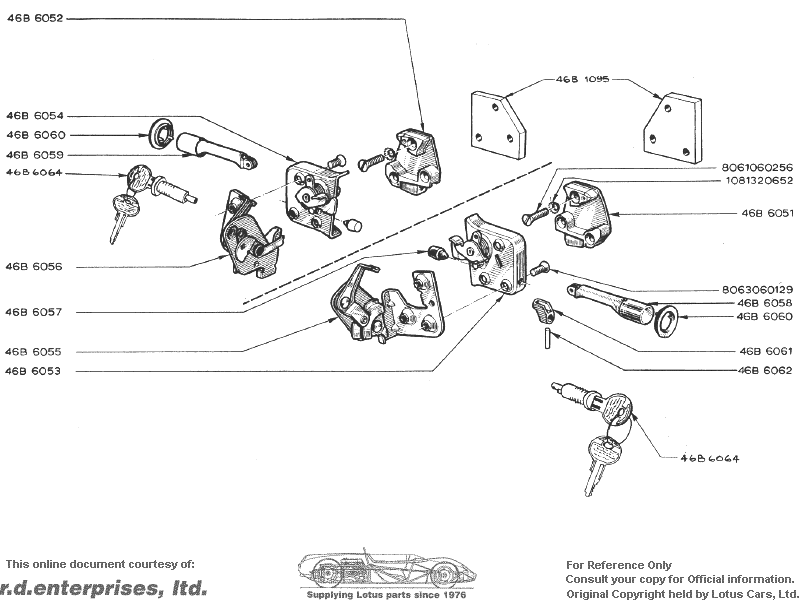

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46B6052 | 46B6052 | 1 | 1 | Catch Plate RH | |||||||||
| 46B6054 | 46B6054 | 1 | 1 | Door Lock Striker RH | |||||||||
| 46B6060 | 46B6060 | 2 | 2 | Escutcheon | |||||||||
| 46B6059 | 46B6059 | 1 | 1 | Push Button RH | |||||||||
| 46B6064 | 46B6064 | 2 | 2 | Lock Barrel | |||||||||
| 46B6056 | 46B6056 | 1 | 1 | Door Lock RH | |||||||||
| 46B6057 | 46B6057 | Name Not Specified | |||||||||||
| 46B6055 | 46B6055 | 1 | 1 | Door Lock LH | |||||||||
| 46B6053 | 46B6053 | 1 | 1 | Door Lock Striker LH | |||||||||
| 46B6062 | 46B6062 | 2 | 2 | Tension Pin | |||||||||
| 46B6061 | 46B6061 | 2 | 2 | Lock Tab | |||||||||
| 46B6058 | 46B6058 | 1 | 1 | Push Button LH | |||||||||
| 806306129 | 806306129 | 6 | 6 | Bolt - Door Lock Striker to Door Lock | |||||||||
| 46B6051 | 46B6051 | 1 | 1 | Catch Plate LH | |||||||||
| 1081320652 | 1081320652 | 6 | 6 | Washer - Star | Countersunk | ||||||||
| 8061060256 | 8061060256 | 6 | 6 | Bolt - Cross Point Countersunk | 13/16" long all thread, 1/4" x 28 TPI | ||||||||
| 46B1095 | 46B1095 | 2 | 2 | Tapping Plate |
