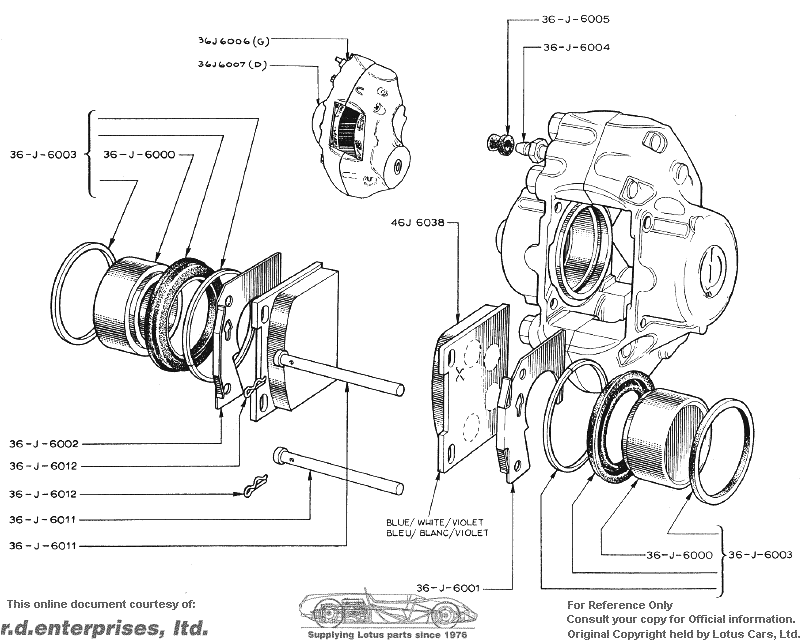

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 36J6003 | 36J6003 | Repair Kit - Front Caliper (As Required) | |||||||||||
| 36J6000 | 36J6000 | 4 | 4 | Piston | |||||||||
| 36J6002 | 36J6002 | 2 | 2 | Brake Pad Shim | |||||||||
| 36J6012 | 36J6012 | 4 | 4 | Clip - Pad Retaining | |||||||||
| 36J6011 | 36J6011 | 4 | 4 | Pin - Pad Retaining | |||||||||
| 36J6006(G) | 36J6006(G) | 1 | 1 | Brake Caliper - L/H (Less Pads) | |||||||||
| 36J6007(D) | 36J6007(D) | 1 | 1 | Brake Caliper - R/H (Less Pads) | |||||||||
| 46J6038 | 46J6038 | 1 | 1 | Brake Pad Set | |||||||||
| 36J6005 | 36J6005 | 2 | 2 | Dust Cover - Bleed Screw | |||||||||
| 36J6004 | 36J6004 | 2 | 2 | Bleed Screw | |||||||||
| 36J6001 | 36J6001 | 2 | 2 | Brake Pad Shim |
