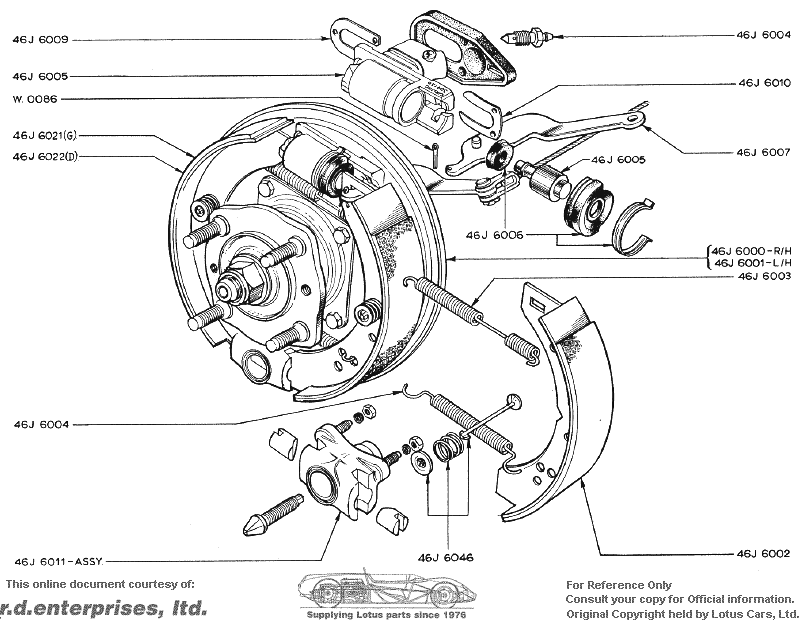

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46J6009 | 46J6009 | 2 | 2 | Retaining Plate | |||||||||
| 46J6005 | 46J6005 | 2 | Wheel Cylinder (Brake Cylinder) | ||||||||||
| W0086 | W0086 | 2 | 2 | Split Pin | |||||||||
| 46J6021(G) | 46J6021(G) | 1 | 1 | Rear Brake Assembly L/H | |||||||||
| 46J6022(D) | 46J6022(D) | 1 | 1 | Rear Brake Assembly R/H | |||||||||
| 46J6004 | 46J6004 | 2 | 2 | Return Spring - Lower | |||||||||
| 46J6011 | 46J6011 | 2 | 2 | Adjuster Assembly - Brake Shoe | |||||||||
| 46J6010 | 46J6010 | 2 | 2 | Locking Plate | |||||||||
| 46J6007 | 46J6007 | 2 | 2 | Lever - Handbrake | |||||||||
| 46J6000 | 46J6000 | 1 | 1 | Backplate LH | |||||||||
| 46J6001 | 46J6001 | 1 | 1 | Backplate RH | |||||||||
| 46J6003 | 46J6003 | 2 | 2 | Return Spring - Upper | |||||||||
| 46J6002 | 46J6002 | 4 | 4 | Brake Shoe | |||||||||
| 46J6046 | 46J6046 | 4 | 4 | Steady Rest | |||||||||
| 46J6006 | 46J6006 | 4 | 4 | Repair Kit - Wheel Cylinder (As Required) |
